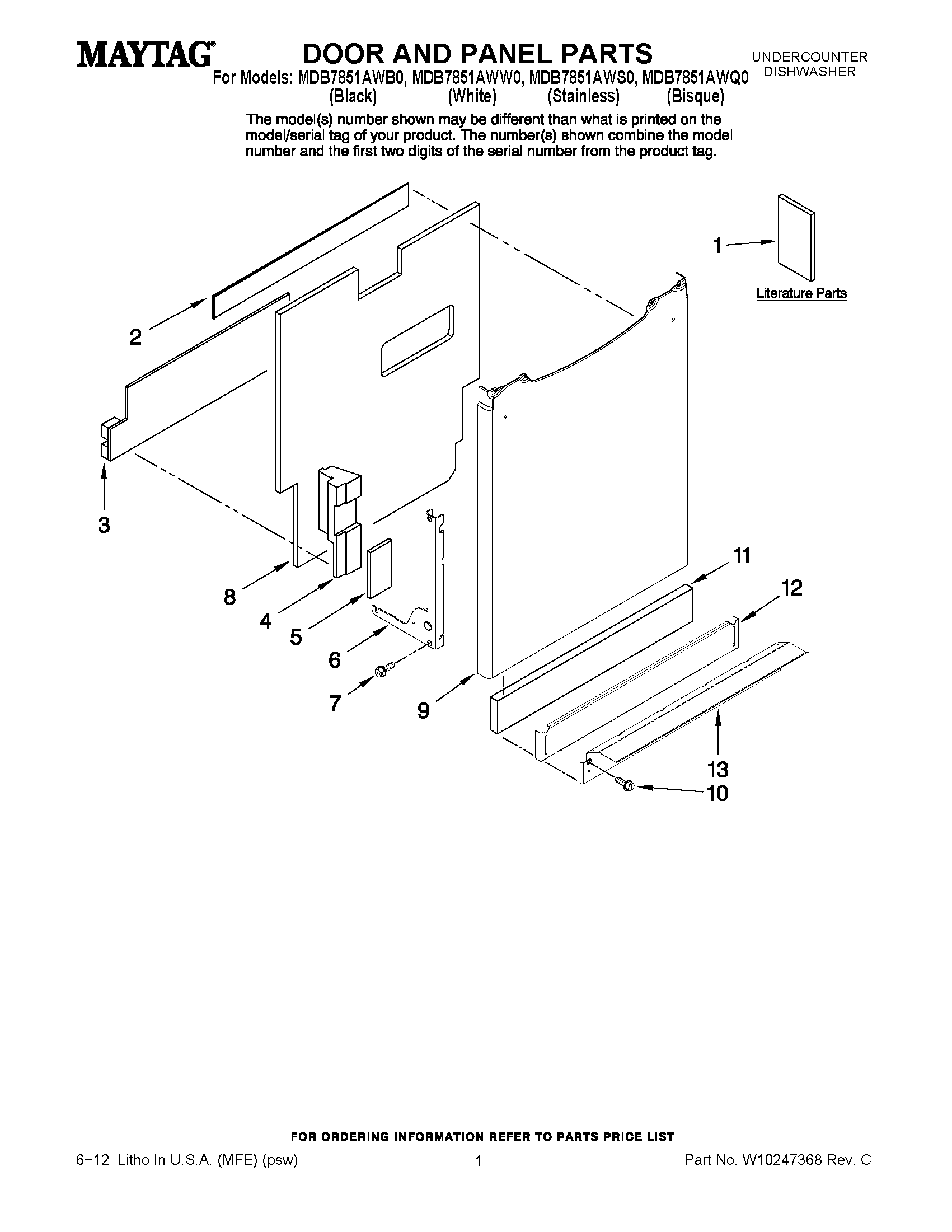

MDB7851AWQ0 01 – DOOR AND PANEL PARTS

MDB7851AWQ0 01 – DOOR AND PANEL PARTS

Written by

in

MDB7851AWQ0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10208037
1MAY W10158012
1MAY W10157791
2DAMPER (2“ X 20“)
3MAY 99003048
4MAY 99003047
4MAY 99003046
5MAY 99003049
6MAY W10118638
6MAY W10118637
7MAY 99001075
8MAY 99003044
9PANEL, DECO (W/DAMPER-BLK)
9MAY 99002771
9MAY 99002770
9MAY 99002769
10MAY 99002114
10WP6-912366 Whirlpool Dishwasher Screw
10SCREW, ACCESS PANEL
11MAY 6-920587
12MAY 99002767
12PANEL, TOE (W/DAMPER-BLK)
12MAY 99002766
13SUPPORT, FRONT (W/SEALS)(BLK)
13SUPPORT, FRONT (W/SEALS)(WHT)
13MAY 99002592
