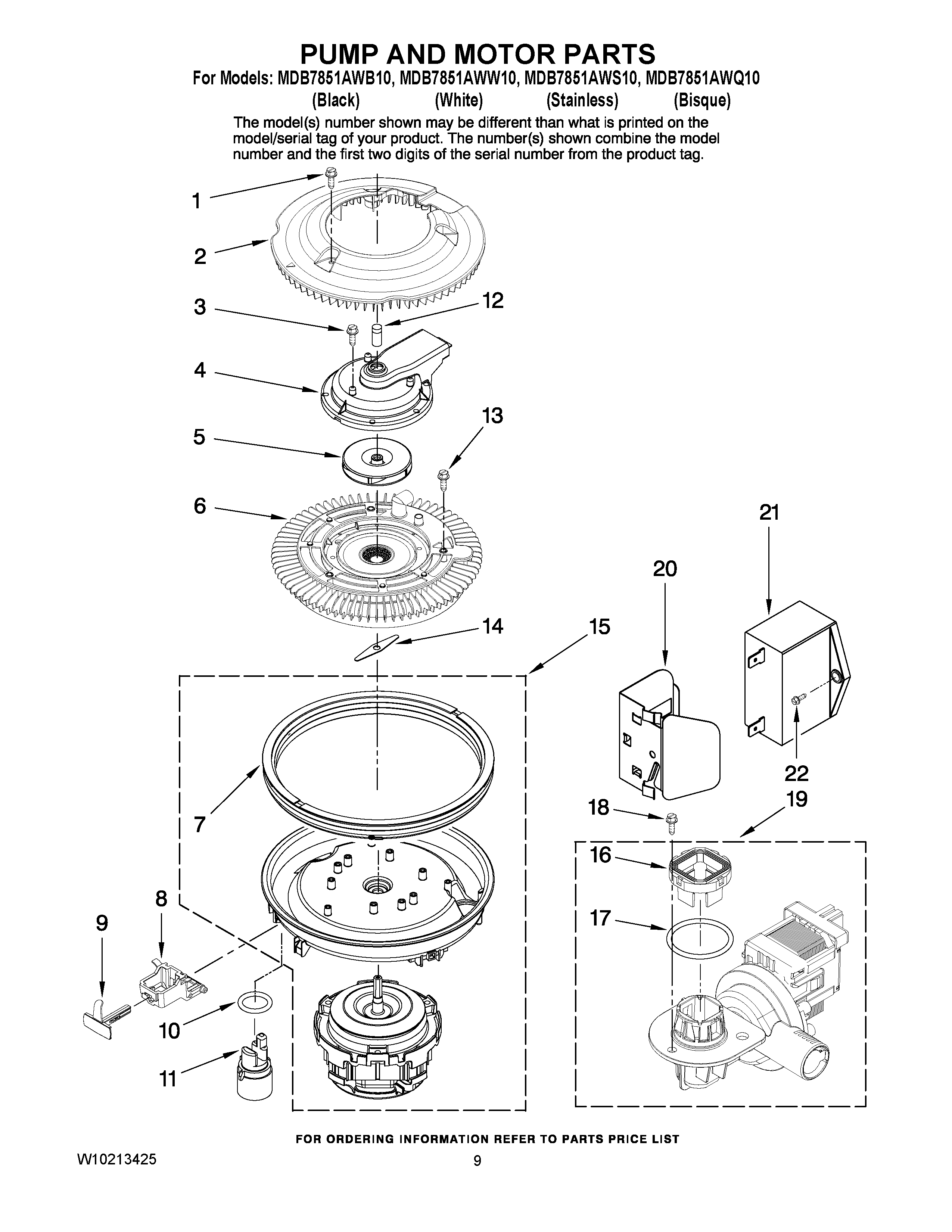

MDB7851AWW10 08 – PUMP AND MOTOR PARTS

MDB7851AWW10 08 – PUMP AND MOTOR PARTS

Written by

in

MDB7851AWW10 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2GUARD, FILTER (DARK GREY)
3SCREW, STAINLESS PAN HEAD
4DISCHARGE HOUSING ASSY (UPR)
5WP99002659 Whirlpool Impeller
6MAY W10142623
712002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8MAY 99003056
9MAY 99003057
1099002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11MAY W10120019
12MAY 99003697
13SCREW, DISCHARGE HOUSING
14MAY 99003427
15MAY 6-919963
15WASH MOTOR ASSY SEAL NOT INCL
16MAY 99003309
17MAY 99002857
18SCREW, TRUSS HEAD (10-18X.75)
19MAY W10119816
20MAY W10167912
21CAPACITOR, MOTOR
22SCREW 10-32X.400 (T-20 HEAD)
