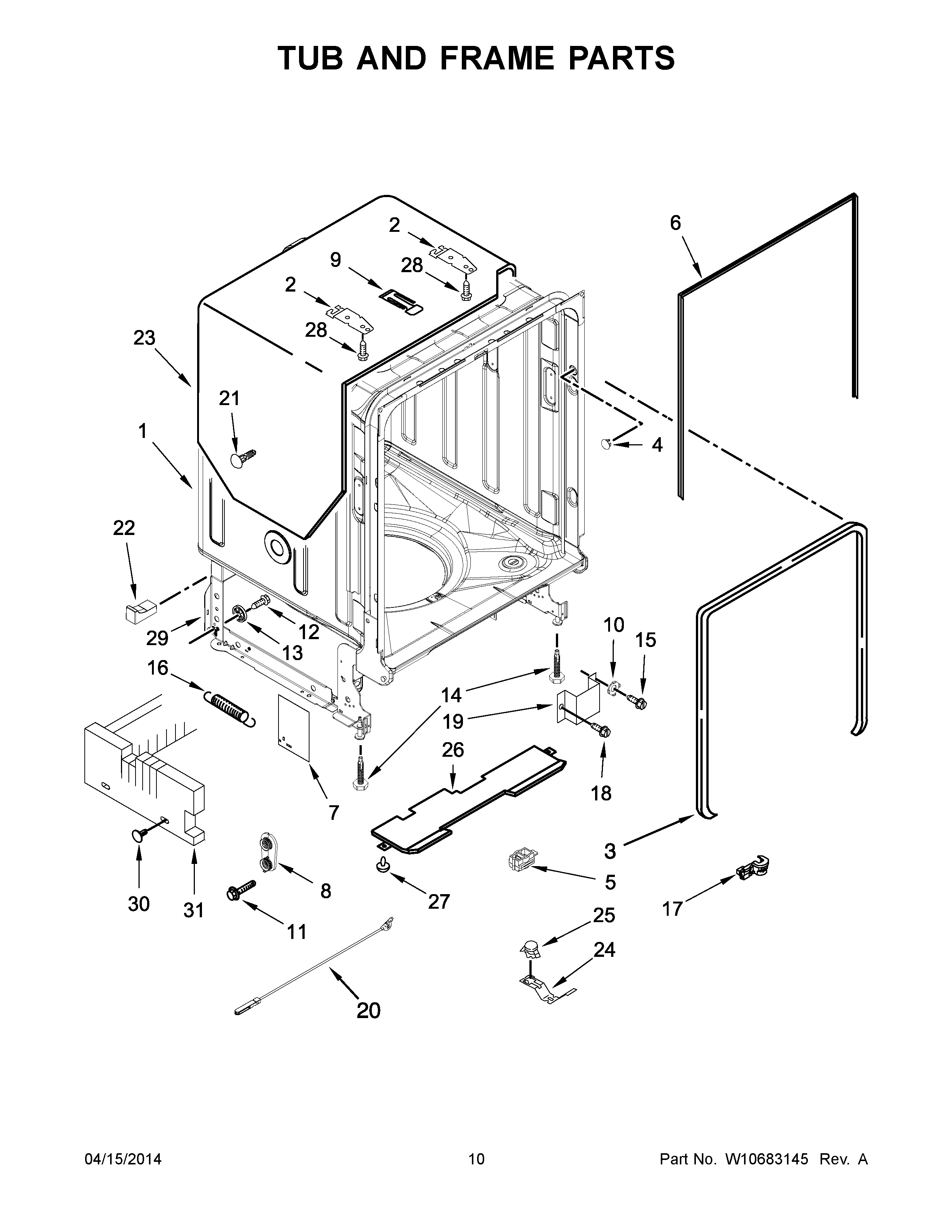

MDB7949SDE0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10511208
2MAY 8269145
3SEAL, DOOR
4MAY W10082838
5MAY W10292870
6SEAL, CABINET
7MAY W10609495
8DOOR BALANCE ASSEMBLY
9STRIKE, LATCH
10WASHER, PRONGED CUP
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15MAY 3400014
16MAY 8270020
17MAY W10337661
18MAY 3400892
19MAY 8268991
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22SPACER, TUB/BRACE (RIGHT)
22SPACER, TUB/BRACE (LEFT)
23MAY 8573239
24MAY W10300703
25MAY W10195091
26INSULATION BOTTOM
27MAY 3400924
28MAY 3367670
29MAY W10190776
30RETAINER
31MAY W10380052
