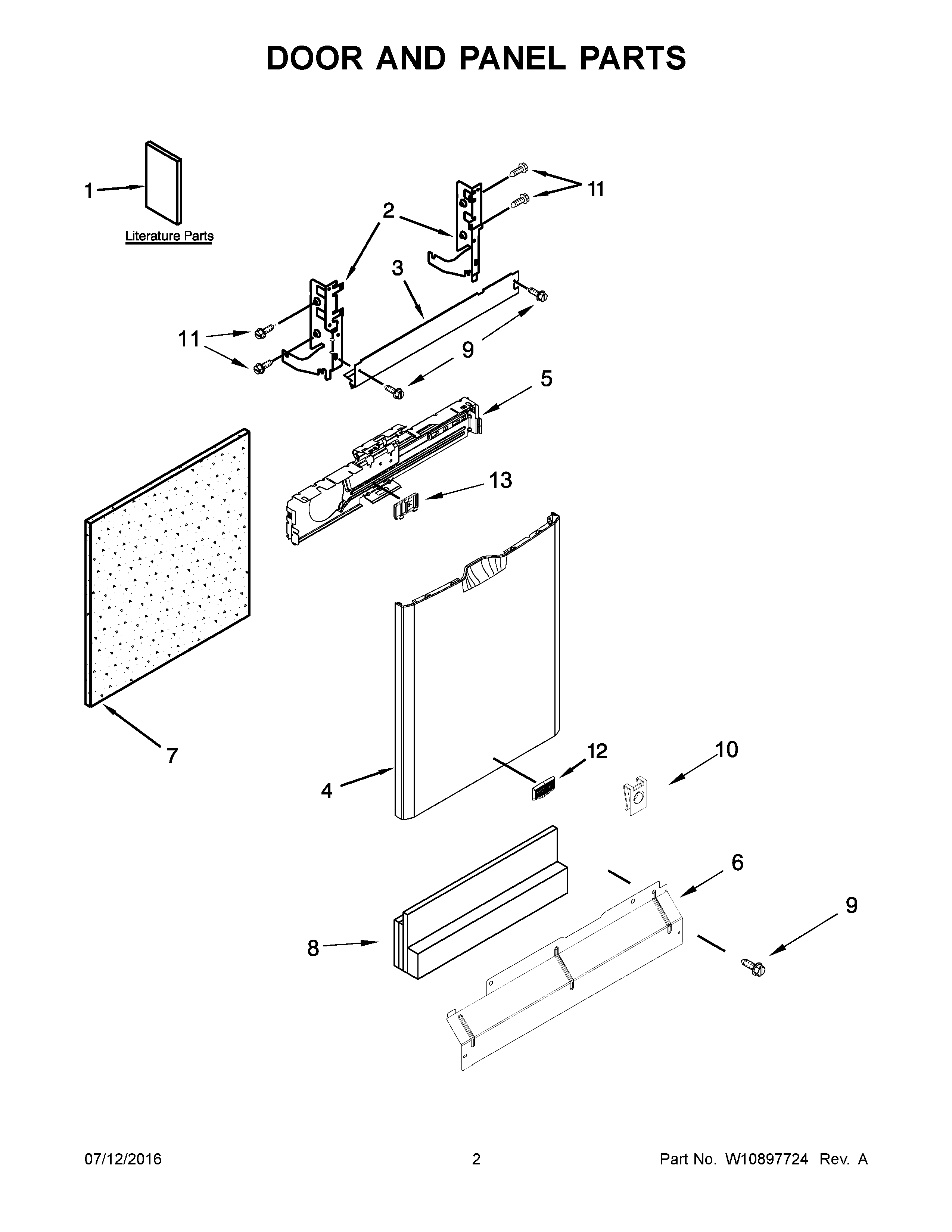

MDB7949SDE3 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	MAY W10810681
1	MAY W10741197
1B	MAY W10832285
1C	MAY W10867183
1D	MAY W10867186
2	MAY 8534854
2A	MAY 8534853
3	BARRIER, VAPOR
4B	MAY W10562114
4	MAY W10562110
4A	MAY W10562111
5	MAY W10641745
6	ACCESS PANEL (BLACK)
6A	MAY W10852732
7	INSULATION, FRONT PANEL
8	MAY W10526105
9	SCREW (BLACK)
9A	WP3400836 Whirlpool Dishwasher Screw
10	U-NUT
11	SCREW
12	BADGE
13	MAY W10463662
