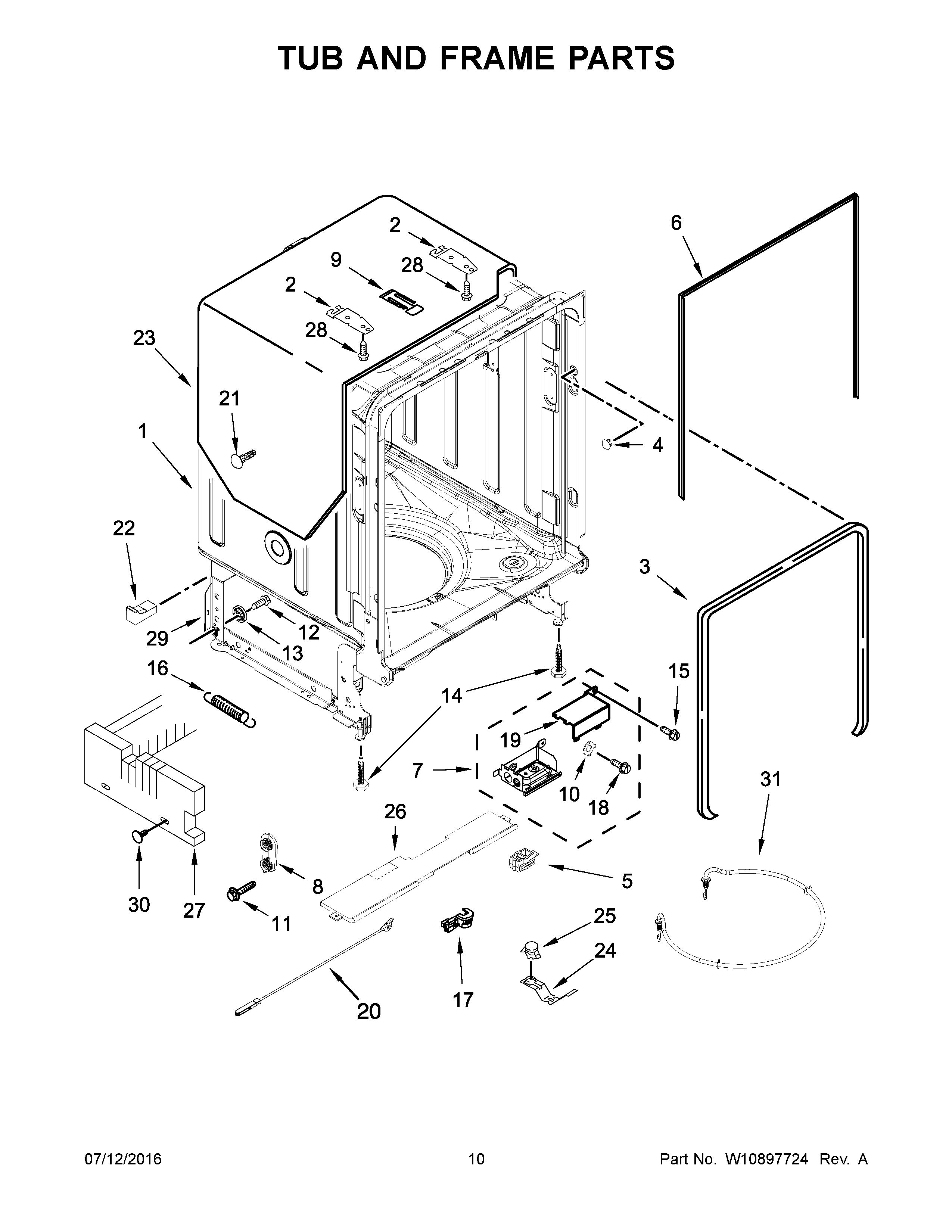

MDB7949SDE3 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681492
2MAY 8269145
3SEAL, DOOR
4PLUG, TUB
5MAY W10292870
6SEAL, CABINET
7ASSEMBLY, TERMINAL BOX
8DOOR BALANCE ASSEMBLY
9STRIKE, LATCH
10WASHER, PRONGED CUP
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15Screw
16MAY 8270020
17MAY W10337661
18MAY 3400014
19COVER, TERMINAL BOX
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22ASPACER, TUB/BRACE (RIGHT)
22SPACER, TUB/BRACE (LEFT)
23SHIELD, TUB SOUND
24MAY W10300703
25MAY W10195091
26SOUND INSULATION, BOTTOM
27INSULATION, U-WRAP
28MAY 3367670
29SUPPORT ASSEMBLY, REAR
30RETAINER
31HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
