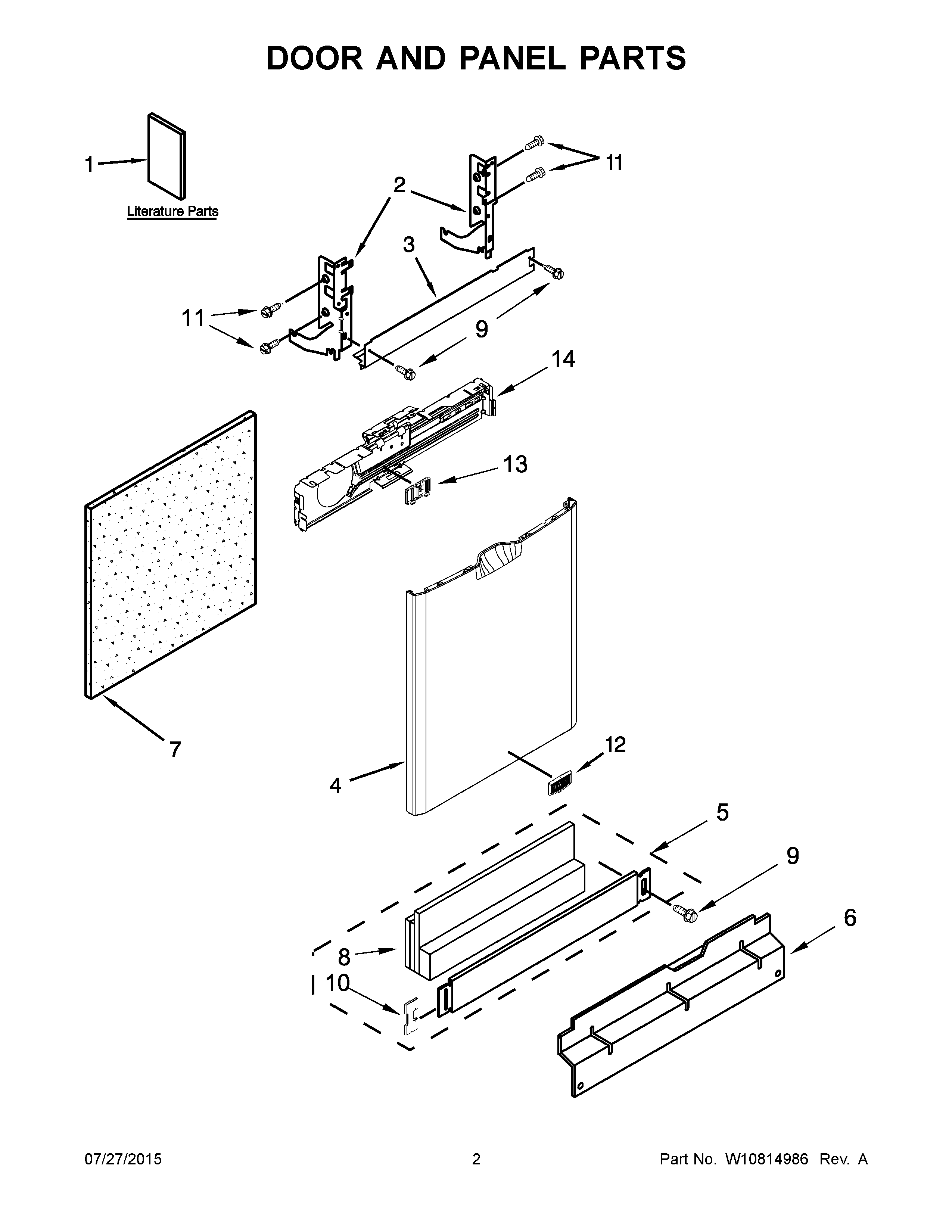

MDB7949SDH2 02 – DOOR AND PANEL PARTS

MDB7949SDH2 02 – DOOR AND PANEL PARTS

Written by

in

MDB7949SDH2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BMAY W10599529
1DMAY W10751165
1CMAY W10751162
1AMAY W10599490
1MAY W10741197
2AMAY 8534853
2MAY 8534854
3MAY W10726645
4AMAY W10562111
4MAY W10562110
4BMAY W10562114
5AMAY W10586591
5MAY W10586590
6AMAY W10195778
6MAY W10195777
7MAY W10620222
8MAY W10526105
9SCREW (BLACK)
9AWP3400836 Whirlpool Dishwasher Screw
10CLIP, GROUNDING
11SCREW
12BADGE
13MAY W10463662
14MAY W10641745
