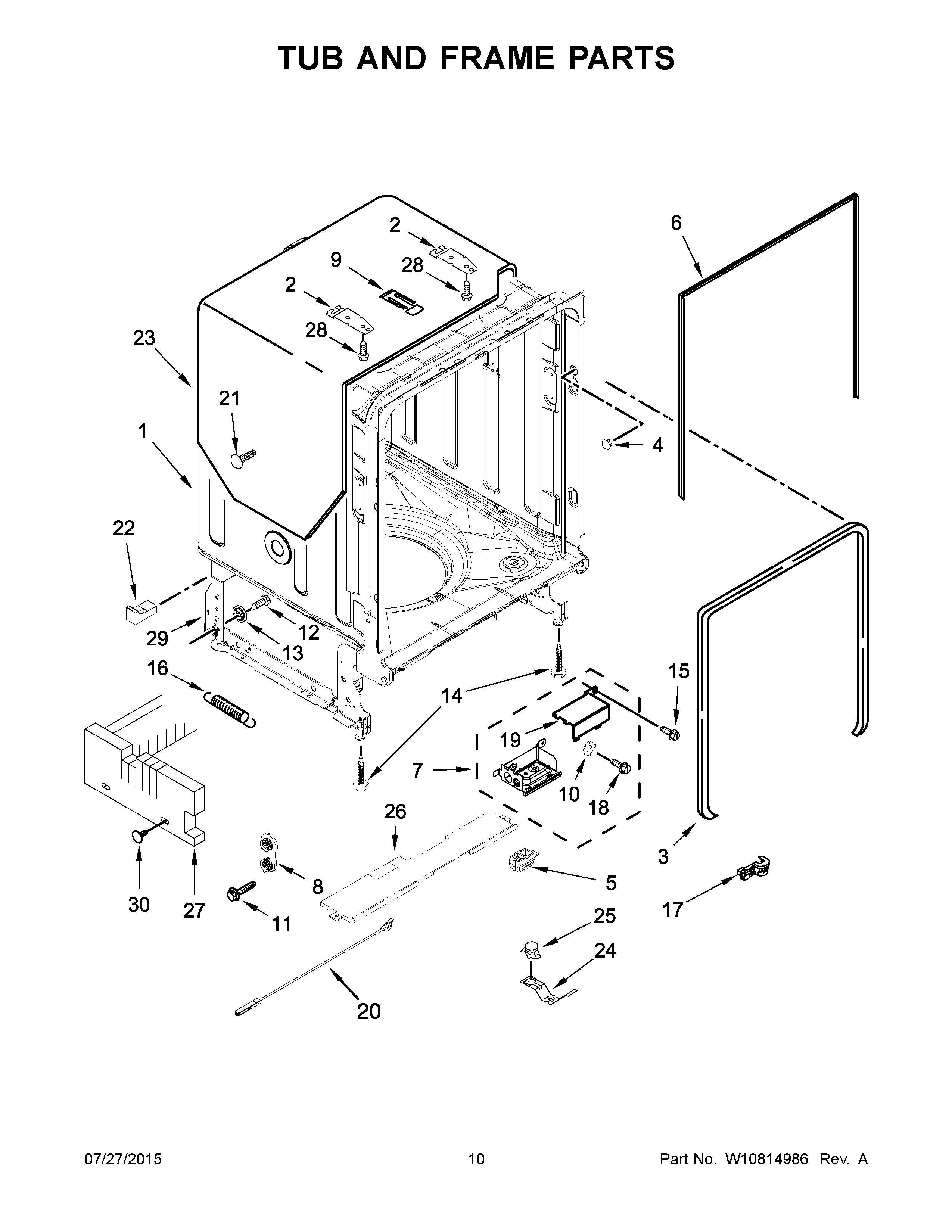

MDB7949SDH2 06 – TUB AND FRAME PARTS

MDB7949SDH2 06 – TUB AND FRAME PARTS

Written by

in

MDB7949SDH2 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	MAY 8269145
3	SEAL, DOOR
4	MAY W10623354
5	MAY W10292870
6	SEAL, CABINET
7	ASSEMBLY, TERMINAL BOX
8	DOOR BALANCE ASSEMBLY
9	STRIKE, LATCH
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	Screw
16	MAY 8270020
17	MAY W10337661
18	MAY 3400014
19	COVER, TERMINAL BOX
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	SPACER, TUB/BRACE (LEFT)
22A	SPACER, TUB/BRACE (RIGHT)
23	MAY 8573239
24	MAY W10300703
25	MAY W10195091
26	MAY W10746770
27	MAY W10740645
28	MAY 3367670
29	SUPPORT ASSEMBLY, REAR
30	RETAINER
