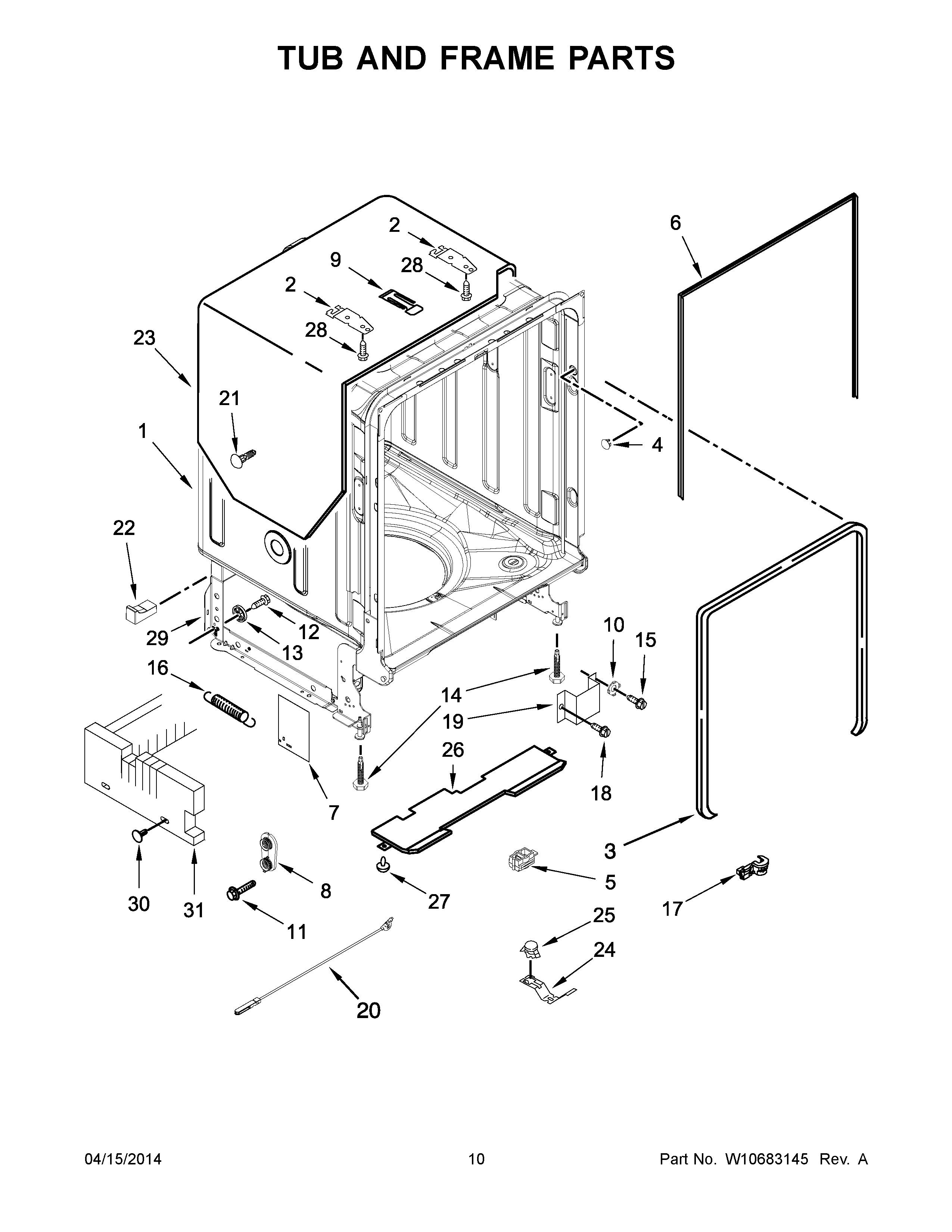

MDB7949SDM0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10511208
2	MAY 8269145
3	SEAL, DOOR
4	MAY W10082838
5	MAY W10292870
6	SEAL, CABINET
7	MAY W10609495
8	DOOR BALANCE ASSEMBLY
9	STRIKE, LATCH
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	MAY 3400014
16	MAY 8270020
17	MAY W10337661
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	SPACER, TUB/BRACE (RIGHT)
22	SPACER, TUB/BRACE (LEFT)
23	MAY 8573239
24	MAY W10300703
25	MAY W10195091
26	INSULATION BOTTOM
27	MAY 3400924
28	MAY 3367670
29	MAY W10190776
30	RETAINER
31	MAY W10380052
