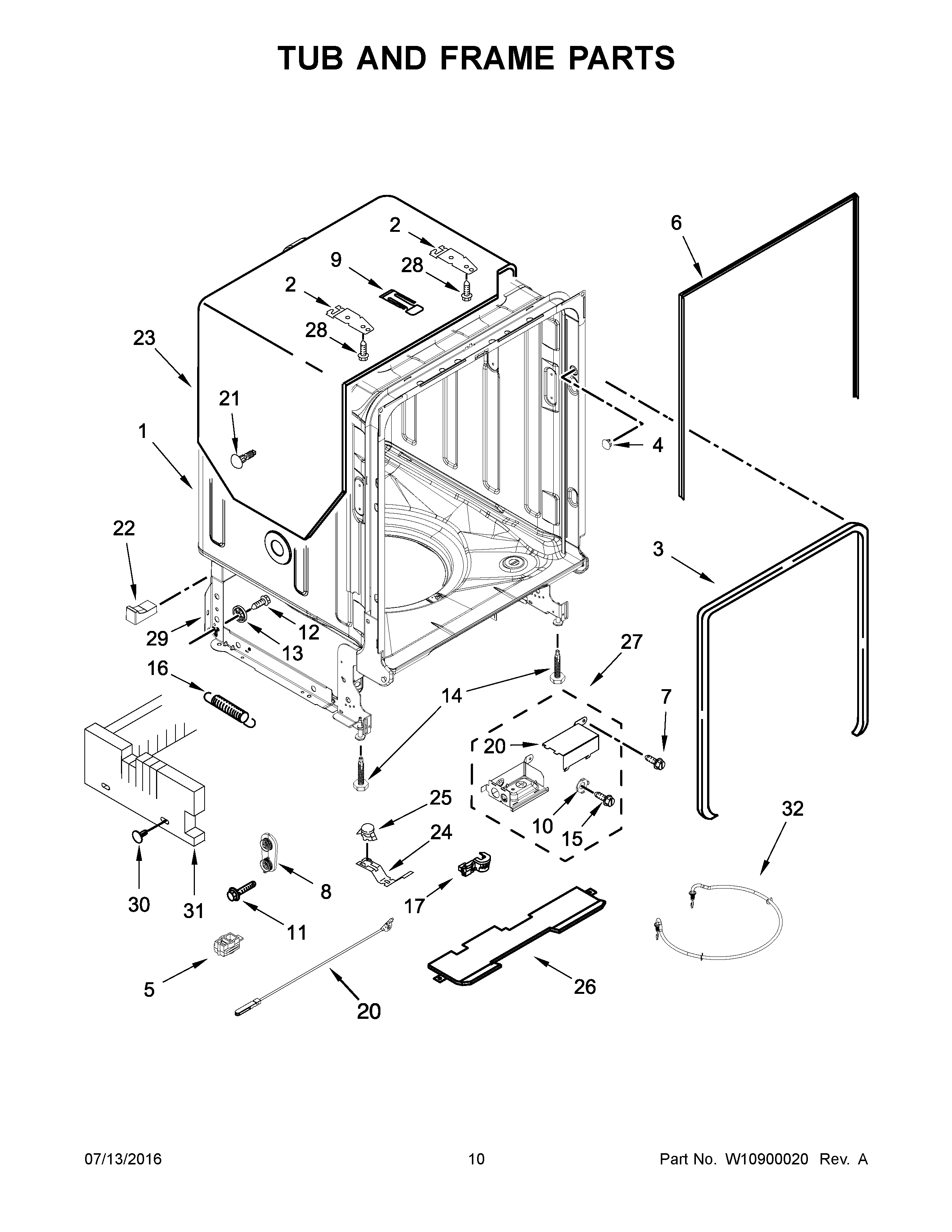

MDB7949SDZ0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	MAY 8269145
3	SEAL, DOOR
4	PLUG, TUB
5	MAY W10292870
6	SEAL, CABINET
7	SCREW
8	DOOR BALANCE ASSEMBLY
9	STRIKE, LATCH
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	MAY 3400014
16	MAY 8270020
17	MAY W10337661
18	MAY 3400892
19	COVER, TERMINAL BOX
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22A	SPACER, TUB/BRACE (RIGHT)
22	SPACER, TUB/BRACE (LEFT)
23	SHIELD, TUB SOUND
24	MAY W10300703
25	MAY W10195091
26	SOUND INSULATION, BOTTOM
27	ASSEMBLY, TERMINAL BOX
28	MAY 3367670
29	SUPPORT ASSEMBLY, REAR
30	RETAINER
31	INSULATION, U-WRAP
32	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
