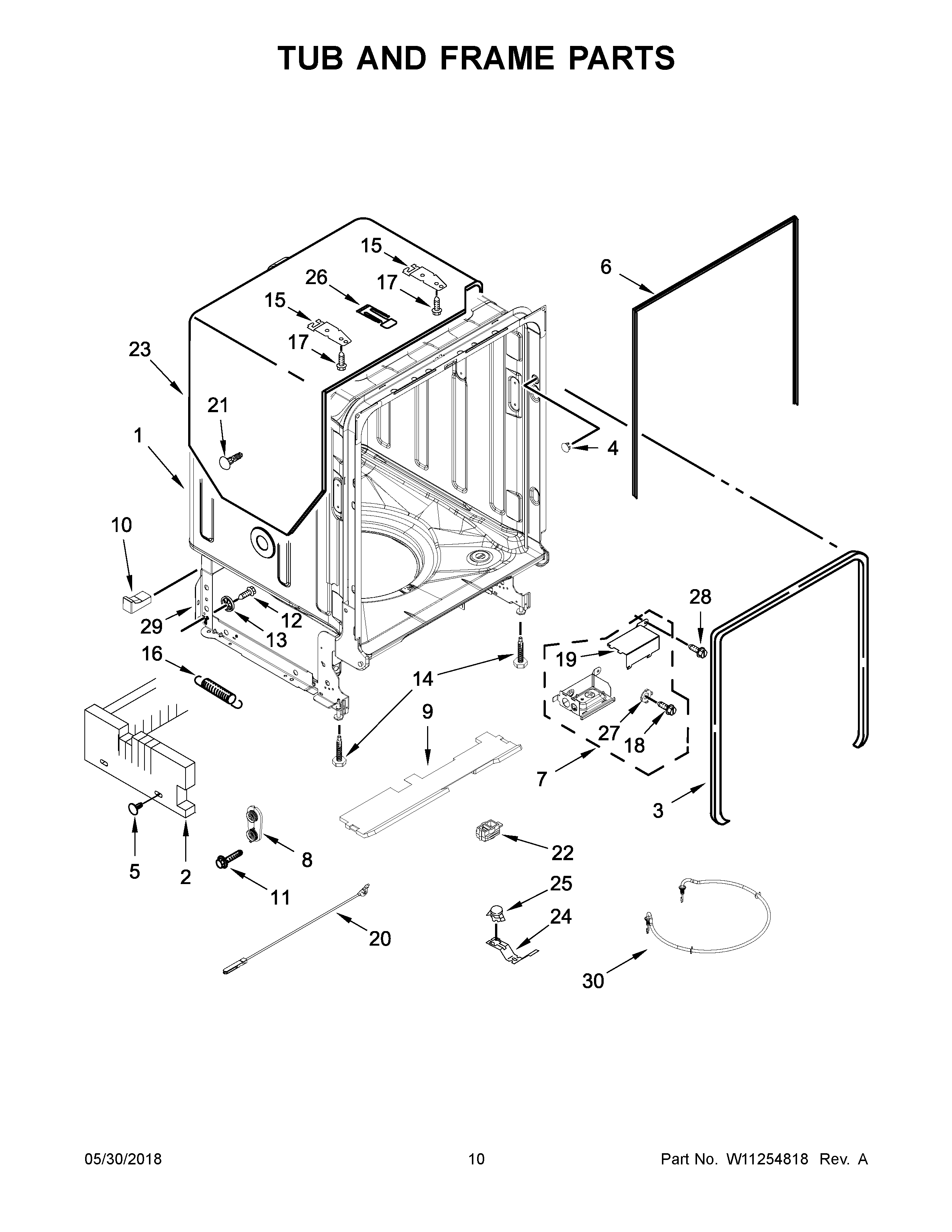

MDB7959SHZ0 06 – TUB AND FRAME PARTS

MDB7959SHZ0 06 – TUB AND FRAME PARTS

Written by

in

MDB7959SHZ0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681492
2INSULATION, U-WRAP
3GASKET, TUB
4PLUG, TUB
5RETAINER
6SEAL, CABINET
7ASSEMBLY, TERMINAL BOX
8DOOR BALANCE ASSEMBLY
9SOUND INSULATION, BOTTOM
10ASPACER, TUB/BRACE (RIGHT)
10SPACER, TUB/BRACE (LEFT)
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15MAY 8269145
16MAY 8270020
17MAY 3367670
18MAY 3400014
19COVER, TERMINAL BOX
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22MAY W10292870
23SHIELD, TUB SOUND
24MAY W10300703
25MAY W10195091
26STRIKE, LATCH
27WASHER, PRONGED CUP
28Screw
29SUPPORT ASSEMBLY, REAR
30HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
