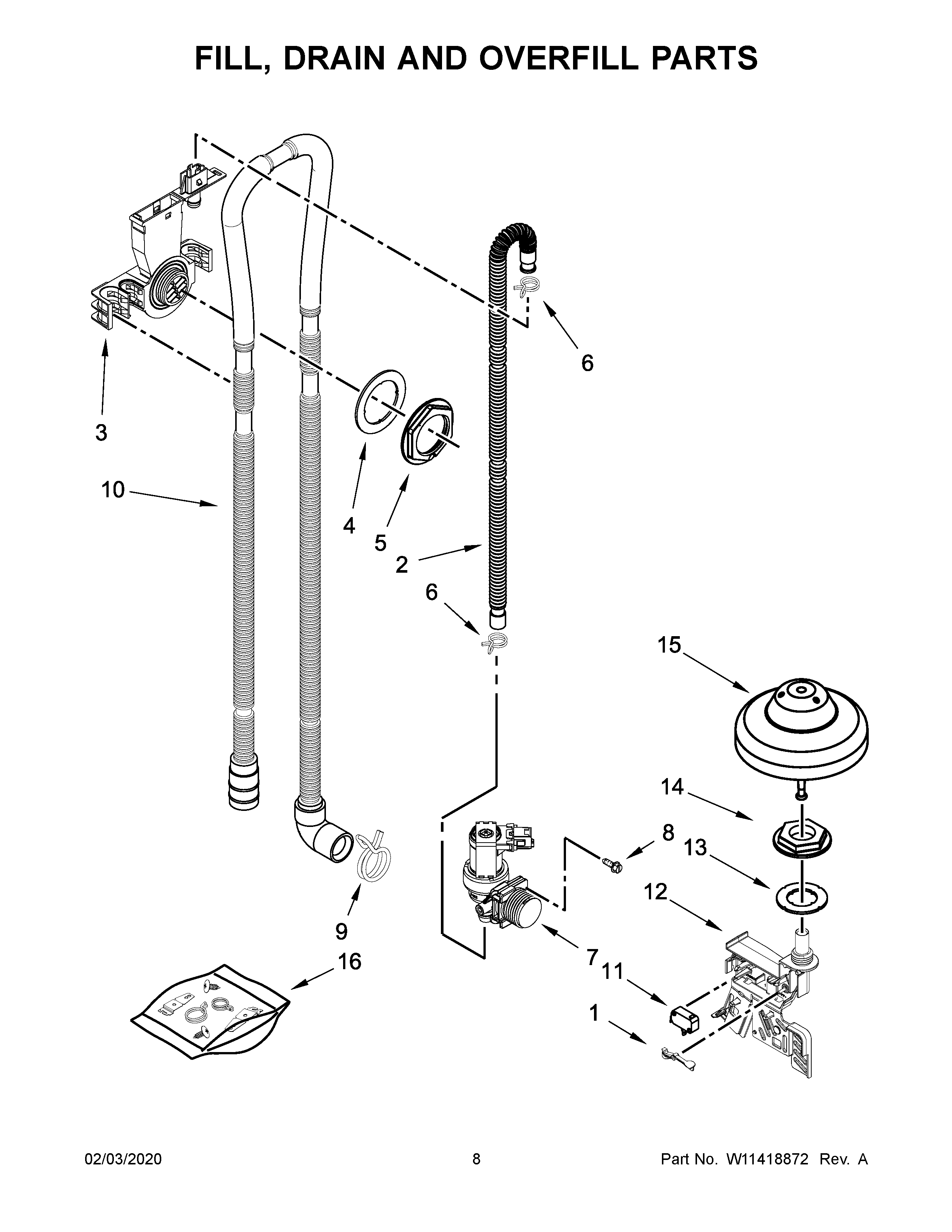

MDB7959SHZ1 05 – FILL, DRAIN AND OVERFILL PARTS

MDB7959SHZ1 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

MDB7959SHZ1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2HOSE
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7MAY W11130743
8Screw
9MAY 370445
10DRAIN LOOP WITH CHECK VALVE ASSEMBLY
11SWITCH, OVERFILL CONTROL
12HOUSING, OVERFILL (ALSO ORDER ITEM 11)
13MAY 8531743
14MAY W10195038
15MAY W10195036
16MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
