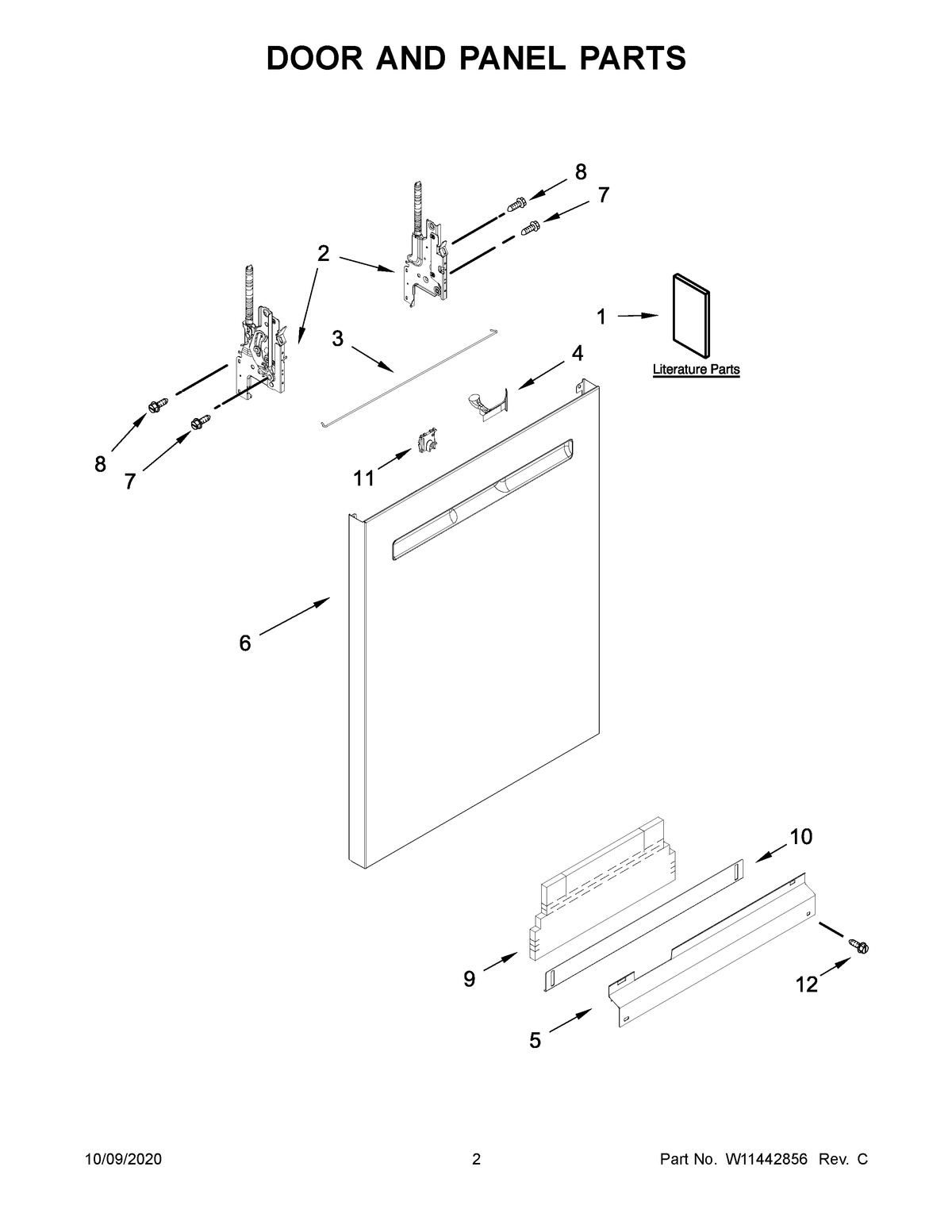

MDB7959SKZ0 02 – DOOR AND PANEL PARTS

Written by

Products

Position	Product
1	OWNERS MANUAL
1A	ENERGY GUIDE
1B	TECH SHEET
2	ARM, HINGE (LEFT HAND)
2A	ARM, HINGE (RIGHT HAND)
3	CROSS BRACE, DOOR
4	LIGHT PIPE
5	ACCESS PANEL (BLACK)
6	PANEL, FRONT (INCLUDES 4 & 11) (STAINLESS)
7	SCREW
8	MAY W10309090
9	INSULATION, SINGLE LAYER
10	TOE PANEL (BLACK)
11	BARREL NUT, FRONT PANEL
12	SCREW, BLACK
