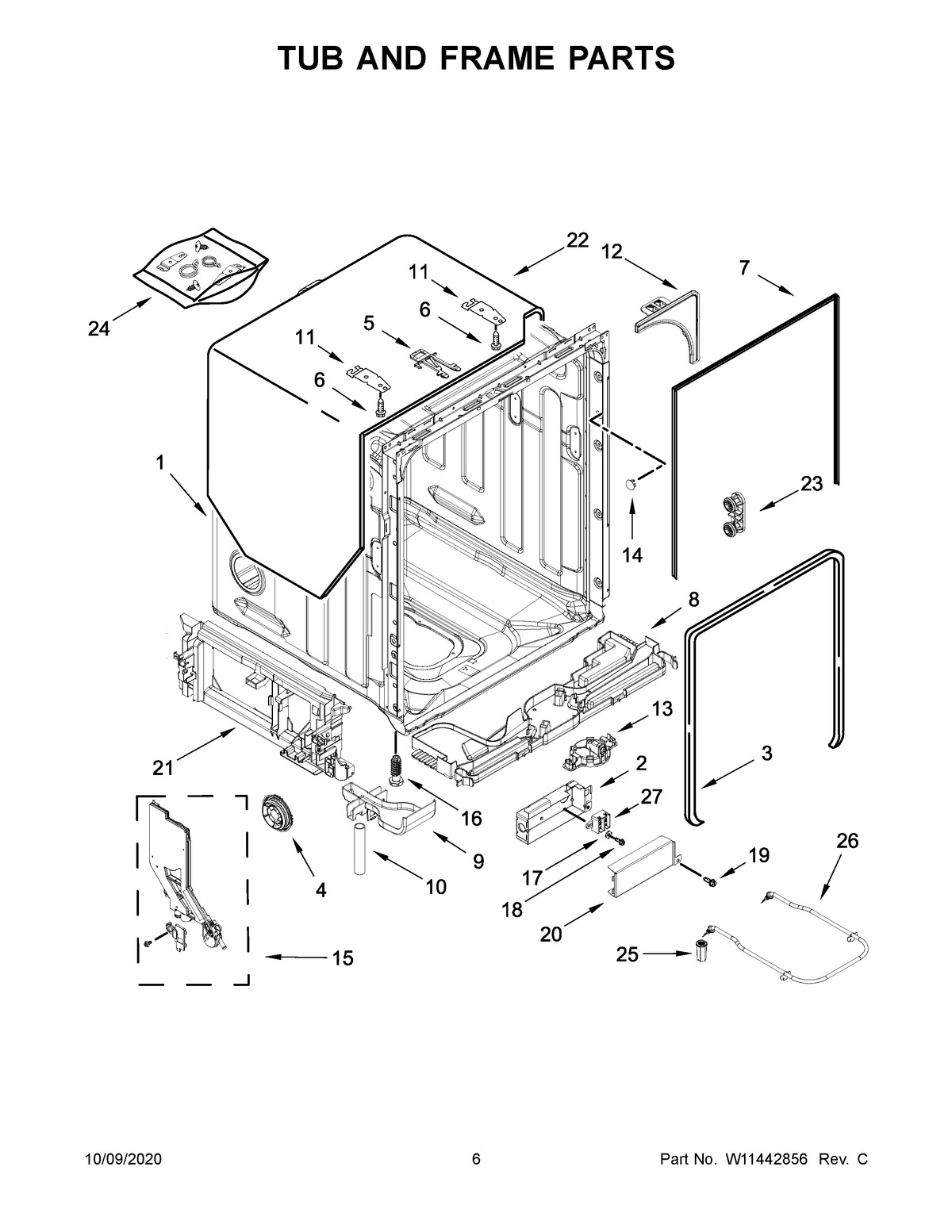

MDB7959SKZ0 04 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES GASKET)
2	BASE, TERMINAL BOX
3	GASKET, TUB
4	NUT, WATER INLET
5	STRIKE, LATCH
6	SCREW
7	SEAL, CABINET
8	DRIP TRAY
9	FUNNEL, OVERFILL PROTECTION
10	FUNNEL EXTENSION
11	MAY 8269145
12	COVER, TUB CORNER
13	FLOAT SWITCH
14	PLUG, TUB
15	WATER INLET ASSEMBLY
16	LEG, LEVELING
17	WASHER, PRONGED CUP
18	MAY 3400014
19	MAY W10277003
20	COVER, TERMINAL BOX
21	SIDE SUPPORT, TUB (LEFT HAND)
21A	SIDE SUPPORT, TUB (RIGHT HAND)
22	SHIELD, TUB SOUND
23	TUB MOUNT, UPPER RACK
24	MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
25	NUT, HEATER TERMINAL
26	HEATER ELEMENT ASSEMBLY
27	TERMINAL BLOCK
