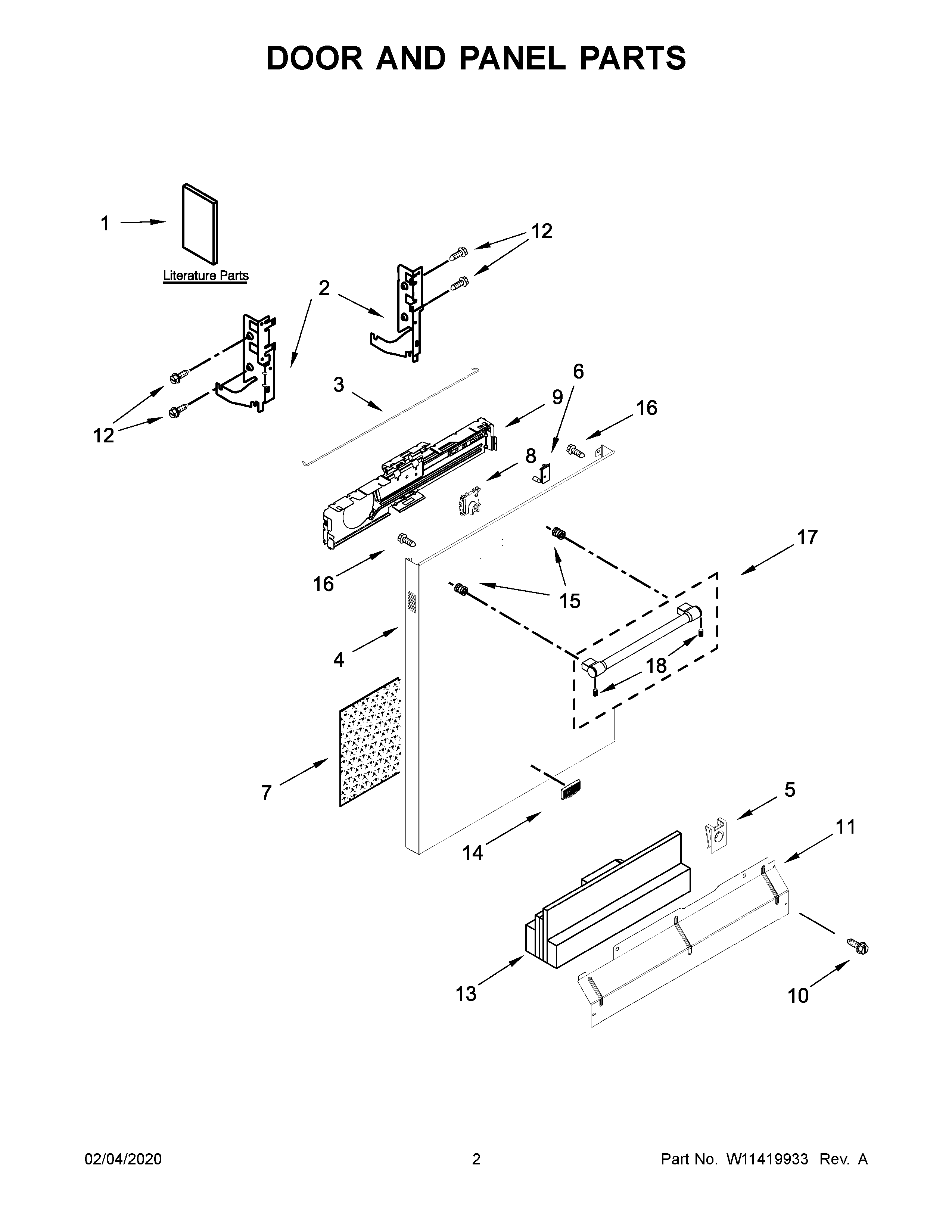

MDB7979SHZ1 02 – DOOR AND PANEL PARTS

MDB7979SHZ1 02 – DOOR AND PANEL PARTS

Written by

in

MDB7979SHZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1BUSE & CARE GUIDE
1CMAY W11290951
2AMAY 8534853
2MAY 8534854
3STIFFENER, DOOR
4PANEL FRONT (INCLUDES ITEMS 6 & 8) (STAINLESS)
5U-NUT
6LIGHT PIPE
7INSULATION, FRONT PANEL
8BARREL NUT, FRONT PANEL
9MAY W10641745
10SCREW (BLACK)
11ACCESS PANEL (BLACK)
12SCREW
13INSULATION, FOUR LAYER
14BADGE
15STUD, MOUNTING
16MAY W10316572
17HANDLE ASSEMBLY (STAINLESS)
18SET SCREW
