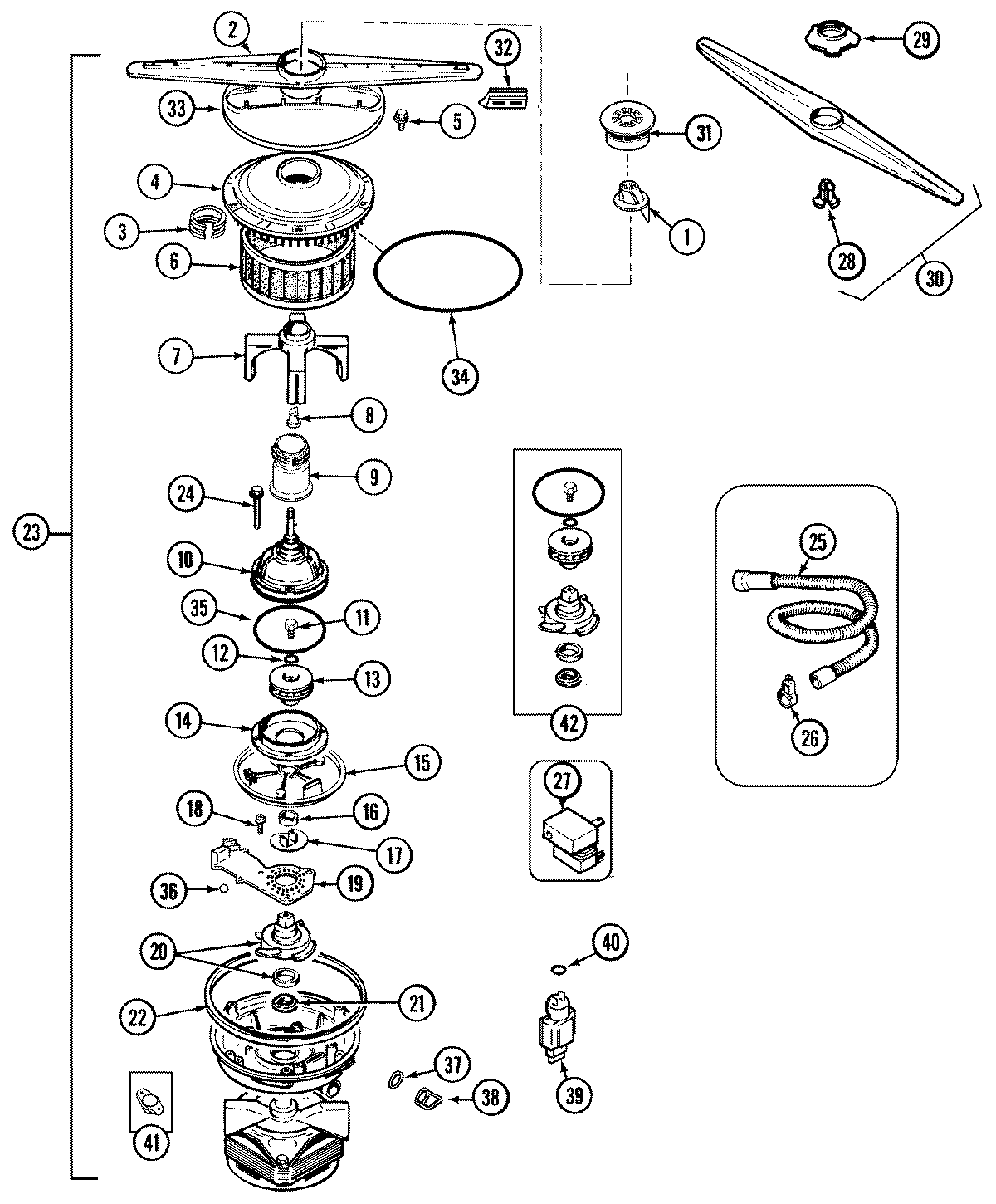

MDB8000AWW 03 – PUMP & MOTOR

Products

Position	Product
1	WP99001787 Whirlpool Dishwasher Tower
2	WP99001788 Whirlpool Dishwasher Spray Arm
3	MAY 912313
4	MAY 99001789
5	MAY 99001790
6	WP99001791 Whirlpool Dishwasher Pump Filter
7	MAY 99001748
8	MAY 99001426
9	MAY 99001422
10	MAY 99001695
11	MAY 910654
12	WP910934 Whirlpool Dishwasher O-Ring
13	WP902461 Whirlpool Washer Impeller
14	MAY 99001793
15	MAY 99001794
16	MAY 912510
17	MAY 912310
18	61002031 Whirlpool Air Conditioner Handle Screw
19	MAY 99001795
20	MAY 903304
21	MAY 902882
22	MAY 912529
23	MAY 99001933
24	MAY 912383
25	WP99001782 Whirlpool Dishwasher Drain Hose
26	WP616099 Whirlpool Clamp
27	MAY 99001425
27	MAY Y913156
28	MAY Y912681
29	WP912680 Whirlpool Dishwasher Outlet
30	MAY 12001446
31	WP99001428 Whirlpool Dishwasher Nut
32	MAY Y912895
33	WP99001796 Whirlpool Dishwasher Guard
34	MAY 99001797
35	MAY 99001326
36	MAY 99001798
37	MAY 99001799
38	MAY 99001800
39	MAY 912345
39	MAY 99001912
40	MAY 99001888
41	MAY 99001981
41	MAY 99001980
41	SCREW, No.8X1/2 HEX WASHER HEAD
41	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
42	MAY 12001489
