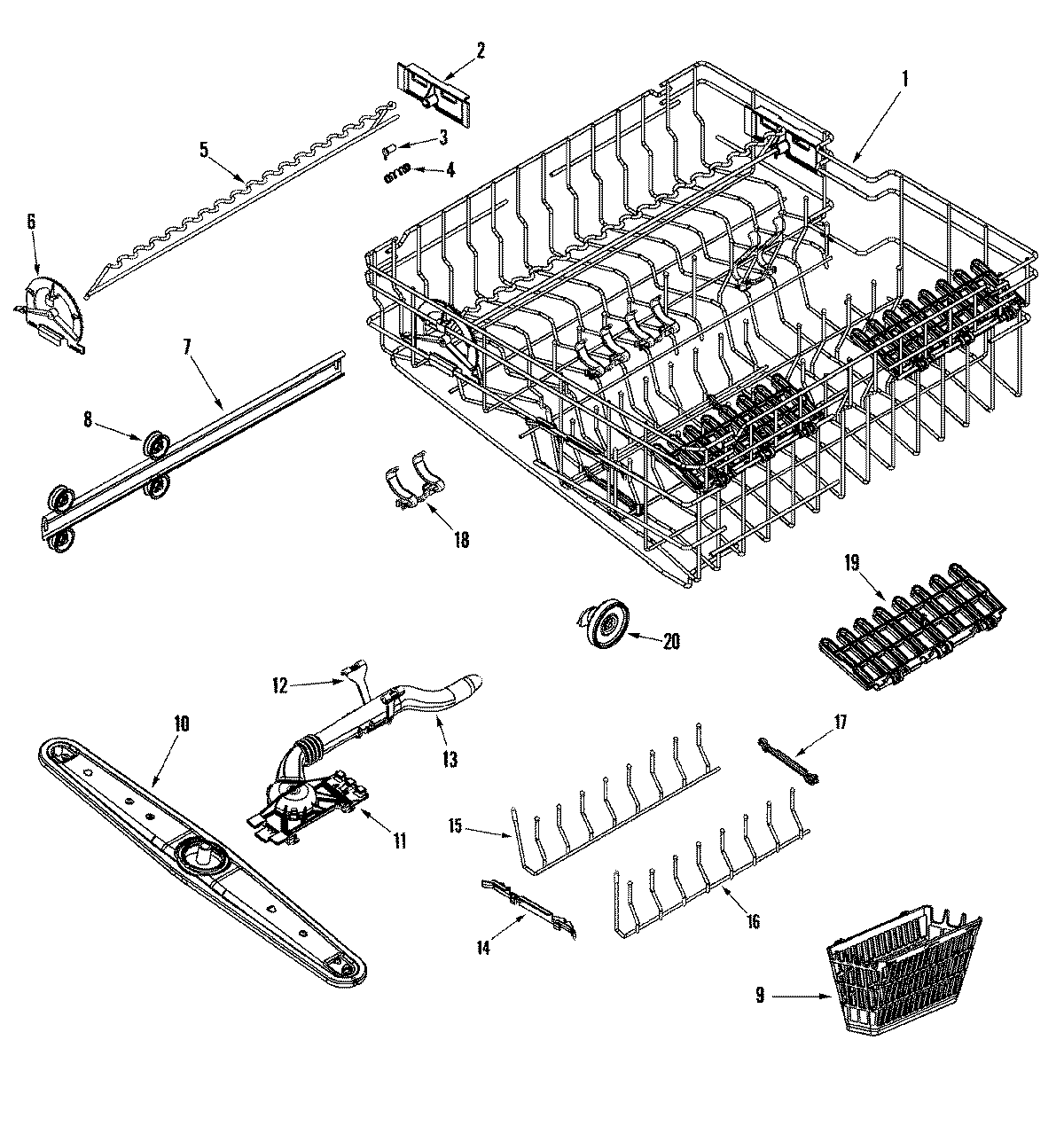

MDB8600AWS 05 – RACK ASSEMBLY (UPR)

MDB8600AWS 05 – RACK ASSEMBLY (UPR)

Written by

in

MDB8600AWS 05 – RACK ASSEMBLY (UPR)

Products

PositionProduct
1MAY 99003019
1MAY 99002742
1MAY 99002905
3MAY 99002714
4MAY 99002715
5MAY 99002713
6MAY 99002711
7WPW10261227 Whirlpool Dishwasher Stop Assembly
7TRACK, RACK
8WP99002947 Whirlpool Tub Wheel
8WPY912798 Whirlpool Dishwasher Tub Washer Wheel
9W11175758 Whirlpool Dishwasher Basket Ware
10WP99003070 Whirlpool Dishwasher Wash Arm
11CLIP, UPR WASH MANIFOLD (FRT)
1299002945 Whirlpool Dishwasher Upper Wash Manifold Clip
13WASH MANIFOLD ASSY (UPR)
14WP99002710 Whirlpool Dishwasher Fold-Down Latch
16WP99003496 Whirlpool Convertible Row Tine
17WP99002709 Whirlpool Tine Pivot Clip
19MAY 99002671
20WP99002781 Whirlpool Dishwasher Wheel
