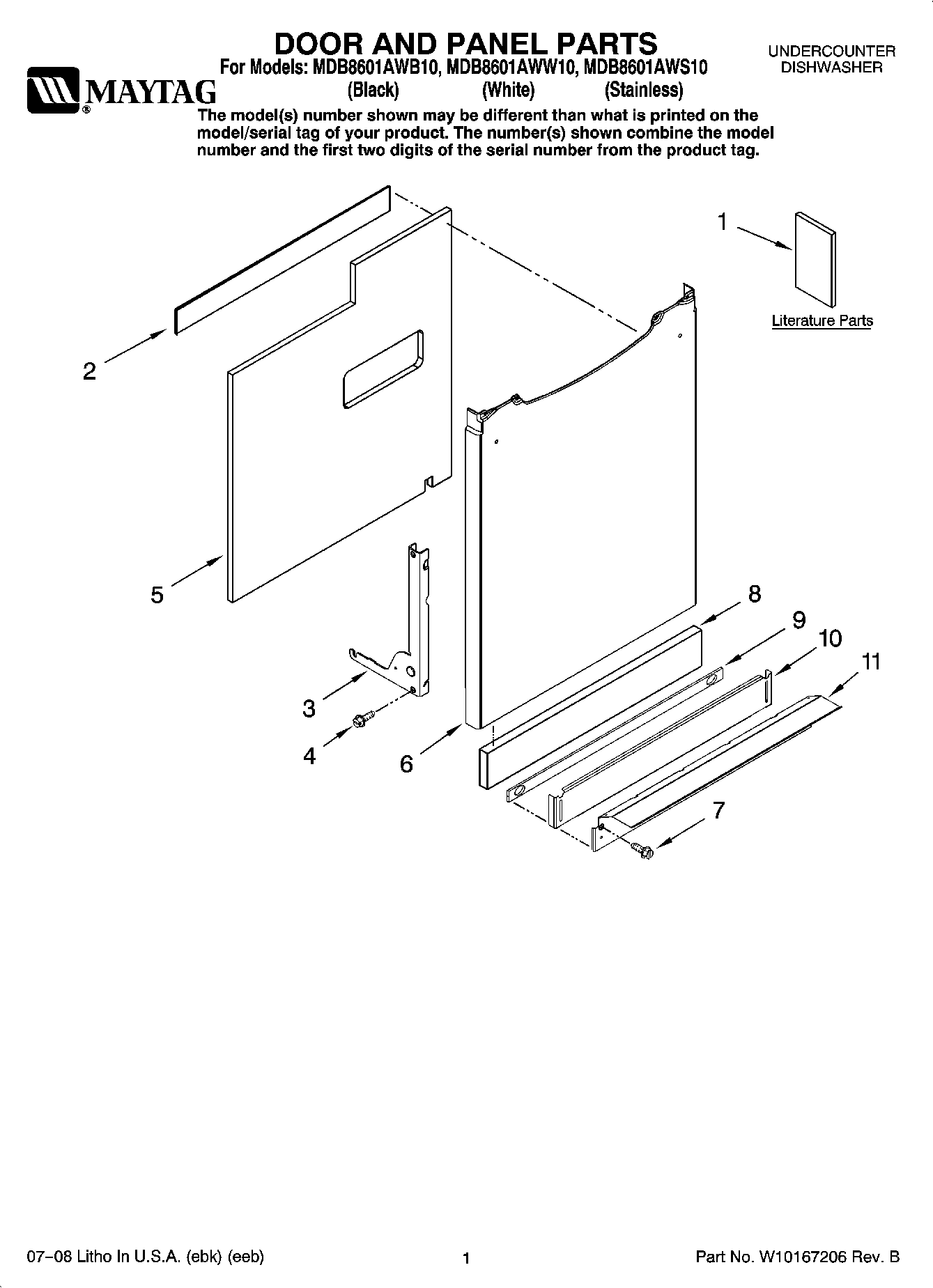

MDB8601AWB10 01 – DOOR AND PANEL PARTS

MDB8601AWB10 01 – DOOR AND PANEL PARTS

Written by

in

MDB8601AWB10 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10120001
1MAY Y6920183
1MAY W10158012
2DAMPER (2“ X 20“)
3MAY 99002929
3WPW10118637 Whirlpool Dishwasher Bracket
4MAY 99001075
5INSULATION, DOOR
6MAY 99002770
6MAY 99002771
6PANEL, DECO (W/DAMPER-BLK)
7SCREW, ACCESS PANEL
7WP6-912366 Whirlpool Dishwasher Screw
8WP6-920587 Whirlpool Dishwasher Shield
9Damper, Toe Panel (Black)
9MAY 99002698
10PANEL, TOE (W/DAMPER-BLK)
10MAY 99002766
11SUPPORT, FRONT (W/SEALS)(WHT)
11SUPPORT, FRONT (W/SEALS)(BLK)
