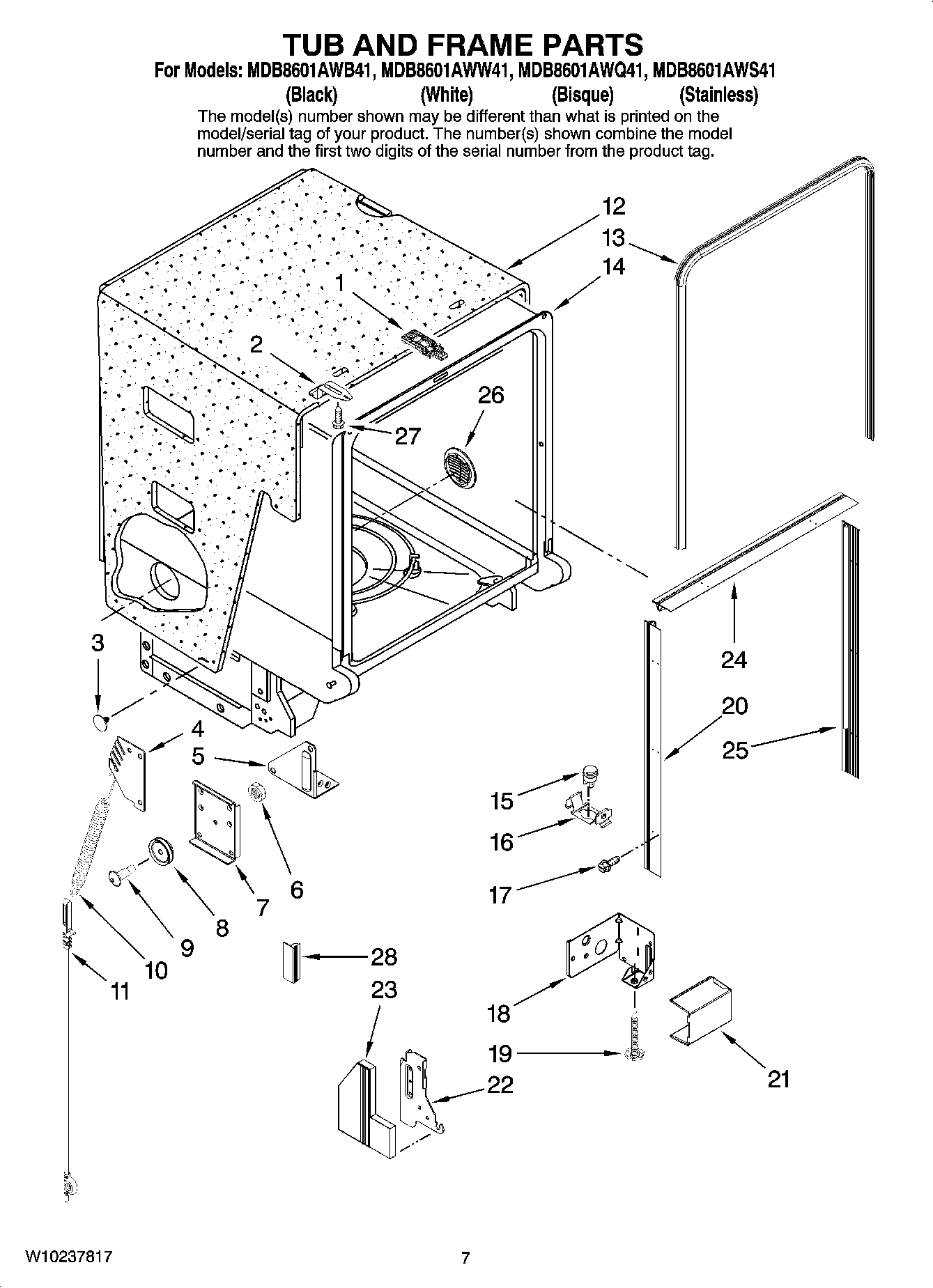

MDB8601AWQ41 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 6-916881
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003688
7	MAY W10173920
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	MAY 99002588
14	MAY W10142297
15	MAY 99002633
16	MAY 99002634
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	MAY W10143258
20	ASSEMBLY (LEFT)
21	MAY 6-916711
22	MAY W10137496
22	MAY W10137495
23	BACKER, HINGE SEAL (LT)
23	BACKER, HINGE SEAL (RT)
24	MAY W10164698
25	ASSEMBLY (RIGHT)
26	99002590 Whirlpool Dishwasher Door Vent Bezel
27	MAY 6-912799
28	Gap Seal, Toe Kick (Black)
28	Gap Seal, Toe Kick (White)
28	Gap Seal, Toe Kick (Bisque)
