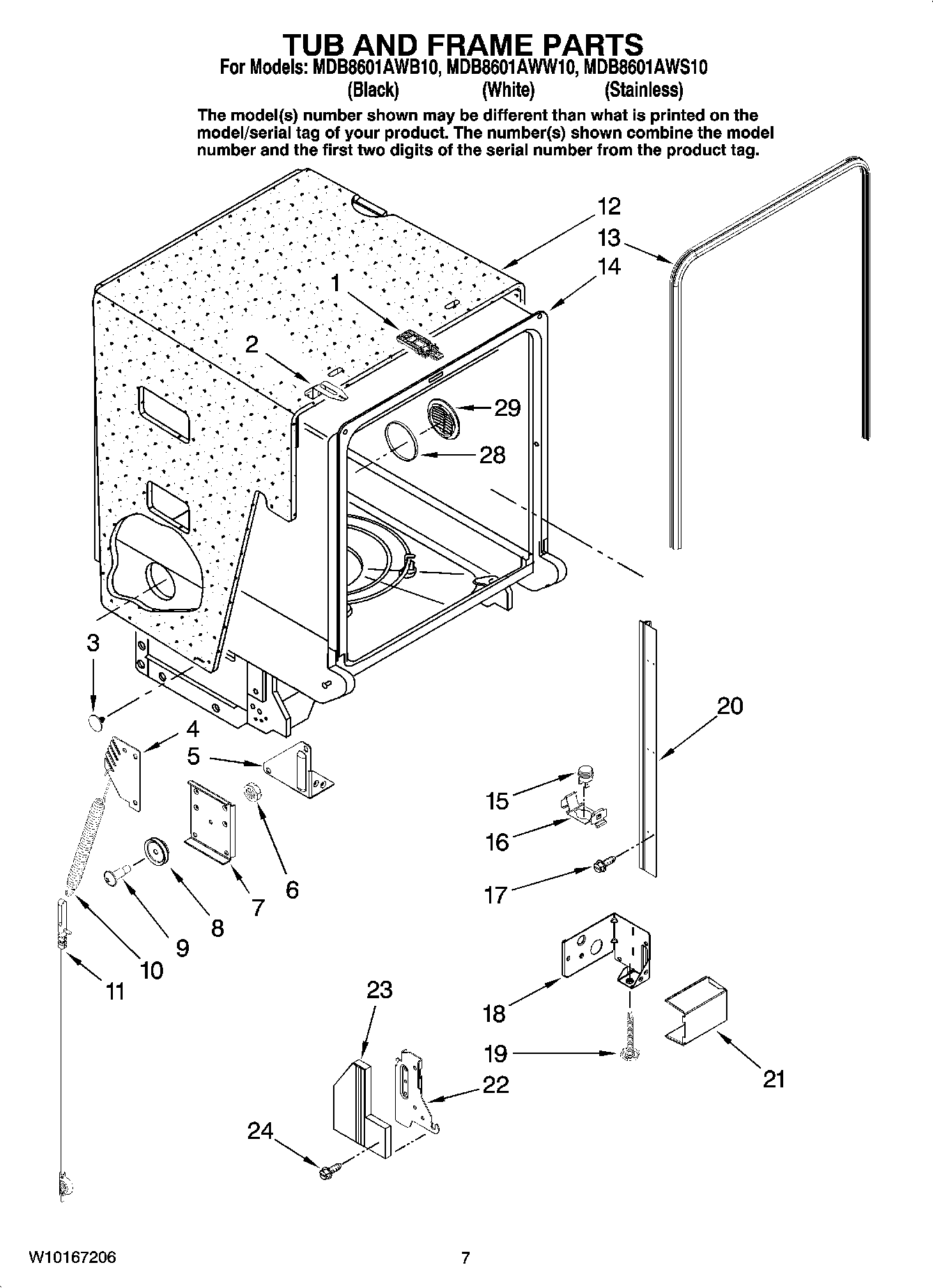

MDB8601AWW10 07 – TUB AND FRAME PARTS

MDB8601AWW10 07 – TUB AND FRAME PARTS

Written by

in

MDB8601AWW10 07 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10119337
2MAY 99002648
3FASTENER, INSULATION
46-918346 Whirlpool Dishwasher Bracket
5BRACKET, SUPPORT (LT)
6MAY 99003688
7MAY 99003686
8WP99002608 Whirlpool Dishwasher Cable Roller
9MAY 99003687
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12GAP SEAL, TOE KICK (WHT)
12GAP SEAL, TOE KICK (BLK)
13WPW10223013 Whirlpool Dishwasher Insulation Pad
14MAY 99002588
15MAY W10142297
16MAY 99002633
17MAY 99002634
18MAY 99002692
19BRACKET, JUNCTION BOX SUPPORT
20WPW10143258 Whirlpool Dishwasher Leg Leveler
21TRIM STRIP ASSEMBLY (RT)
22MAY 99002638
23MAY 99002723
24TRIM STRIP ASSEMBLY (LT)
25MAY W10117484
25MAY W10117485
26BACKER, HINGE SEAL (LT)
26BACKER, HINGE SEAL (RT)
27SCREW 10-32X.400 (T-20 HEAD)
