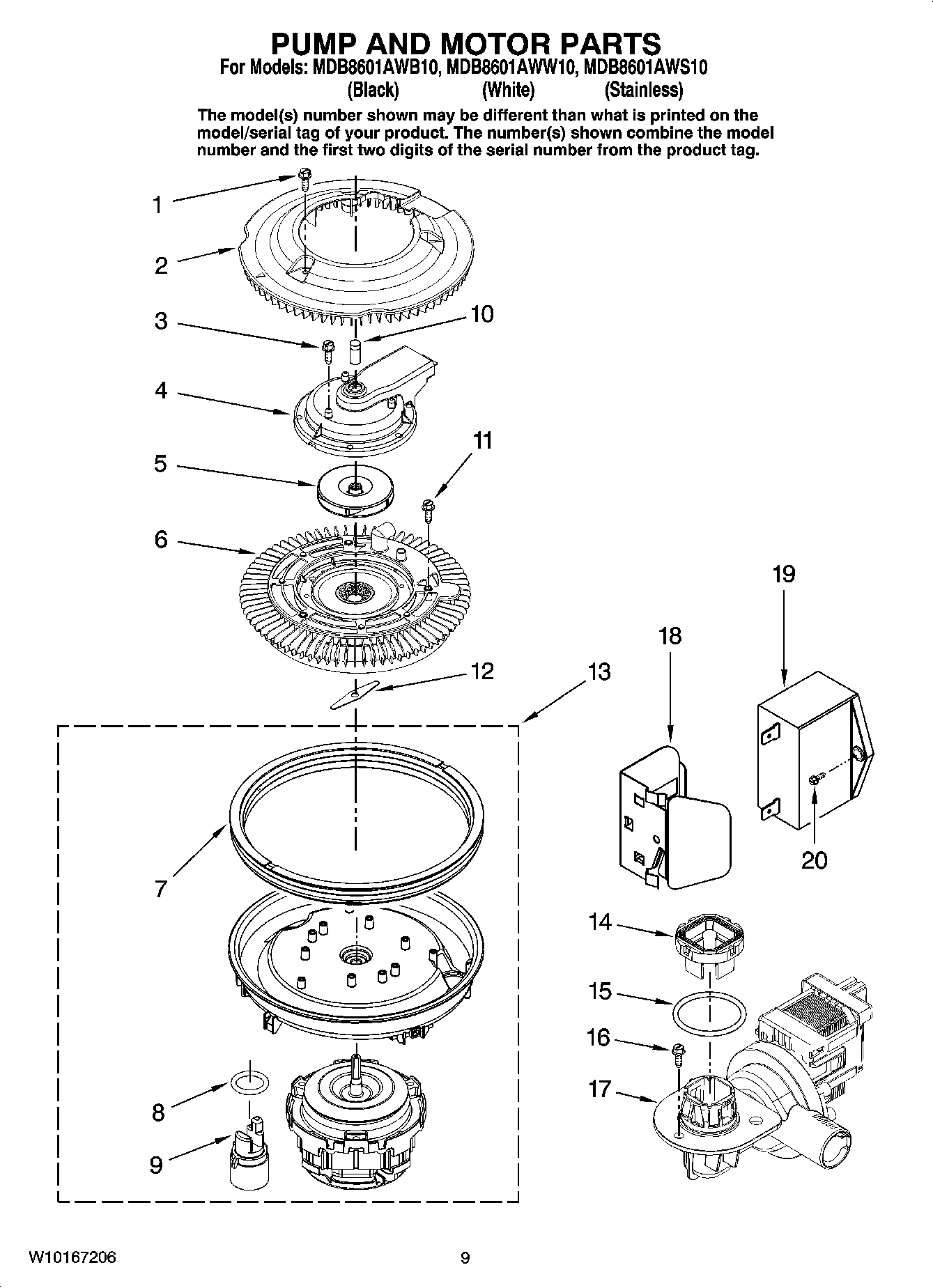

MDB8601AWW10 08 – PUMP AND MOTOR PARTS

MDB8601AWW10 08 – PUMP AND MOTOR PARTS

Written by

in

MDB8601AWW10 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2WPW10166788 Whirlpool Dishwasher Filter Frame
3SCREW, STAINLESS PAN HEAD
4DISCHARGE HOUSING ASSY (UPR)
5WP99002659 Whirlpool Impeller
6WPW10192799 Whirlpool Dishwasher Accumulator
7GASKET, PUMP
899002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9MAY W10120019
10MAY 99003697
11SCREW, DISCHARGE HOUSING
12MAY 99003427
13WASH MOTOR ASSY SEAL NOT INCL
14MAY 99003309
15MAY 99002857
16SCREW, TRUSS HEAD (10-18X.75)
17DRAIN PUMP ASSEMBLY
18MAY 99003440
19CAPACITOR, MOTOR
20SCREW 10-32X.400 (T-20 HEAD)
