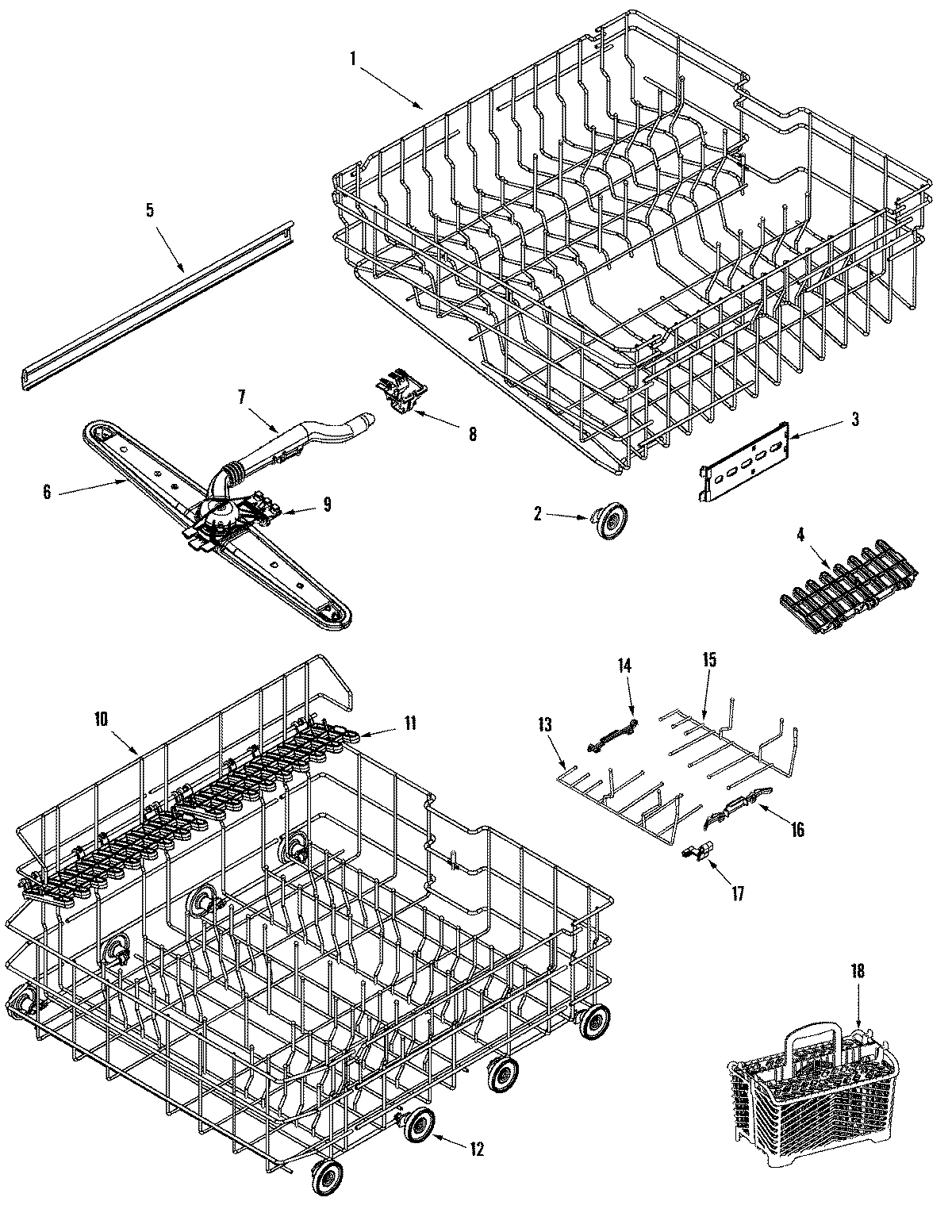

MDB8750AWQ 04 – RAIL & RACK ASSEMBLY

MDB8750AWQ 04 – RAIL & RACK ASSEMBLY

Written by

in

MDB8750AWQ 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003234
1MAY 99003042
2WP99003147 Whirlpool Dishwasher Upper Rack Wheel
3MAY 99003052
3MAY 99003053
4MAY 99002671
5MAY 99003043
5WP99003068 Whirlpool Dishwasher Bearing
5MAY 99003066
5MAY 99003069
6WP99003070 Whirlpool Dishwasher Wash Arm
7WASH MANIFOLD ASSY (UPR)
899002945 Whirlpool Dishwasher Upper Wash Manifold Clip
9CLIP, UPR WASH MANIFOLD (FRT)
10MAY 99002963
10MAY 99002905
11MAY 99002672
12WP99002780 Whirlpool Lower Wheel Assembly
1312002750 Whirlpool Dishwasher Convertible Tine Kit
14WP99002687 Whirlpool Tine Pivot Clip
16WP99002688 Whirlpool Dishwasher Convertible Tine Latch
17MAY 99002689
18MAY 99002697
18MAY 99002683
18WP6-918873 Whirlpool Silverware Basket
