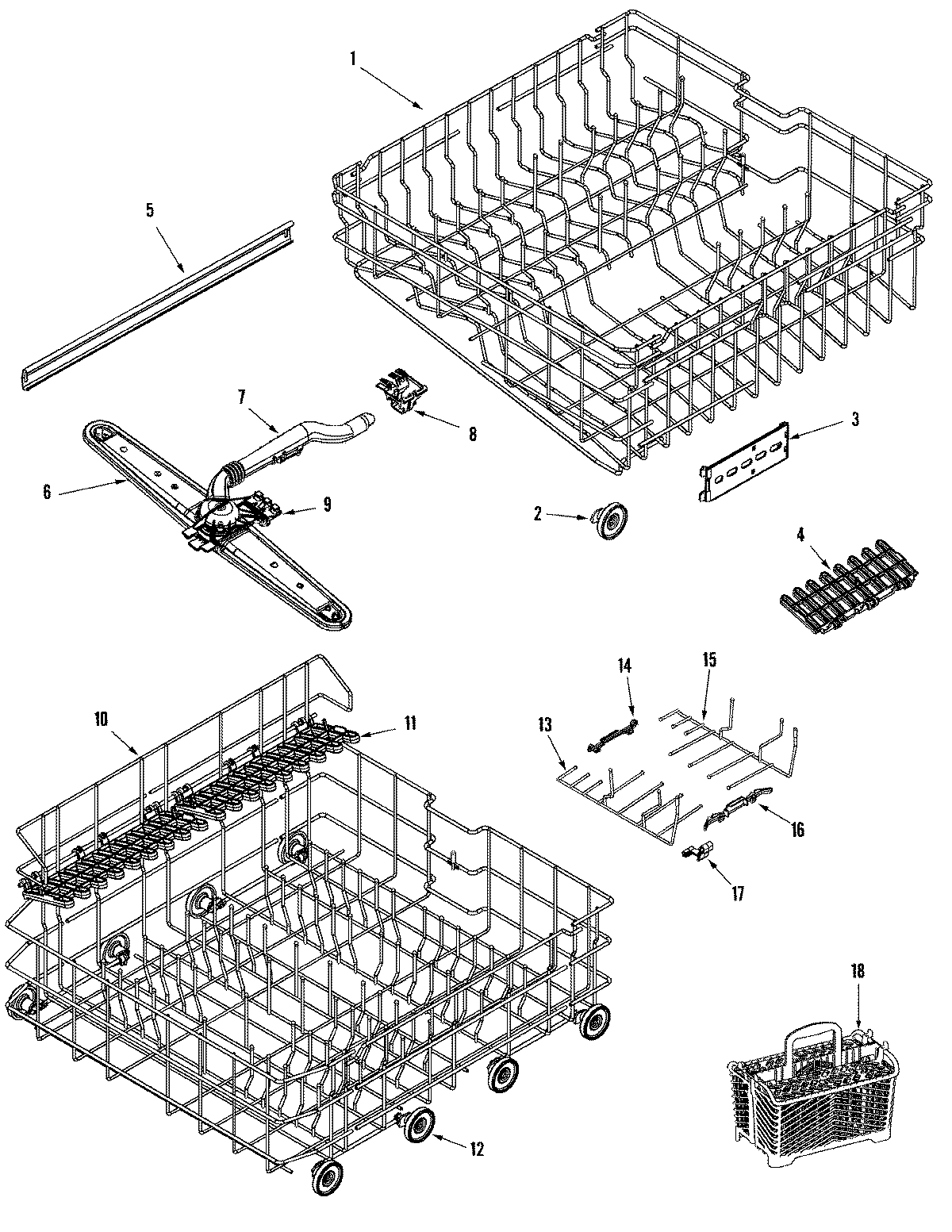

MDB8751AWW 04 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003492
2	WP99003147 Whirlpool Dishwasher Upper Rack Wheel
3	MAY 99003052
3	MAY 99003053
4	MAY 99002671
5	MAY 99003066
5	WP99003281 Whirlpool Gray Rail Stop
5	WP99003068 Whirlpool Dishwasher Bearing
5	MAY 99003069
6	WP99003070 Whirlpool Dishwasher Wash Arm
7	WASH MANIFOLD ASSY (UPR)
8	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
9	CLIP, UPR WASH MANIFOLD (FRT)
10	MAY 99003494
10	MAY 99002905
11	MAY 99003483
11	MAY 99003495
12	WP99002780 Whirlpool Lower Wheel Assembly
13	WP99003496 Whirlpool Convertible Row Tine
14	WP99002687 Whirlpool Tine Pivot Clip
15	WP99003497 Whirlpool Dishwasher Tine Row
16	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
17	MAY 99002689
18	WP6-918873 Whirlpool Silverware Basket
18	MAY 99002697
18	MAY 99002683
