MDB8751BWB 04 – RAIL & RACK ASSEMBLY

MDB8751BWB 04 – RAIL & RACK ASSEMBLY

Written by

in

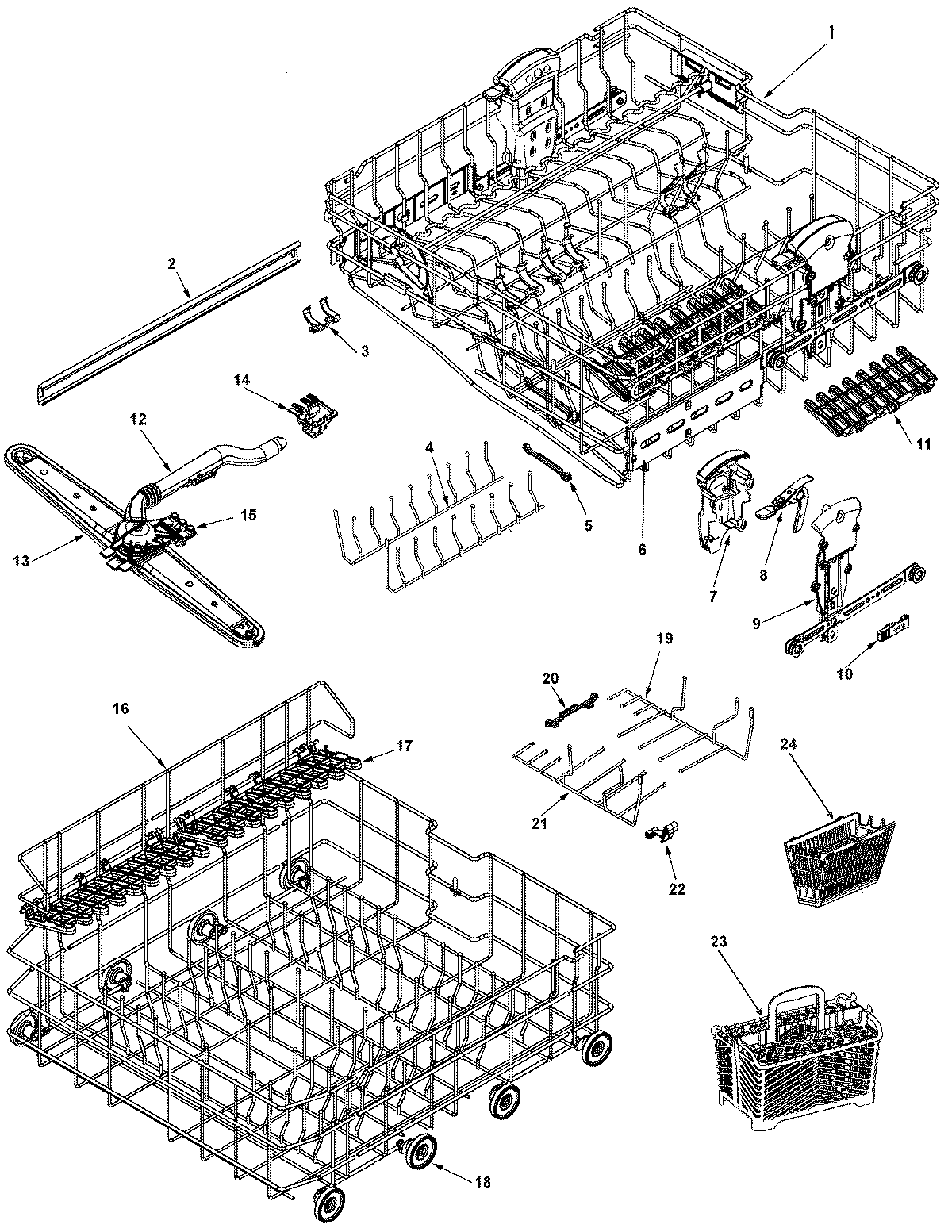

MDB8751BWB 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003460
1MAY 99003459
1MAY 99003462
2MAY 99003066
2WP99003281 Whirlpool Gray Rail Stop
2MAY 99003069
2WP99003068 Whirlpool Dishwasher Bearing
4MAY 99003485
5WP99003484 Whirlpool Dishwasher Folding Tine Clip
5WP99002709 Whirlpool Tine Pivot Clip
6MAY 99003052
6MAY 99003053
7MAY 99003011
899003178 Whirlpool Dishwasher Adjuster Lever (Blue)
9MAY 99003010
9WPW10153533 Whirlpool Dishwasher Adjuster
9MAY 99003587
10MAY 99003020
11MAY 99002671
12WASH MANIFOLD ASSY (UPR)
13WP99003070 Whirlpool Dishwasher Wash Arm
1499002945 Whirlpool Dishwasher Upper Wash Manifold Clip
15CLIP, UPR WASH MANIFOLD (FRT)
16MAY 99002905
16MAY 99003494
17MAY 99003495
18WP99003149 Whirlpool Rack Wheel
19WP99003497 Whirlpool Dishwasher Tine Row
20WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
21WP99003496 Whirlpool Convertible Row Tine
22WP99002687 Whirlpool Tine Pivot Clip
23MAY 99002683
23MAY 99002697
23WP6-918873 Whirlpool Silverware Basket
24W11175758 Whirlpool Dishwasher Basket Ware
