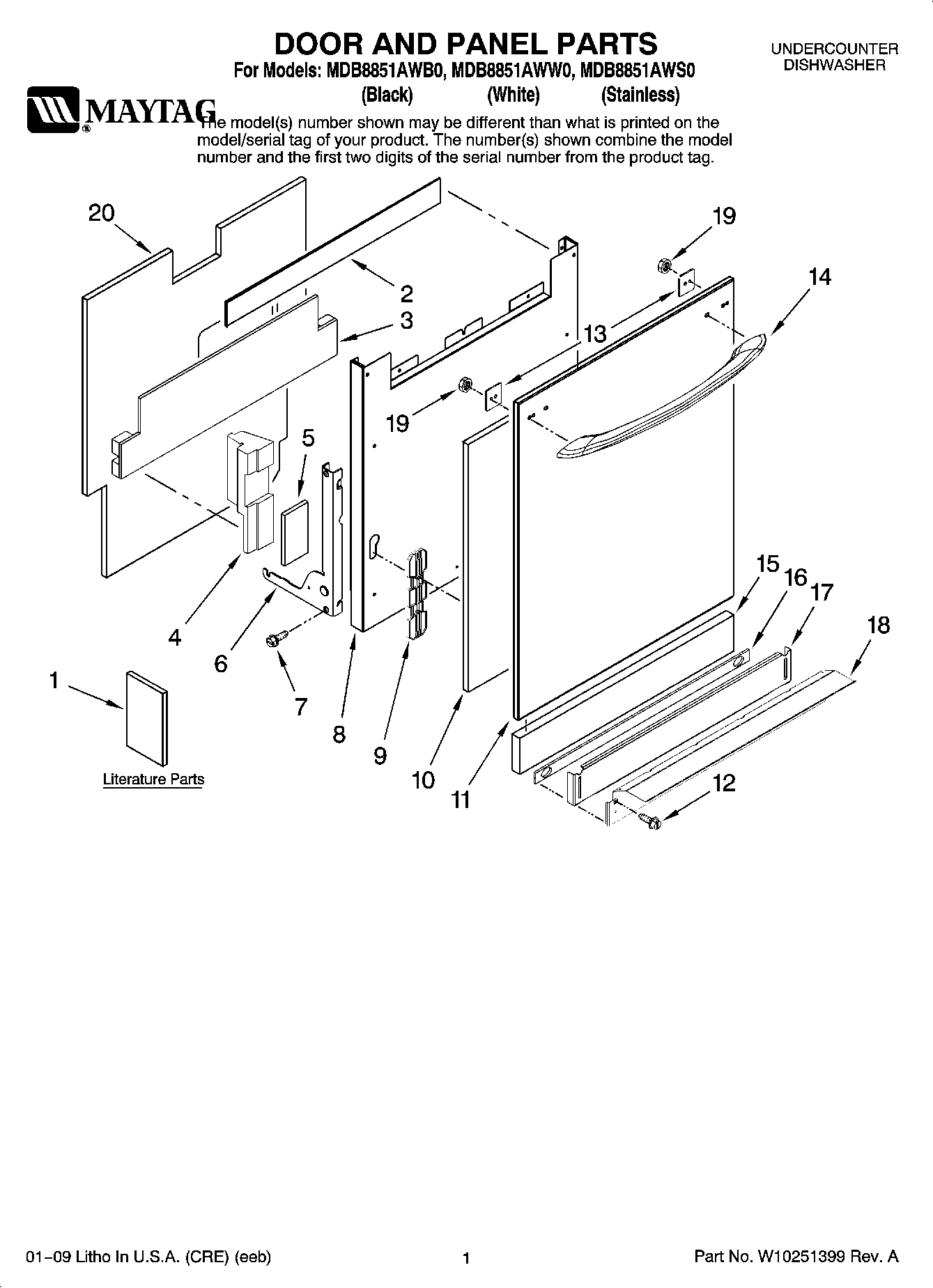

MDB8851AWB0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10208024
1	MAY W10157789
1	MAY W10158012
2	DAMPER (2“ X 20“)
3	MAY 99003048
4	MAY 99003047
4	MAY 99003046
5	MAY 99003049
6	MAY W10118638
6	MAY W10118637
7	MAY 99001075
8	SUPPORT, INNER DOOR (BLK)
9	MAY 99003095
10	MAY 99003093
11	MAY 99003090
11	MAY W10153249
11	MAY 99003092
12	SCREW, ACCESS PANEL
12	WP6-912366 Whirlpool Dishwasher Screw
13	MAY W10167659
14	MAY W10114985
14	MAY W10114990
14	MAY W10114992
15	WP6-920587 Whirlpool Dishwasher Shield
16	MAY 99002698
16	Damper, Toe Panel (Black)
17	MAY 99002766
17	PANEL, TOE (W/DAMPER-BLK)
18	SUPPORT, FRONT (W/SEALS)(BLK)
18	WP99002560 Whirlpool Float Switch
19	MAY 99003688
20	MAY 99003044
