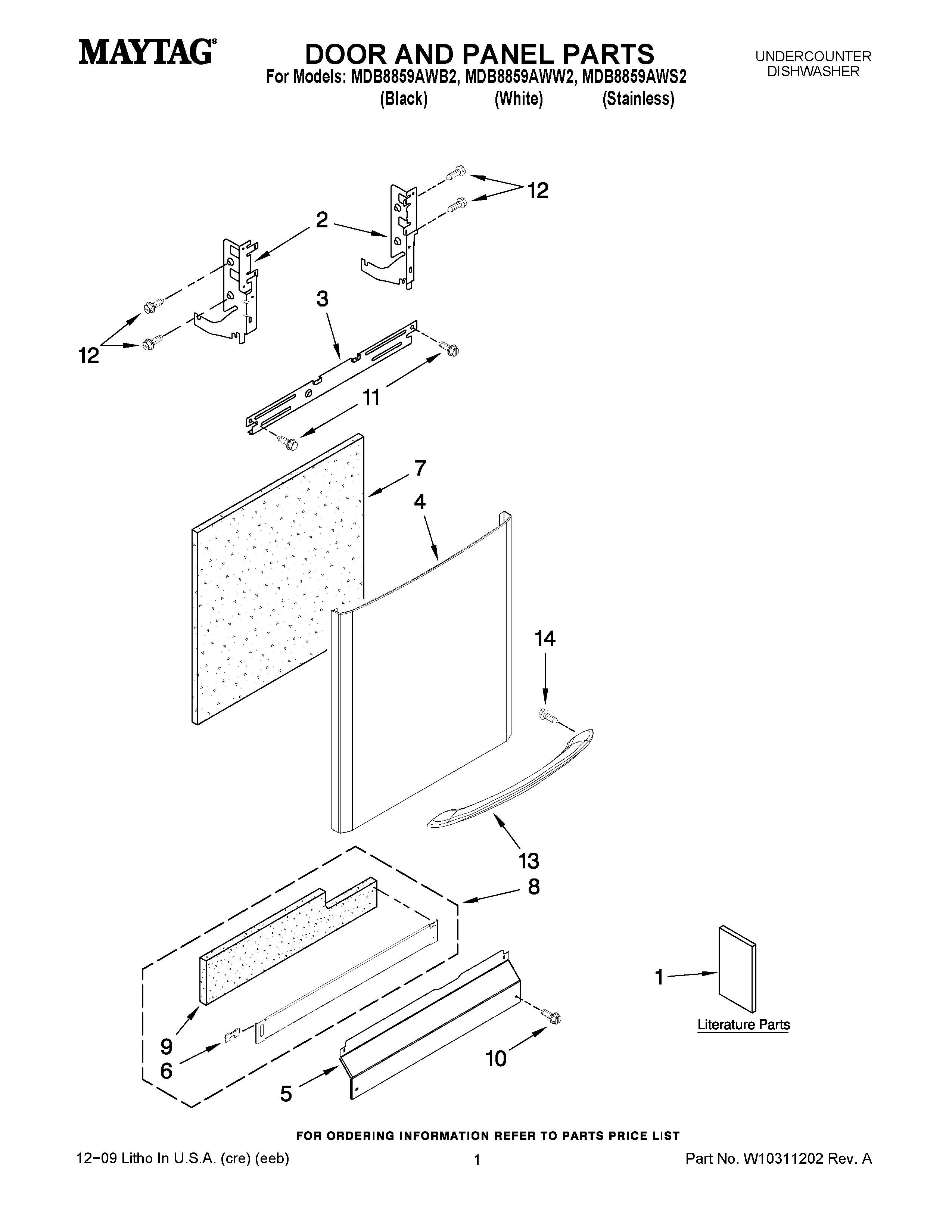

MDB8859AWS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10255067
1MAY W10199707
1MAY W10199659
1MAY W10199658
1TECH SHEET
2MAY 8534854
2MAY 8534853
3MAY 8268983
4MAY W10199769
4MAY W10199758
4MAY W10199759
5MAY 8573256
5ACCESS PANEL (BLACK)
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
11Screw
12SCREW
13MAY W10199635
13MAY W10199637
13MAY W10199639
14SCREW, SET
