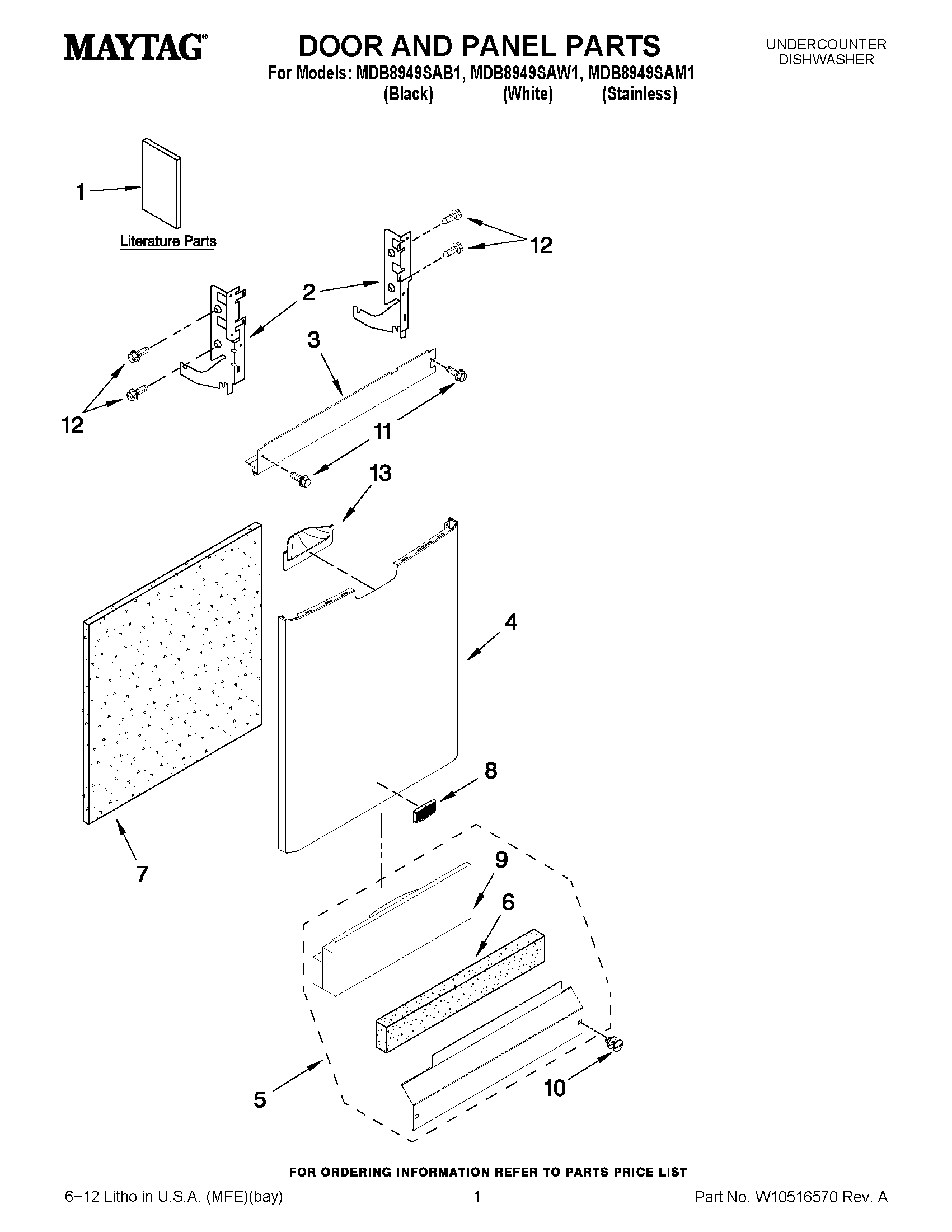

MDB8949SAB1 01 – DOOR AND PANEL PARTS

MDB8949SAB1 01 – DOOR AND PANEL PARTS

Written by

in

MDB8949SAB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10438314
1MAY W10490737
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1MAY W10401504
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
5MAY W10368715
5MAY W10368716
6INSULATION, TOE PANEL
7MAY W10073520
8BADGE (BLACK)
9MAY W10350437
10SCREW (WHITE)
10SCREW (BLACK)
11Screw
12SCREW
13MAY W10343320
13MAY W10343322
13MAY W10424843
