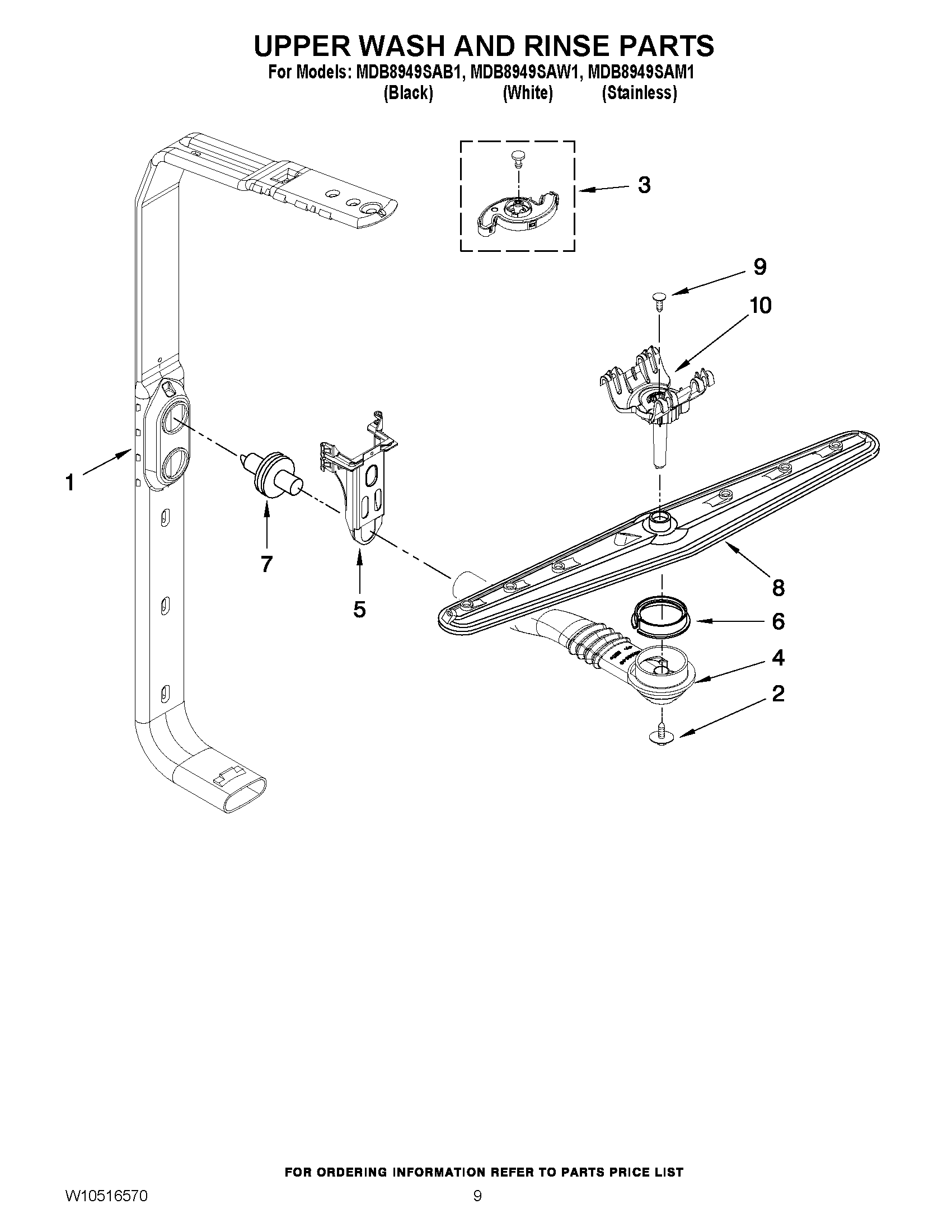

MDB8949SAW1 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	FEED TUBE SILVERWARE ZONE (ALSO INCLUDES ITEM 3 & 11)
2	MAY W10349488
3	SPRAYARM, 3RD LEVEL
4	MAY W10240137
5	MAY W10199807
6	MAY 8268433
7	MAY W10082831
8	SPRAY ARM
9	RETAINER, PUSH-IN
10	MAY W10199808
