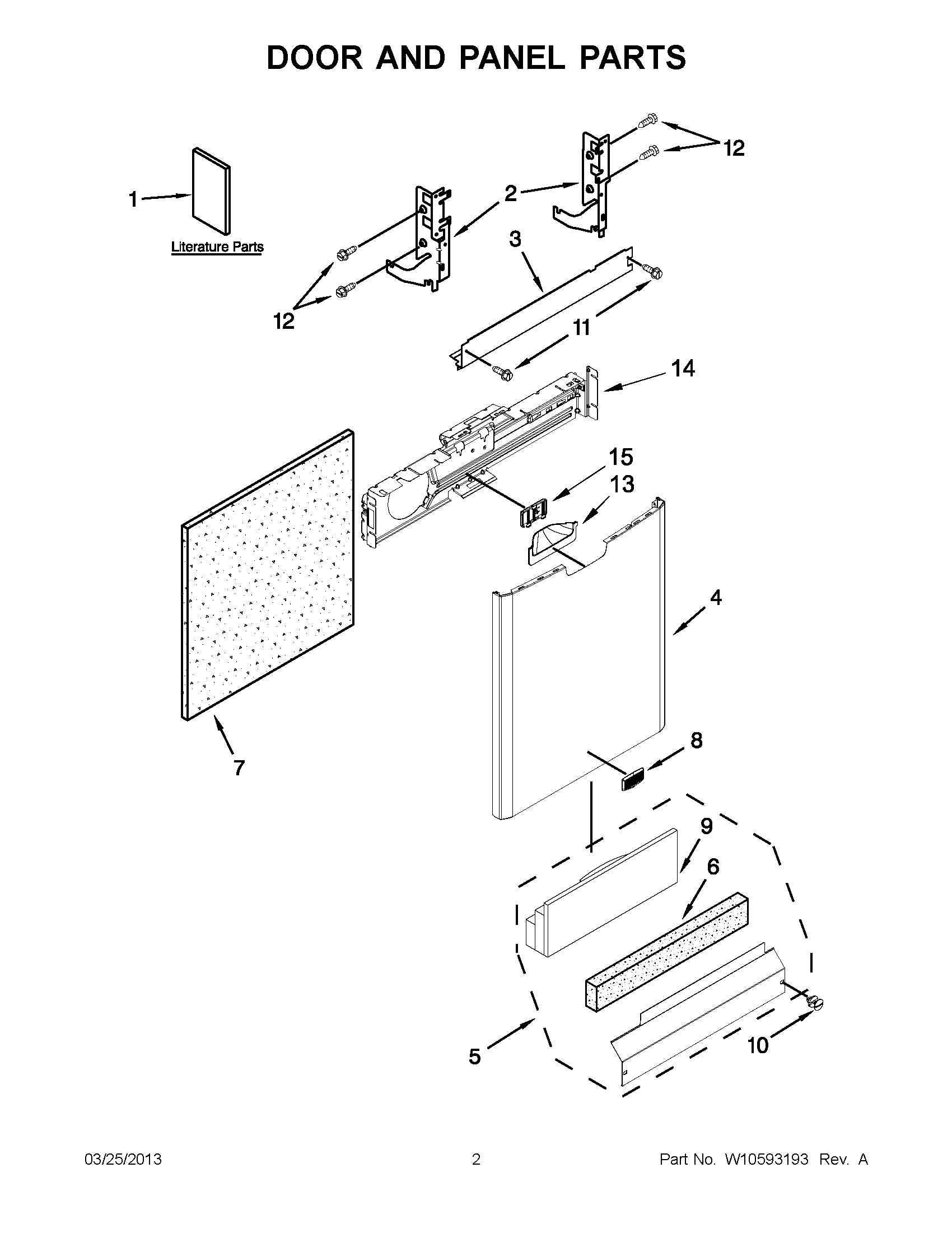

MDB8949SBB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10580510
1MAY W10580509
1MAY W10555178
1MAY W10401491
1MAY W10532762
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
5MAY W10368715
5MAY W10368716
6INSULATION, TOE PANEL
7INSULATION, FRONT PANEL
8BADGE (BLACK)
9MAY W10350437
10MAY W10503549
10MAY W10503548
11Screw
12SCREW
13MAY W10343320
13MAY W10343322
13MAY W10424843
14BRACKET, CONTROL
15MAY W10463662
