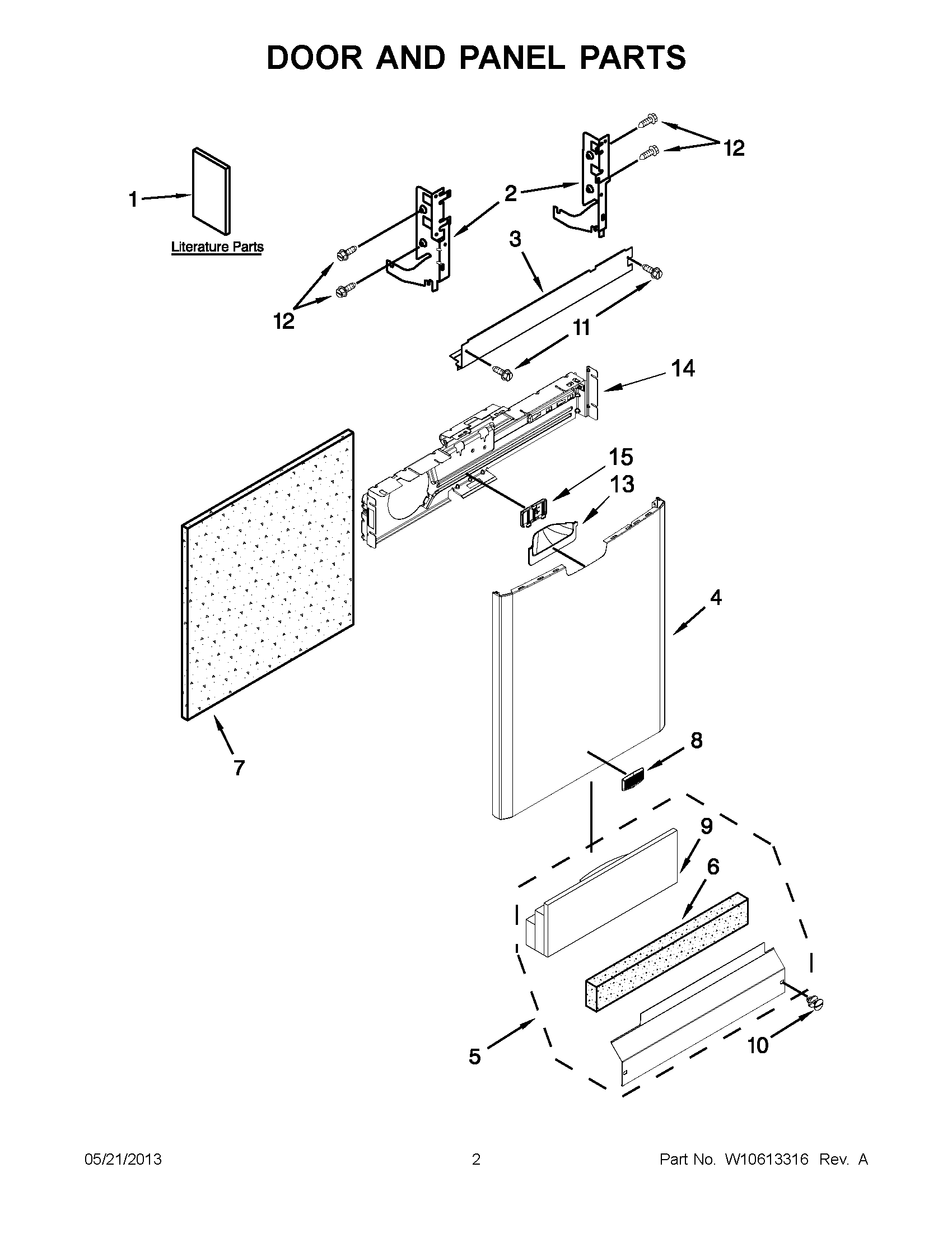

MDB8949SBB2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10596271
1	MAY W10555178
1	MAY W10532762
1	MAY W10580509
1	MAY W10580510
2	MAY 8534854
2	MAY 8534853
3	VAPOR BARRIER ASSEMBLY
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
5	MAY W10368715
5	MAY W10368716
6	INSULATION, TOE PANEL
7	INSULATION, FRONT PANEL
8	BADGE (BLACK)
9	MAY W10350437
10	MAY W10503549
10	MAY W10503548
11	Screw
12	SCREW
13	MAY W10343320
13	MAY W10343322
13	MAY W10571386
14	BRACKET, CONTROL
15	MAY W10463662
