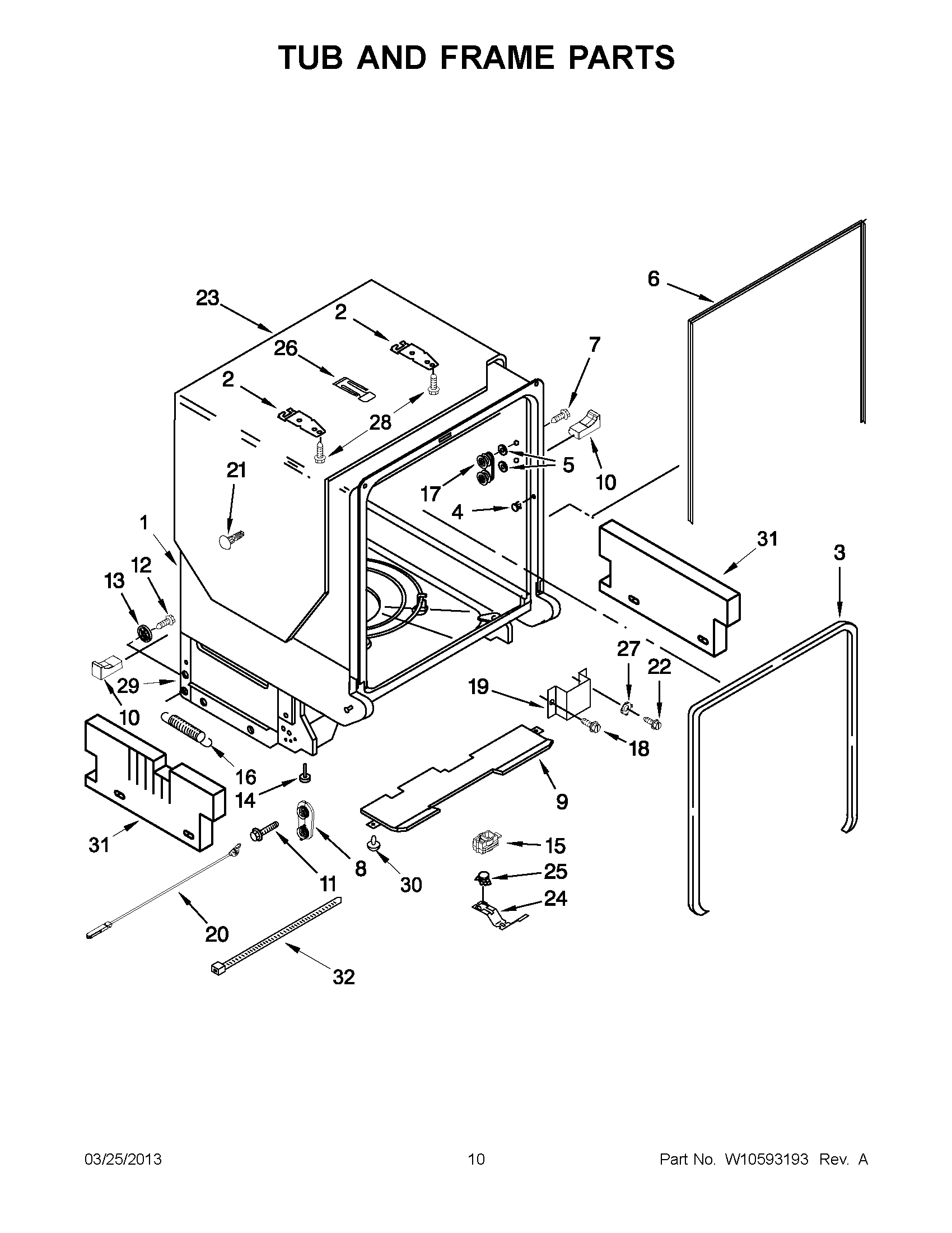

MDB8949SBM1 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10511187
2MAY 8269145
3SEAL, DOOR
4MAY W10082838
5MAY 9743002
6SEAL, CABINET
7MAY W10309090
8DOOR BALANCE ASSEMBLY
9INSULATION BOTTOM
10SPACER, TUB/BRACE (RIGHT)
10SPACER, TUB/BRACE (LEFT)
11SCREW
12MAY W10348411
13WHEEL, LEG
14MAY W10304228
15MAY W10292870
16MAY 8270020
17WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18MAY 3400892
19MAY 8268991
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22MAY 3400014
23MAY 8573239
24MAY W10300703
25MAY W10339563
26STRIKE, PLATE
27WASHER, PRONGED CUP
28MAY 3367670
29MAY W10398392
30MAY 3400924
31SIDE SHIELD (RIGHT AND LEFT)
32MAY 8539404
