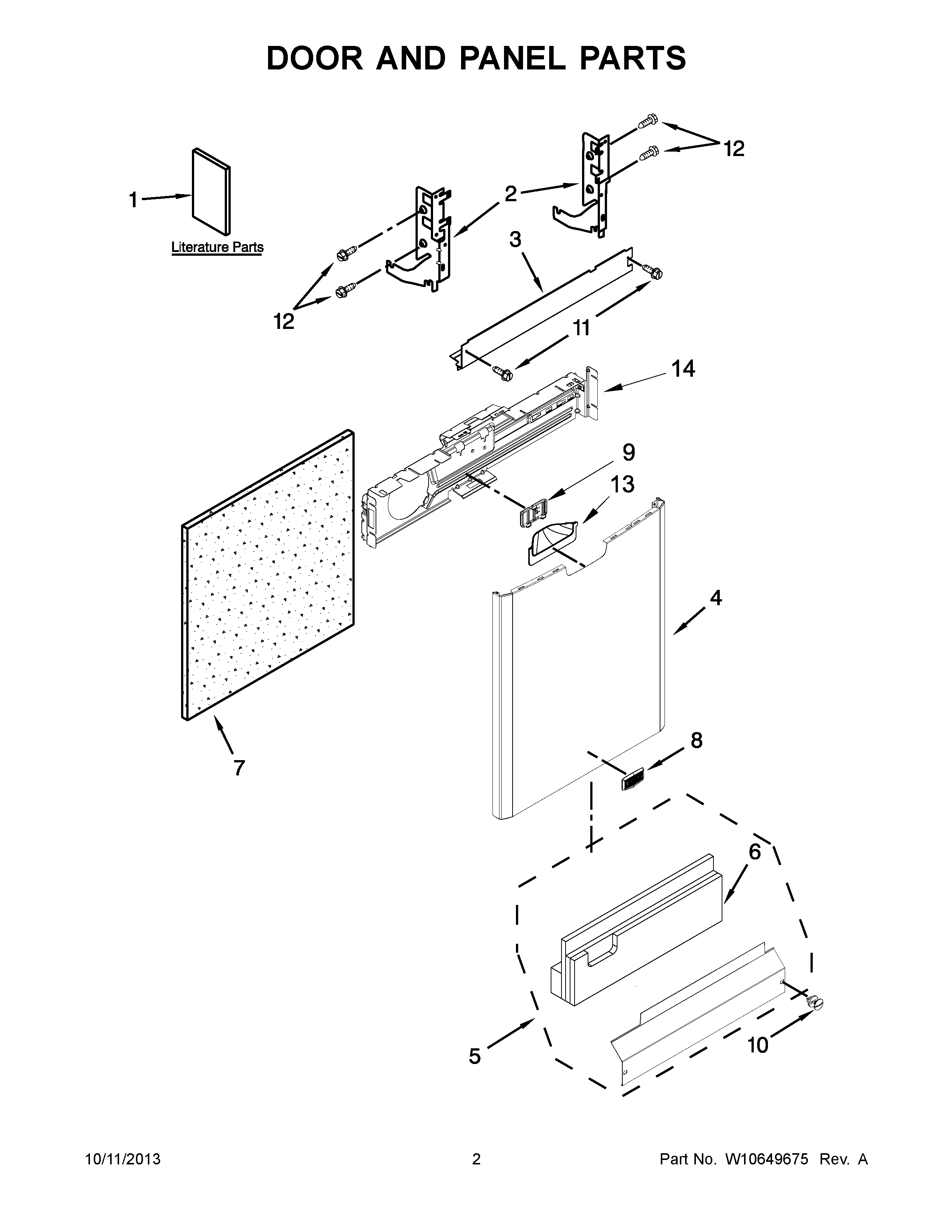

MDB8949SBM3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10580510
1MAY W10596229
1MAY W10638719
1MAY W10532762
1MAY W10580509
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
5MAY W10526114
5MAY W10526115
6INSULATION, FOUR LAYER
7INSULATION, FRONT PANEL
8BADGE (BLACK)
9MAY W10463662
10MAY W10503548
10MAY W10503549
11Screw
12SCREW
13MAY W10343322
13MAY W10343320
13MAY W10571386
14BRACKET, CONTROL
