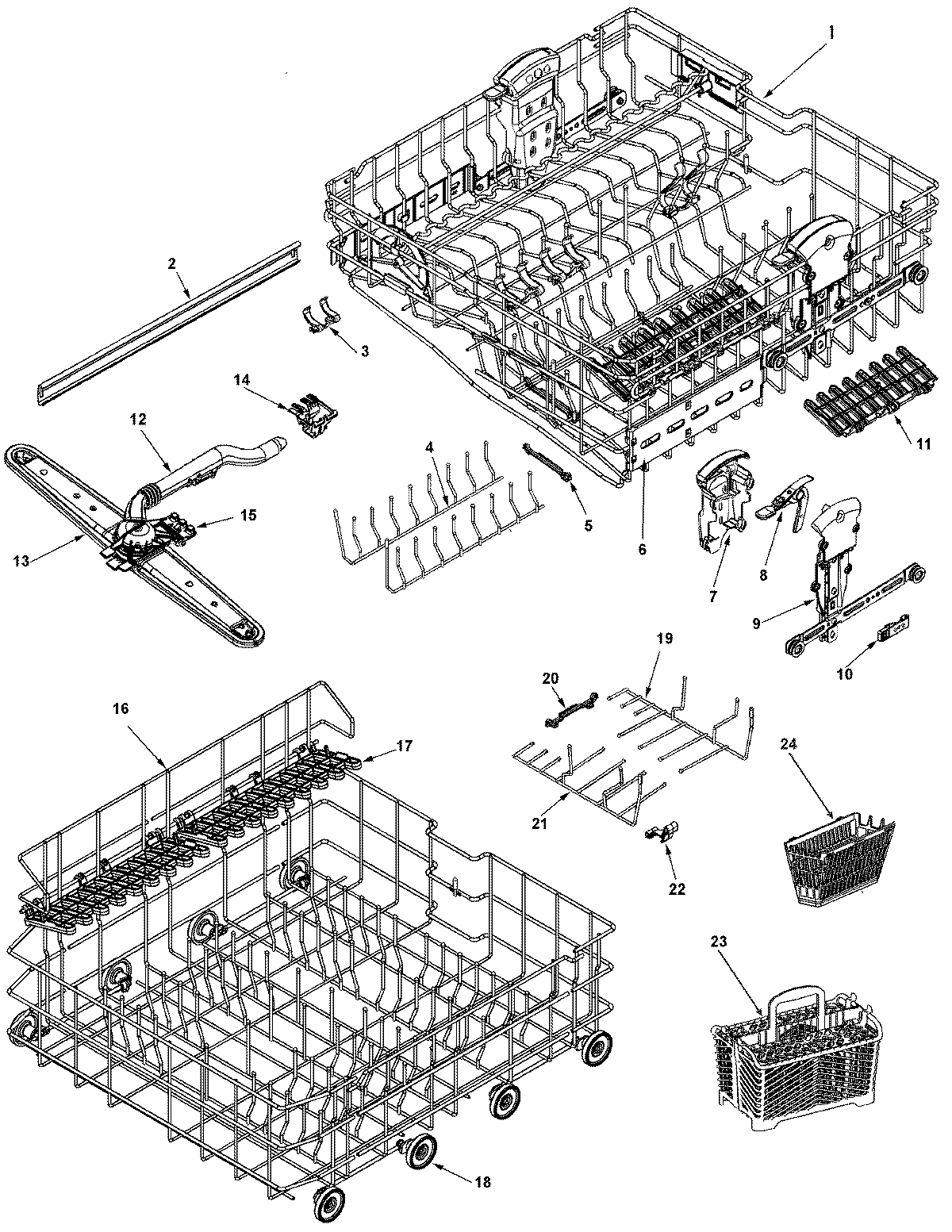

MDB8951AWQ 03 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003459
1	MAY 99003462
1	MAY 99003460
2	WP99003281 Whirlpool Gray Rail Stop
2	WP99003068 Whirlpool Dishwasher Bearing
2	MAY 99003066
2	MAY 99003069
4	MAY 99003485
5	WP99002709 Whirlpool Tine Pivot Clip
5	WP99003484 Whirlpool Dishwasher Folding Tine Clip
6	MAY 99003053
6	MAY 99003052
7	MAY 99003011
8	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
9	WPW10153533 Whirlpool Dishwasher Adjuster
9	MAY 99003010
9	MAY 99003199
10	MAY 99003020
11	MAY 99002671
12	WASH MANIFOLD ASSY (UPR)
13	WP99003070 Whirlpool Dishwasher Wash Arm
14	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
15	CLIP, UPR WASH MANIFOLD (FRT)
16	MAY 99002905
16	MAY 99003494
17	MAY 99003495
18	WP99003149 Whirlpool Rack Wheel
19	WP99003497 Whirlpool Dishwasher Tine Row
20	WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
21	WP99003496 Whirlpool Convertible Row Tine
22	WP99002687 Whirlpool Tine Pivot Clip
23	WP6-918873 Whirlpool Silverware Basket
23	MAY 99002683
23	MAY 99002697
24	W11175758 Whirlpool Dishwasher Basket Ware
