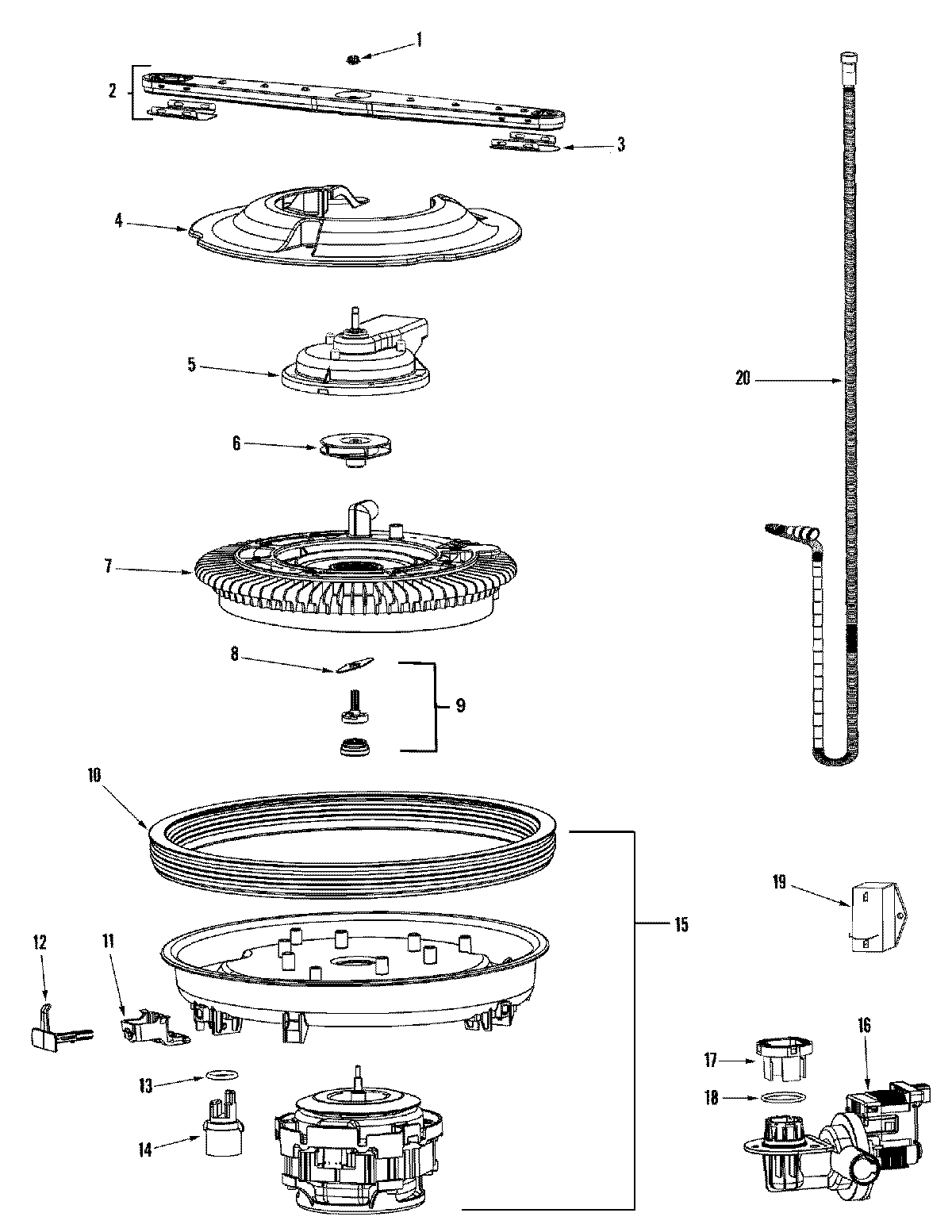

MDB8951AWW 02 – PUMP & MOTOR

Products

Position	Product
1	WP99002654 Whirlpool Nut
2	WP6-917642 Whirlpool Dishwasher Wash Arm
3	MAY 99002653
4	MAY 99002666
4	WPW10166788 Whirlpool Dishwasher Filter Frame
5	DISCHARGE HOUSING ASSY (UPR)
5	SCREW, DISCHARGE HOUSING
6	WP99002659 Whirlpool Impeller
6	MAY 99002987
7	WPW10192799 Whirlpool Dishwasher Accumulator
7	SCREW, STAINLESS PAN HEAD
8	MAY 99003427
9	MAY 99003341
10	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
11	MAY 99003056
12	MAY 99003057
13	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
14	WPW10120019 Whirlpool Dishwasher Sensor
14	WP3400065 Whirlpool Refrigerator Screw
15	Wash Motor Assy.
16	MAY 99002815
16	DRAIN PUMP ASSEMBLY
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY 99003309
18	MAY 99002857
19	CAPACITOR, MOTOR
19	SCREW 10-32X.400 (T-20 HEAD)
19	MAY 99003440
20	WP99002656 Whirlpool Dishwasher Drain Clamp
20	WP99002652 Whirlpool Drain Hose
