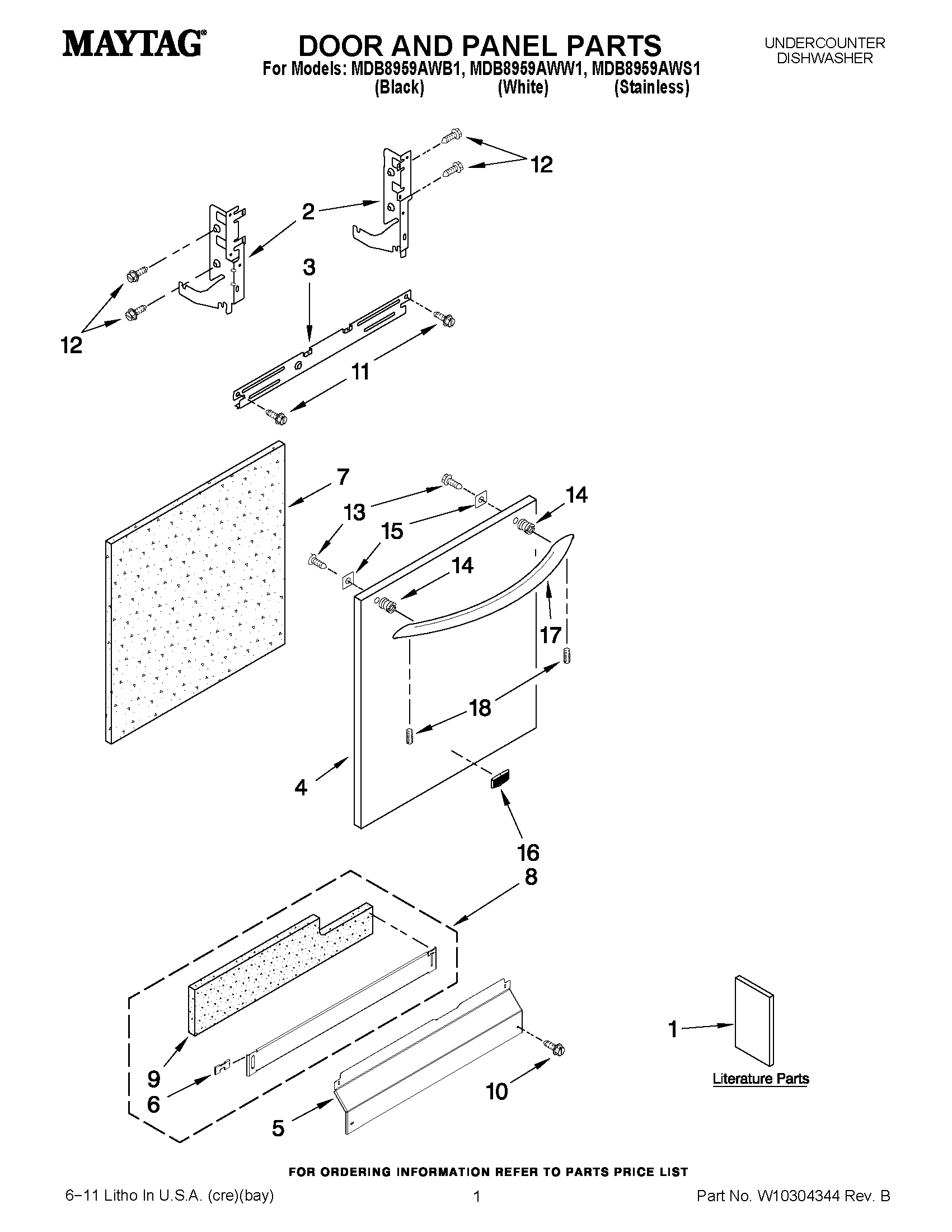

MDB8959AWB1 01 – DOOR AND PANEL PARTS

MDB8959AWB1 01 – DOOR AND PANEL PARTS

Written by

in

MDB8959AWB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10199659
1MAY W10255067
1TECH SHEET
1MAY W10199658
1MAY W10199707
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10199768
4MAY W10199762
4MAY W10199769
5ACCESS PANEL (BLACK)
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
11Screw
12SCREW
13MAY W10123421
14STUD, MOUNTING
15PLATE, BACKING
16MAY W10199708
17MAY W10199634
17MAY W10199636
17MAY W10199638
18SCREW, SET
