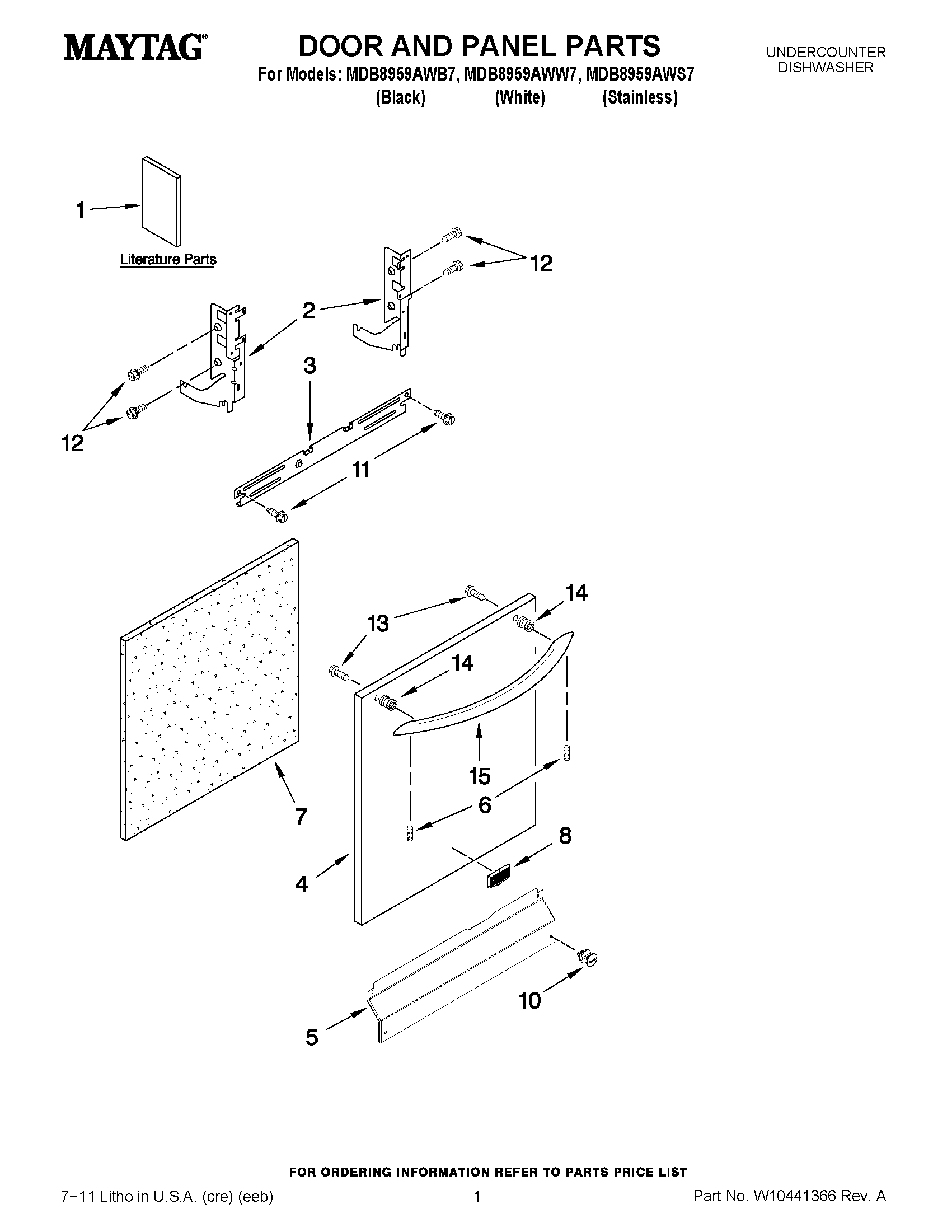

MDB8959AWB7 01 – DOOR AND PANEL PARTS

MDB8959AWB7 01 – DOOR AND PANEL PARTS

Written by

in

MDB8959AWB7 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10398588
1	MAY W10329314
1	MAY W10199659
1	MAY W10199658
1	TECH SHEET
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10406152
4	MAY W10406151
4	MAY W10406150
5	MAY W10369024
5	ACCESS PANEL (WHITE)
6	SCREW, SET
7	MAY W10073520
8	MAY W10199708
10	SCREW (WHITE)
10	SCREW (BLACK)
11	Screw
12	SCREW
13	MAY W10316572
14	MAY W10195726
15	MAY W10324627
15	MAY W10324628
15	MAY W10324630
