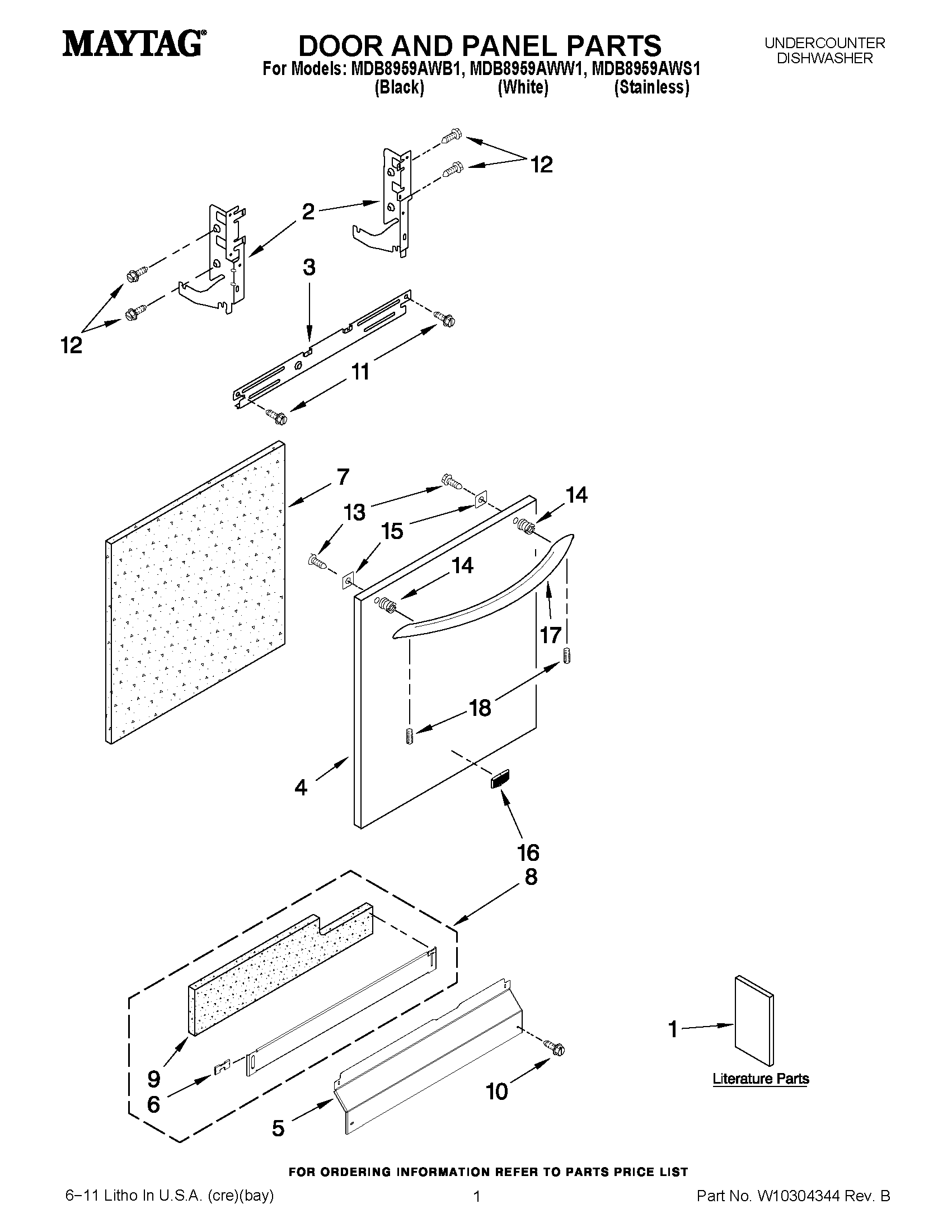

MDB8959AWS1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10199659
1	MAY W10255067
1	TECH SHEET
1	MAY W10199658
1	MAY W10199707
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10199768
4	MAY W10199762
4	MAY W10199769
5	ACCESS PANEL (BLACK)
6	CLIP, GROUNDING
7	MAY W10073520
8	TOE PANEL (INCLUDES ITEM 9) (BLACK)
9	INSULATION, ACCESS PANEL
10	SCREW (BLACK)
11	Screw
12	SCREW
13	MAY W10123421
14	STUD, MOUNTING
15	PLATE, BACKING
16	MAY W10199708
17	MAY W10199634
17	MAY W10199636
17	MAY W10199638
18	SCREW, SET
