MDB8959AWS4 01 – DOOR AND PANEL PARTS

MDB8959AWS4 01 – DOOR AND PANEL PARTS

Written by

in

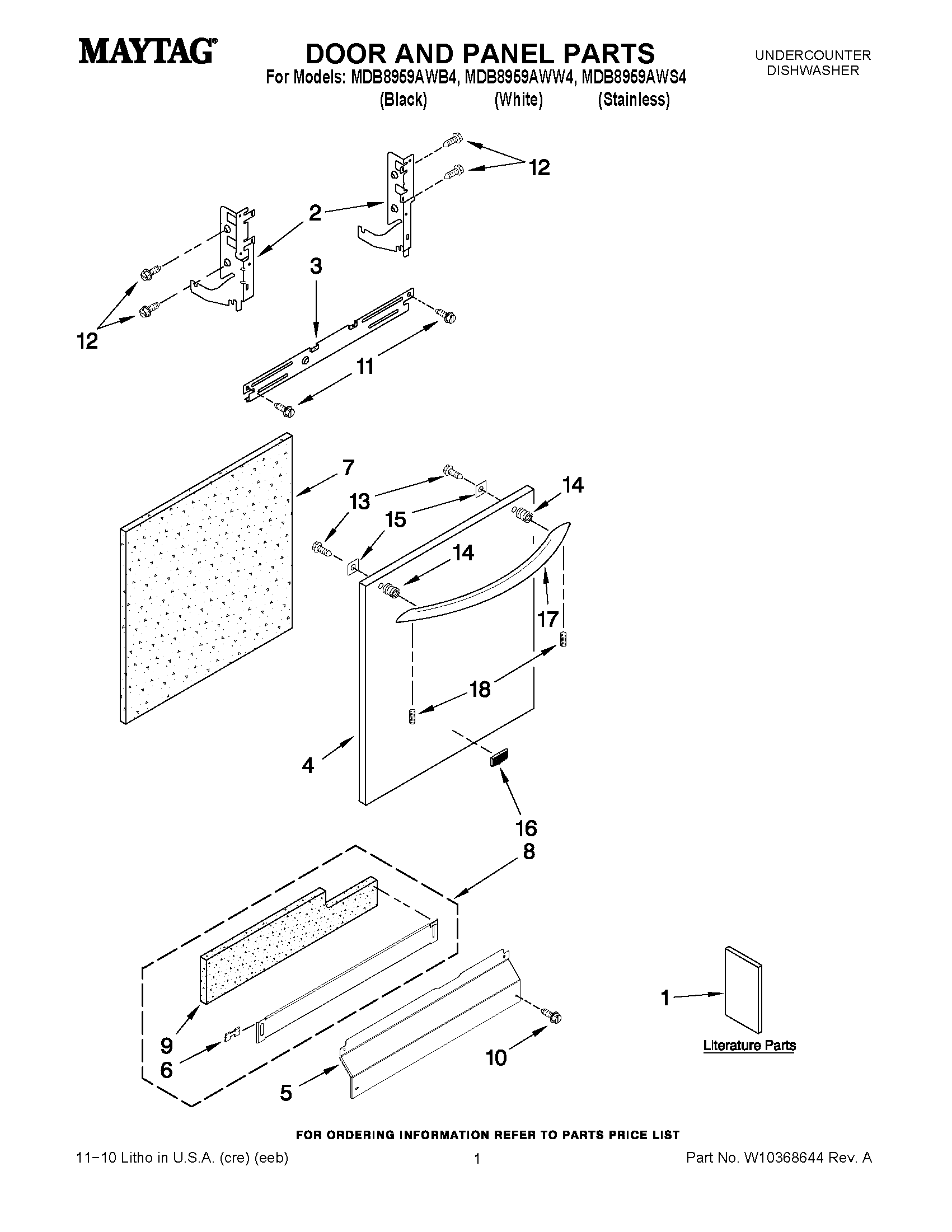

MDB8959AWS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10300272
1MAY W10284980
1MAY W10199659
1MAY W10199658
1TECH SHEET
2MAY 8534854
2MAY 8534853
3MAY 8268983
4MAY W10199768
4MAY W10199769
4MAY W10199762
5MAY W10195777
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
11Screw
12SCREW
13MAY W10123421
14STUD, MOUNTING
15PLATE, BACKING
16MAY W10199708
17MAY W10199635
17MAY W10199637
17MAY W10199639
18SCREW, SET
