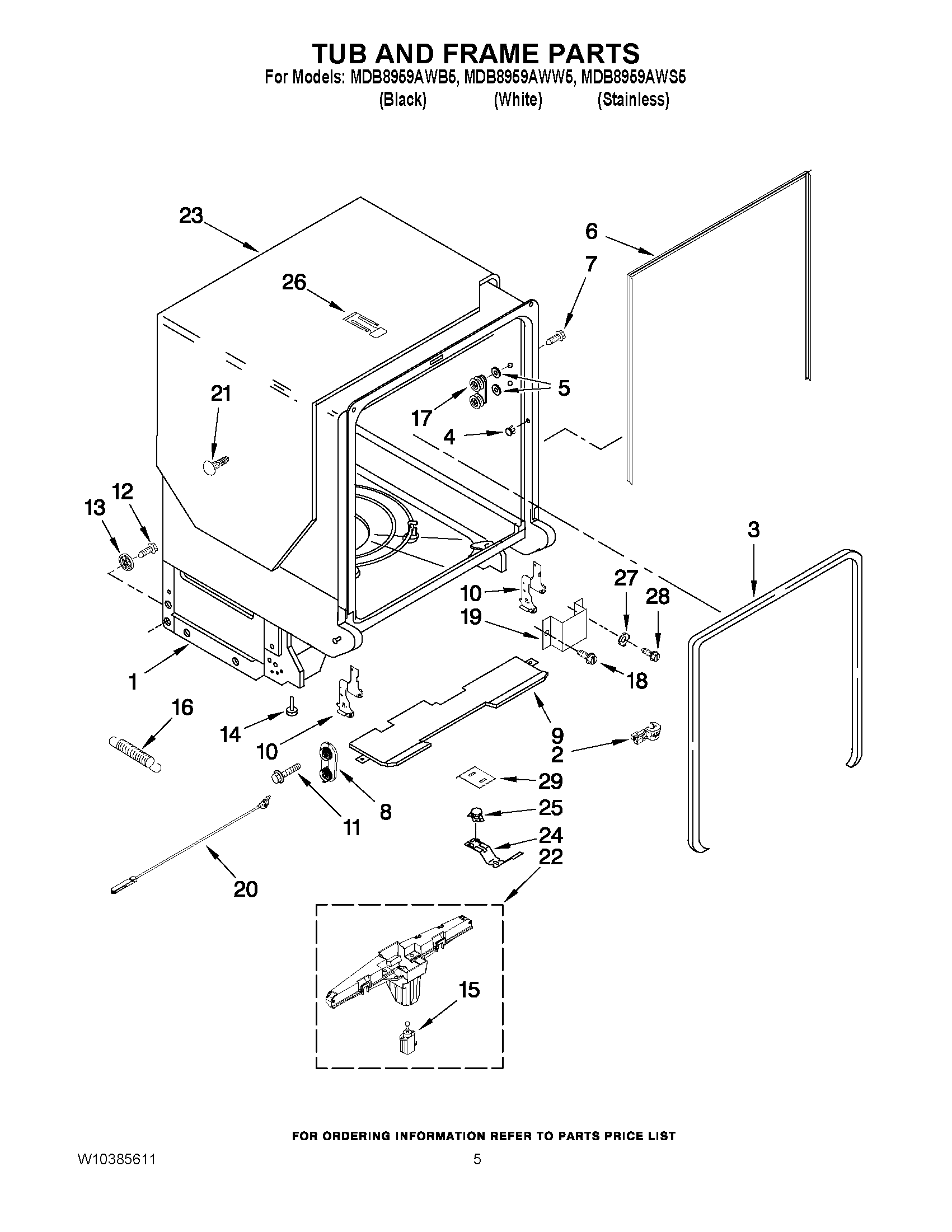

MDB8959AWW5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	MAY 8573061
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	INSULATION BOTTOM
10	MAY W10185369
10	MAY W10185368
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
15	MAY W10082769
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	ACTUATOR ASSY (INCLUDES ITEM 15)
23	MAY 8573241
24	MAY 9742648
25	MAY 661566
26	MAY W10317686
27	WASHER, PRONGED CUP
28	MAY 3400014
29	MAY W10321574
