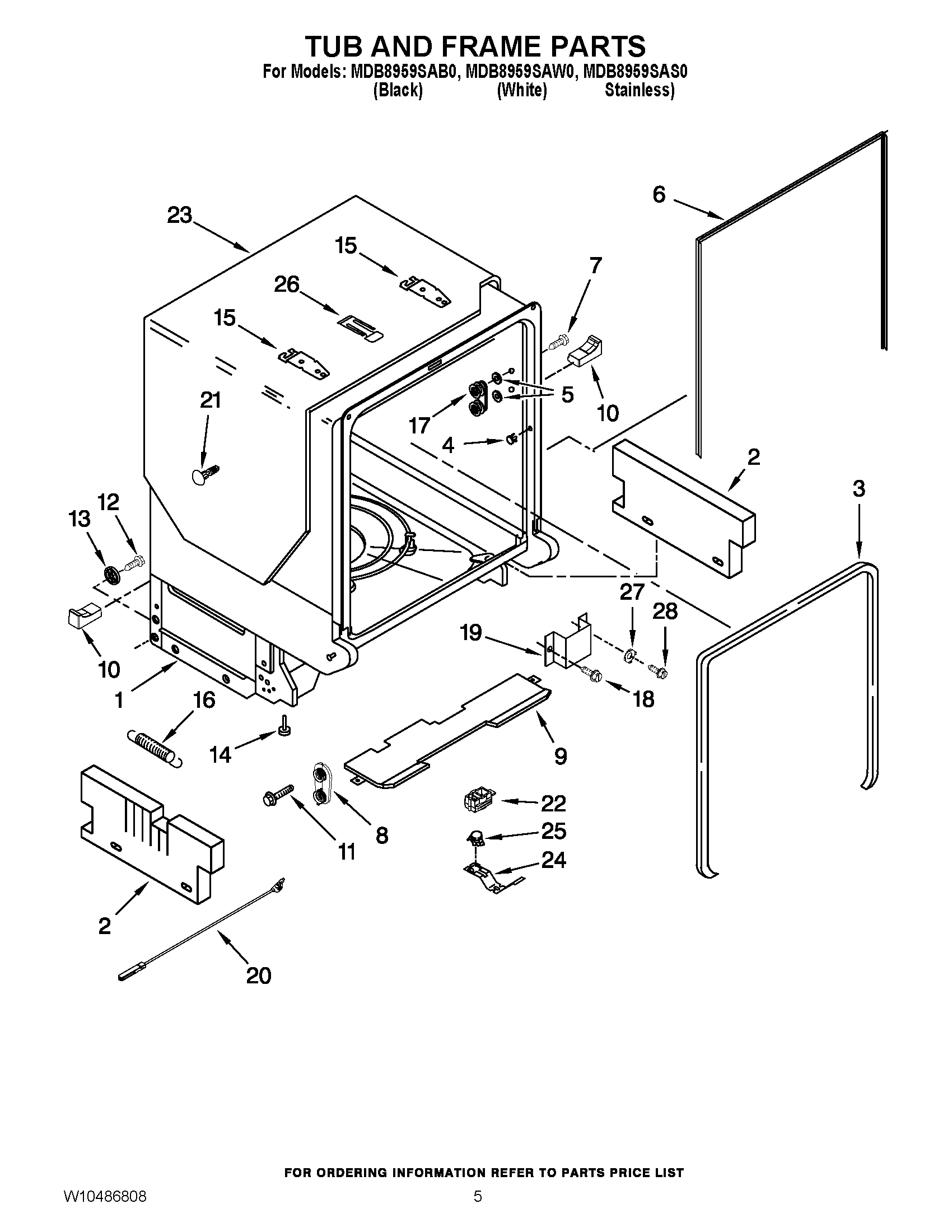

MDB8959SAW0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10390308
2	SIDE SHIELD (RIGHT AND LEFT)
3	SEAL, DOOR
4	MAY W10082838
5	MAY 9743002
6	SEAL, CABINET
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	INSULATION BOTTOM
10	SPACER, TUB/BRACE (RIGHT)
10	SPACER, TUB/BRACE (LEFT)
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY 8524584
15	MAY 8269145
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	MAY W10292870
23	MAY 8573239
24	MAY W10300703
25	MAY W10339563
26	STRIKE, PLATE
27	WASHER, PRONGED CUP
28	MAY 3400014
