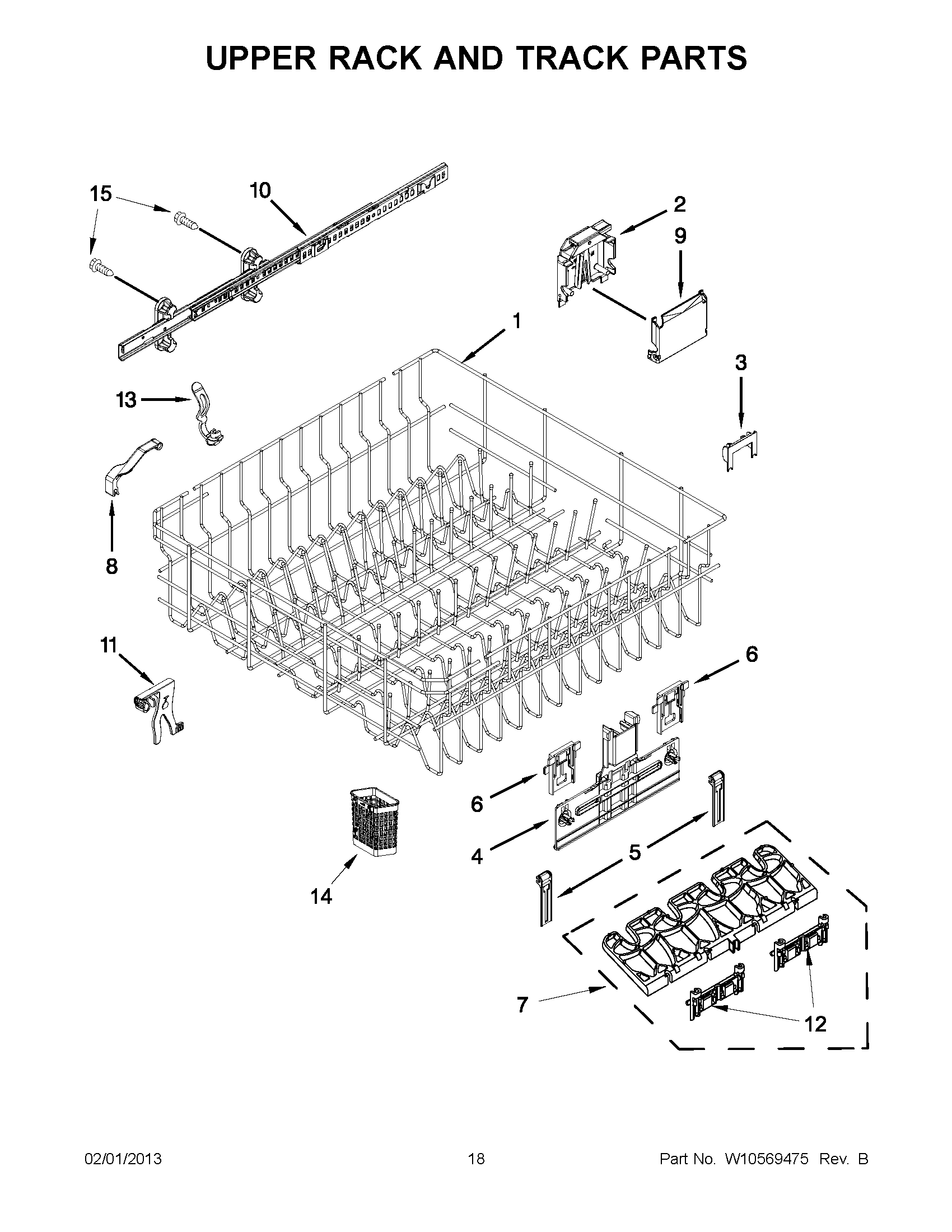

MDB8959SBB0 09 – UPPER RACK AND TRACK PARTS

MDB8959SBB0 09 – UPPER RACK AND TRACK PARTS

Written by

in

MDB8959SBB0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1MAY W10350382
2MAY W10195373
2MAY W10195372
3CLIP-LOCK ADJUSTER ARM
4MAY W10306646
5MAY W10195839
6POSITIONER, ADJUSTER
7CUPSHELF ASSEMBLY
8CLIP, DISPENSER GUARD
9MAY W10250162
10TRACK ASSEMBLY (LEFT HAND)
10TRACK ASSEMBLY (RIGHT HAND)
11MAY W10158385
12CLIP, CUPSHELF
13MAY W10372814
14BASKET, UTENSIL
15MAY W10309090
