MDB8959SBB2 05 – TUB AND FRAME PARTS

MDB8959SBB2 05 – TUB AND FRAME PARTS

Written by

in

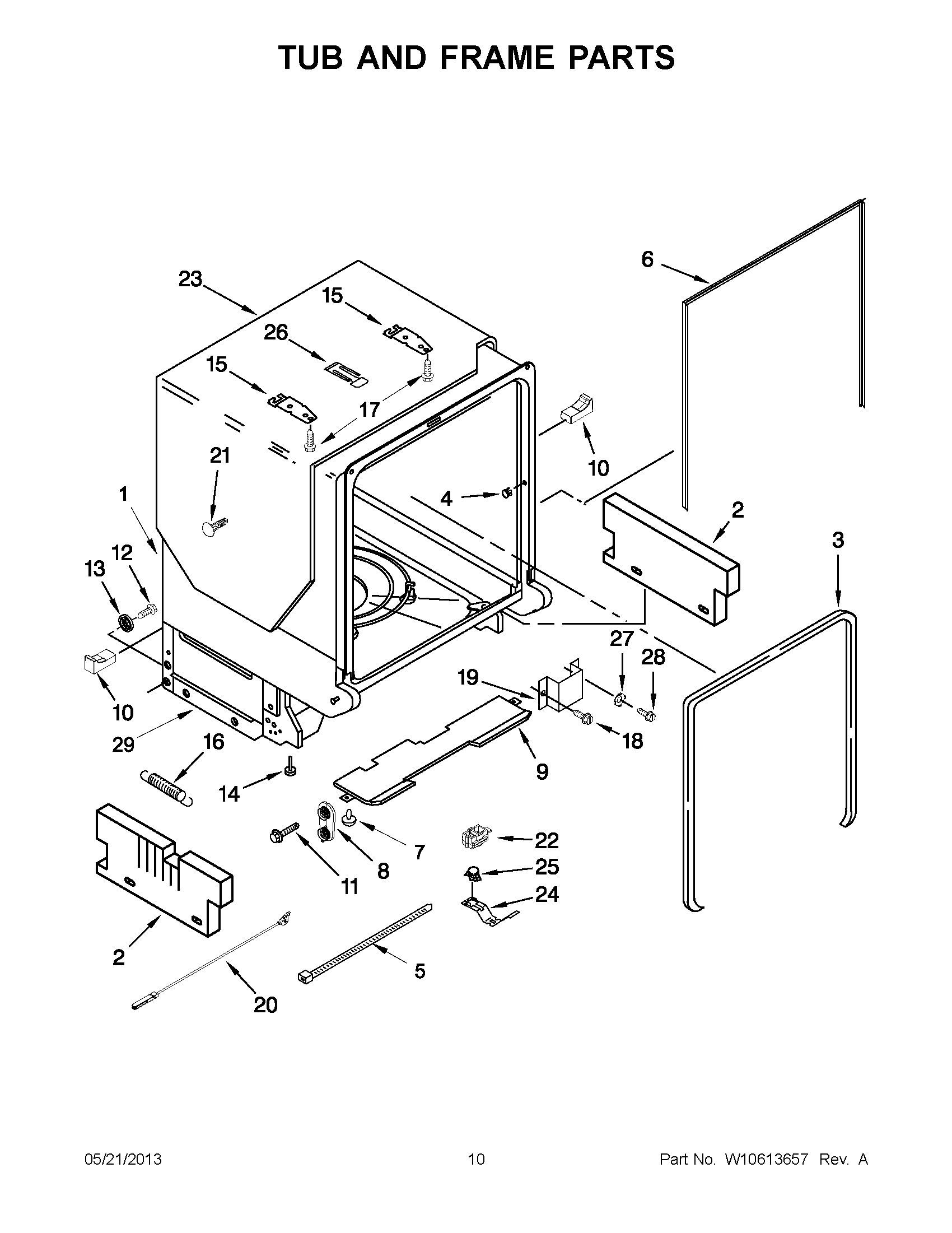

MDB8959SBB2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10511187
2SIDE SHIELD (RIGHT AND LEFT)
3SEAL, DOOR
4MAY W10082838
5MAY 8539404
6SEAL, CABINET
7MAY 3400924
8DOOR BALANCE ASSEMBLY
9INSULATION BOTTOM
10SPACER, TUB/BRACE (RIGHT)
10SPACER, TUB/BRACE (LEFT)
11SCREW
12MAY W10348411
13WHEEL, LEG
14MAY W10304228
15MAY 8269145
16MAY 8270020
17MAY 3367670
18MAY 3400892
19MAY 8268991
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22MAY W10292870
23MAY 8573239
24MAY W10300703
25MAY W10339563
26STRIKE, PLATE
27WASHER, PRONGED CUP
28MAY 3400014
29MAY W10398392
