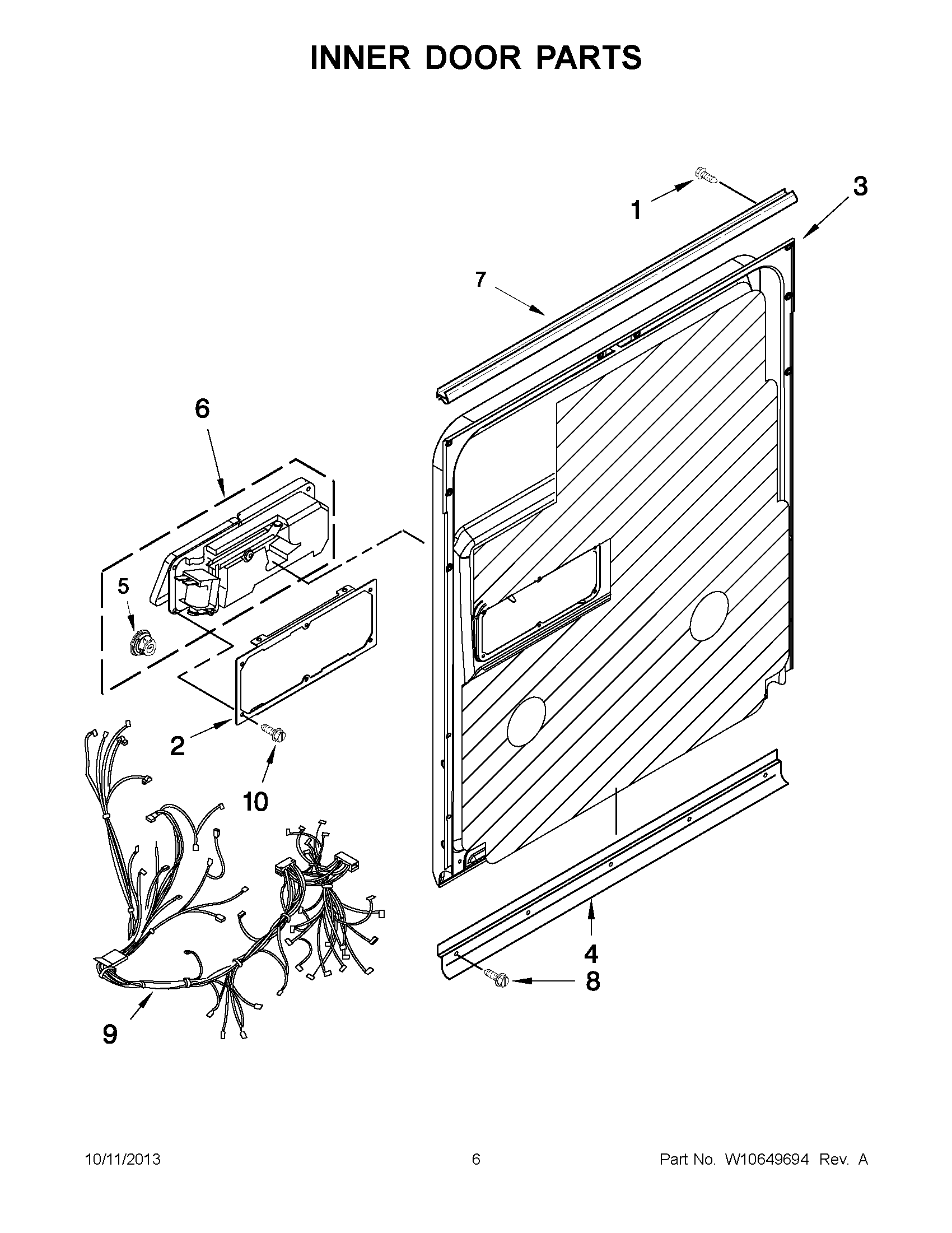

MDB8959SBB3 04 – INNER DOOR PARTS
Products
| Position | Product |
|---|---|
| 1 | SCREW |
| 2 | BRACKET, DISPENSER |
| 3 | INNER DOOR |
| 4 | SEAL, DOOR BOTTOM |
| 5 | MAY W10524922 |
| 6 | MAY W10304407 |
| 7 | MAY W10195007 |
| 8 | MAY 8281217 |
| 9 | MAY W10496098 |
| 10 | MAY W10177098 |
MDB8959SBB3 04 – INNER DOOR PARTS
| Position | Product |
|---|---|
| 1 | SCREW |
| 2 | BRACKET, DISPENSER |
| 3 | INNER DOOR |
| 4 | SEAL, DOOR BOTTOM |
| 5 | MAY W10524922 |
| 6 | MAY W10304407 |
| 7 | MAY W10195007 |
| 8 | MAY 8281217 |
| 9 | MAY W10496098 |
| 10 | MAY W10177098 |
