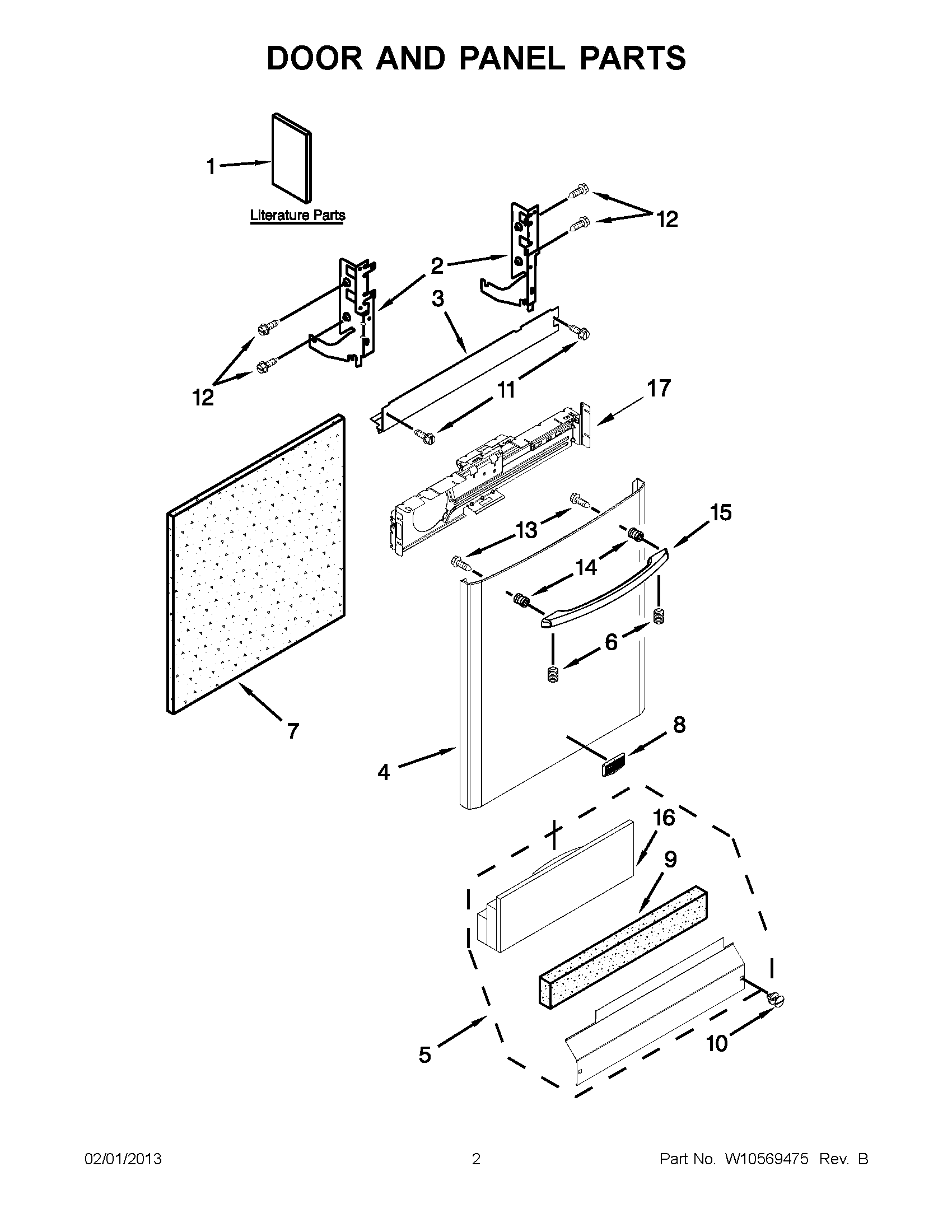

MDB8959SBS0 01 – DOOR AND PANEL PARTSadmin2025-04-26T10:02:01+00:00MDB8959SBS0 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | TECH SHEET (FRENCH) |
| 1 | MAY W10532762 |
| 1 | MAY W10401491 |
| 1 | MAY W10555178 |
| 1 | TECH SHEET (ENGLISH) |
| 2 | MAY 8534854 |
| 2 | MAY 8534853 |
| 3 | VAPOR BARRIER ASSEMBLY |
| 4 | PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (BLACK) |
| 4 | PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (STAINLESS) |
| 4 | PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (WHITE) |
| 5 | MAY W10368716 |
| 5 | MAY W10368715 |
| 6 | SCREW, SET |
| 7 | INSULATION, FRONT PANEL |
| 8 | BADGE (BLACK) |
| 9 | INSULATION, TOE PANEL |
| 10 | MAY W10503548 |
| 10 | MAY W10503549 |
| 11 | Screw |
| 12 | SCREW |
| 13 | MAY W10316572 |
| 14 | MAY W10195726 |
| 15 | MAY W10461635 |
| 15 | MAY W10461636 |
| 15 | MAY W10461637 |
| 16 | MAY W10350437 |
| 17 | BRACKET, CONTROL |
