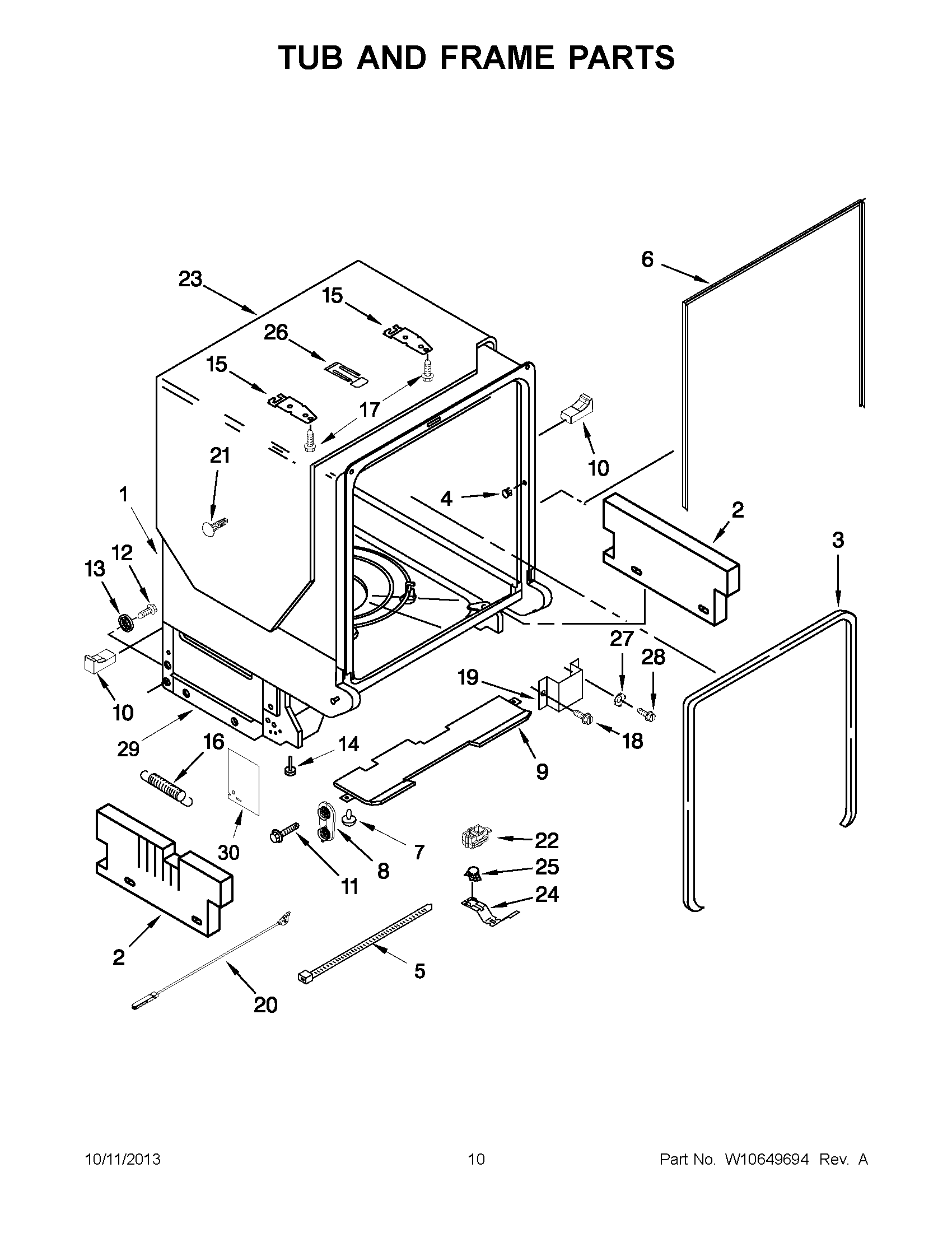

MDB8959SBW3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10511187
2	SIDE SHIELD (RIGHT AND LEFT)
3	SEAL, DOOR
4	MAY W10082838
5	MAY 8539404
6	SEAL, CABINET
7	MAY 3400924
8	DOOR BALANCE ASSEMBLY
9	INSULATION BOTTOM
10	SPACER, TUB/BRACE (LEFT)
10	SPACER, TUB/BRACE (RIGHT)
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY W10304228
15	MAY 8269145
16	MAY 8270020
17	MAY 3367670
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	MAY W10292870
23	MAY 8573239
24	MAY W10300703
25	MAY W10195091
26	STRIKE, LATCH
27	WASHER, PRONGED CUP
28	MAY 3400014
29	MAY W10398392
30	MAY W10609495
