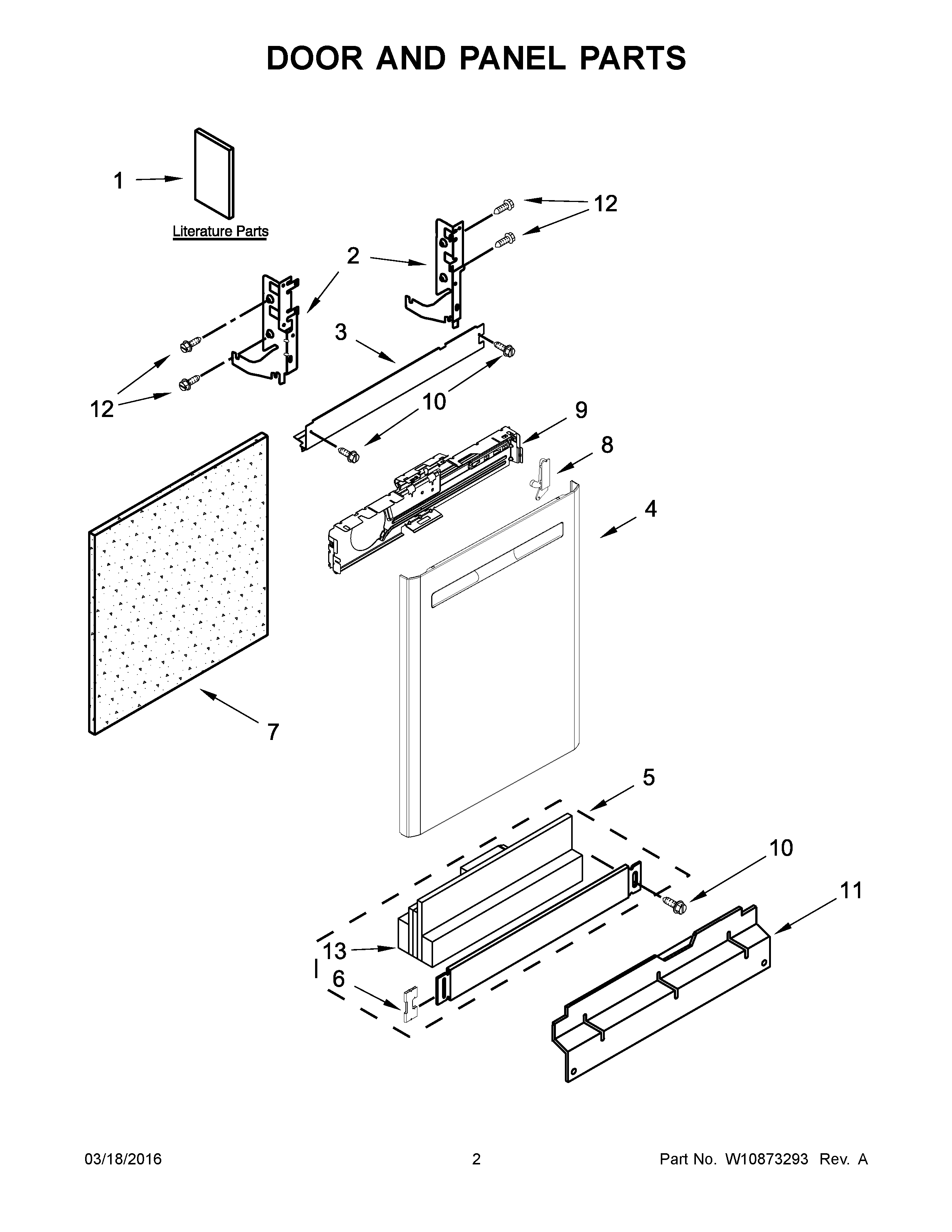

MDB8959SFE0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1D	MAY W10751165
1C	MAY W10751162
1B	MAY W10832285
1A	MAY W10832286
1	MAY W10741197
2A	MAY 8534853
2	MAY 8534854
3	BARRIER, VAPOR
4	MAY W10830494
4A	MAY W10830495
4B	MAY W10830502
5A	MAY W10586591
5	MAY W10586590
6	CLIP, GROUNDING
7	INSULATION, FRONT PANEL
8	MAY W10839529
9	MAY W10641745
10	SCREW (BLACK)
10A	WP3400836 Whirlpool Dishwasher Screw
11A	MAY W10195778
11	MAY W10195777
12	SCREW
13	MAY W10526105
