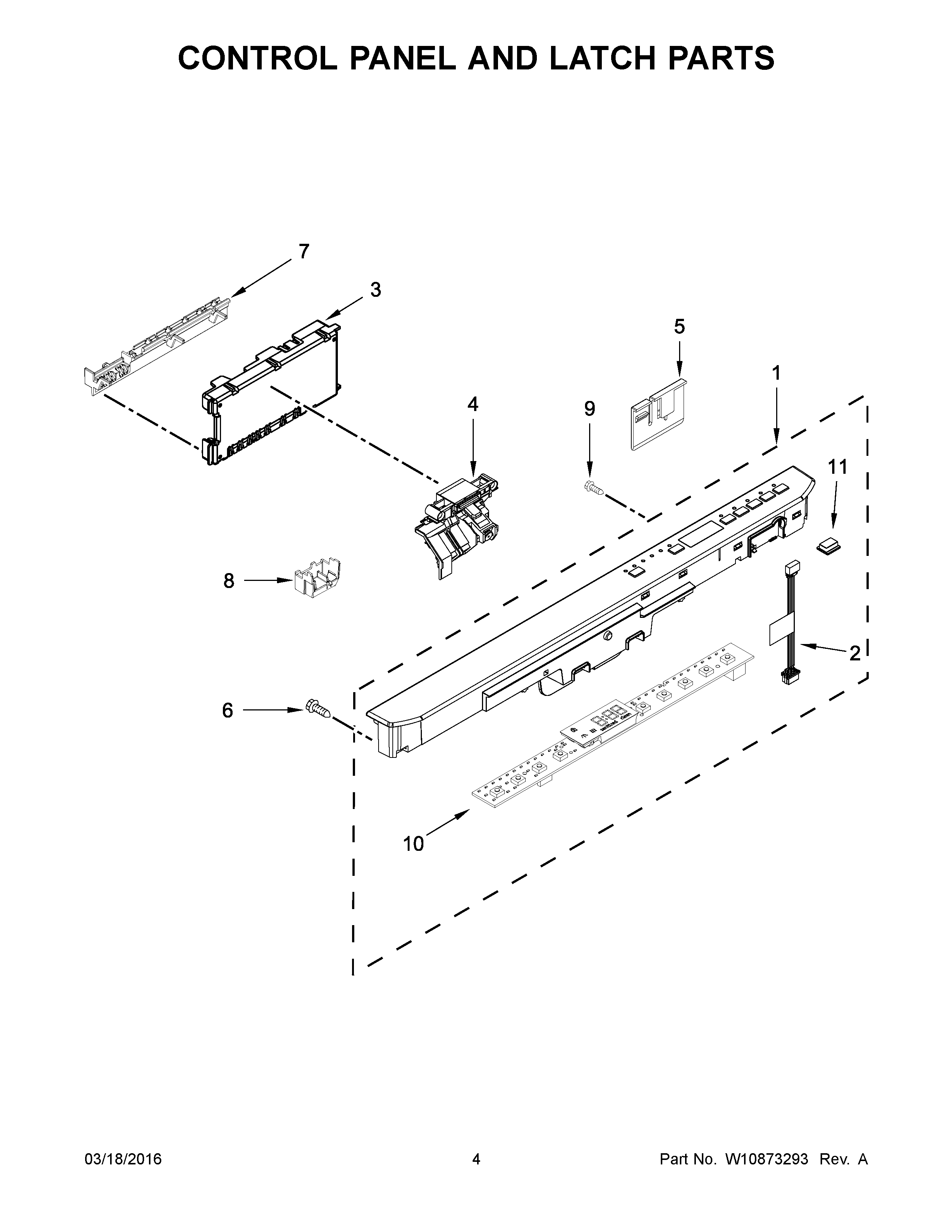

MDB8959SFE0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1MAY W10831197
1AMAY W10831198
1BMAY W10831199
2MAY W10566903
3MAY W10843730
4LATCH ASSEMBLY (INCLUDES SWITCH)
5CLIP, CONTROL
6SCREW
7MAY W10194937
8MAY W10756253
9SCREW
10MAY W10619841
11AMAY W10620464
11MAY W10613680
11BMAY W10683135
