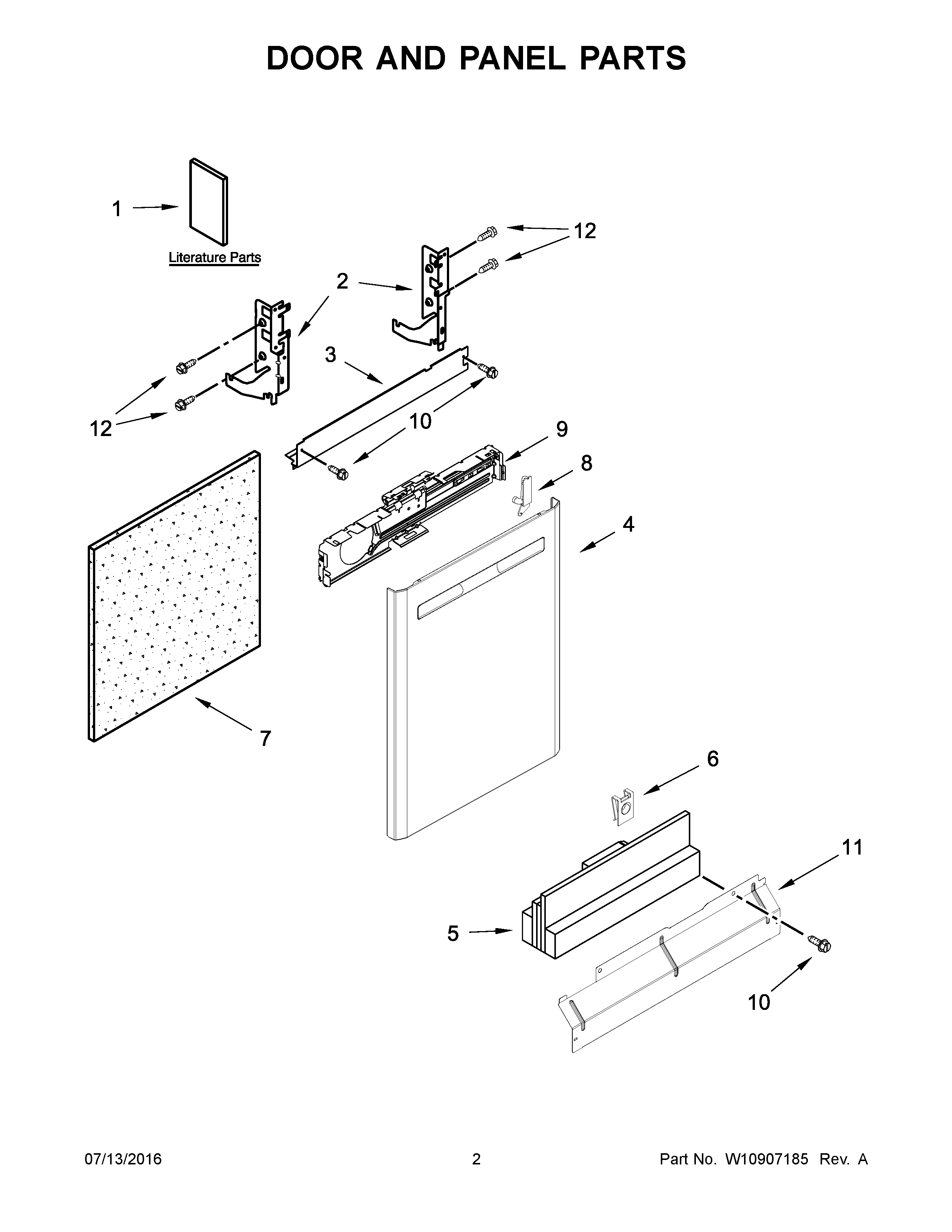

MDB8959SFE2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	MAY W10751162
1A	MAY W10879782
1	MAY W10741197
1D	MAY W10751165
1B	MAY W10832285
2A	MAY 8534853
2	MAY 8534854
3	BARRIER, VAPOR
4	MAY W10830494
4A	MAY W10830495
4B	MAY W10867164
5	MAY W10526105
6	U-NUT
7	INSULATION, FRONT PANEL
8	MAY W10839529
9	MAY W10641745
10A	WP3400836 Whirlpool Dishwasher Screw
10	SCREW (BLACK)
11A	MAY W10852732
11	ACCESS PANEL (BLACK)
12	SCREW
