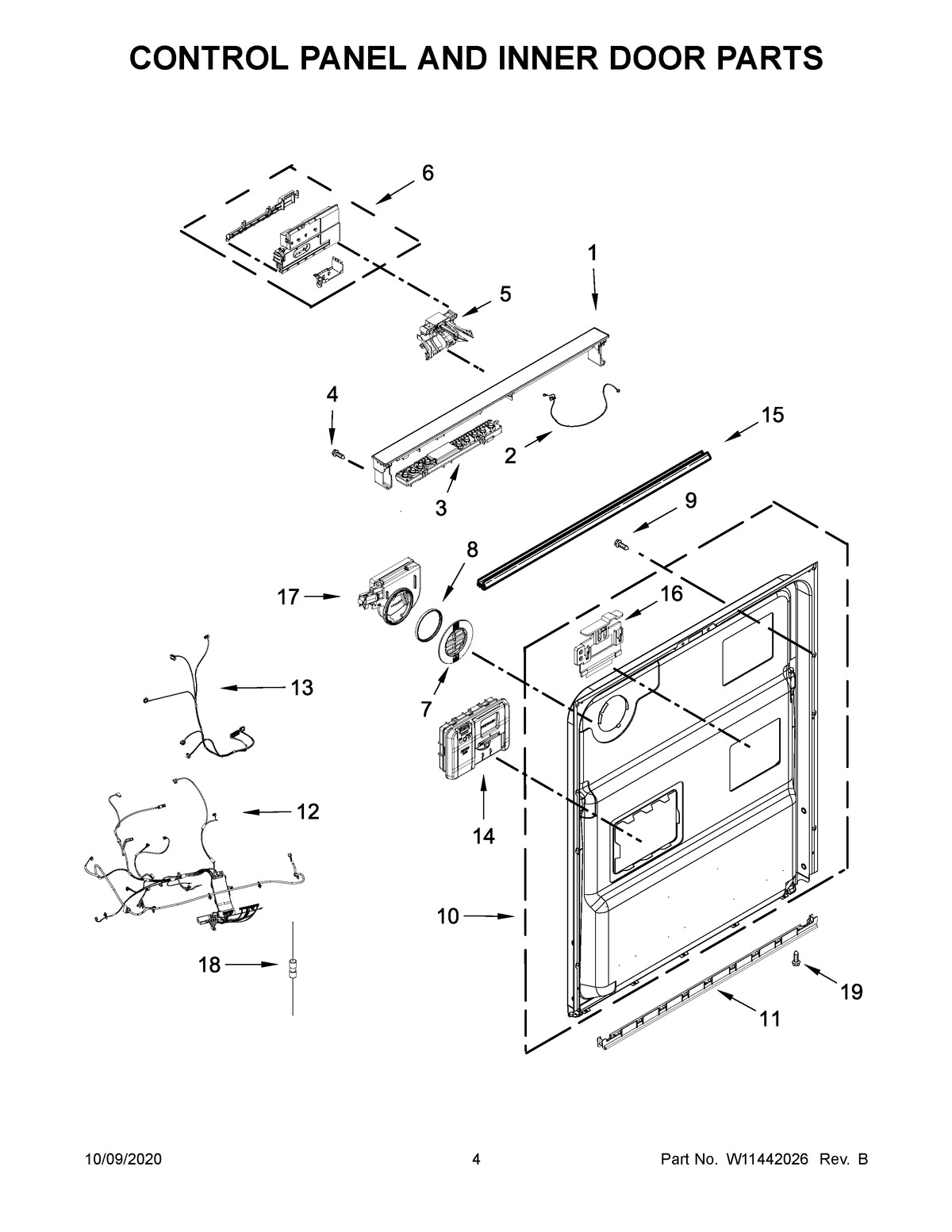

MDB8959SKB0 03 – CONTROL PANEL AND INNER DOOR PARTS

MDB8959SKB0 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

MDB8959SKB0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1ACONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2JUMPER, DOOR
3HOUSING, UI
4SCREW
5LATCH ASSEMBLY (INCLUDES SWITCH)
6CONTROL, ELECTRONIC
7BEZEL, VENT (ALSO ORDER GASKET)
8GASKET, VENT
9SCREW
10INNER DOOR ASSEMBLY
11SEAL, DOOR BOTTOM
12WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
13WIRING HARNESS, INNER DOOR
14DISPENSER ASSEMBLY
15SEAL, CONSOLE/DOOR
16HANGER, CONTROL
17VENT ASSEMBLY (ALSO ORDER GASKET)
18FUSE, IN-LINE
19SCREW
