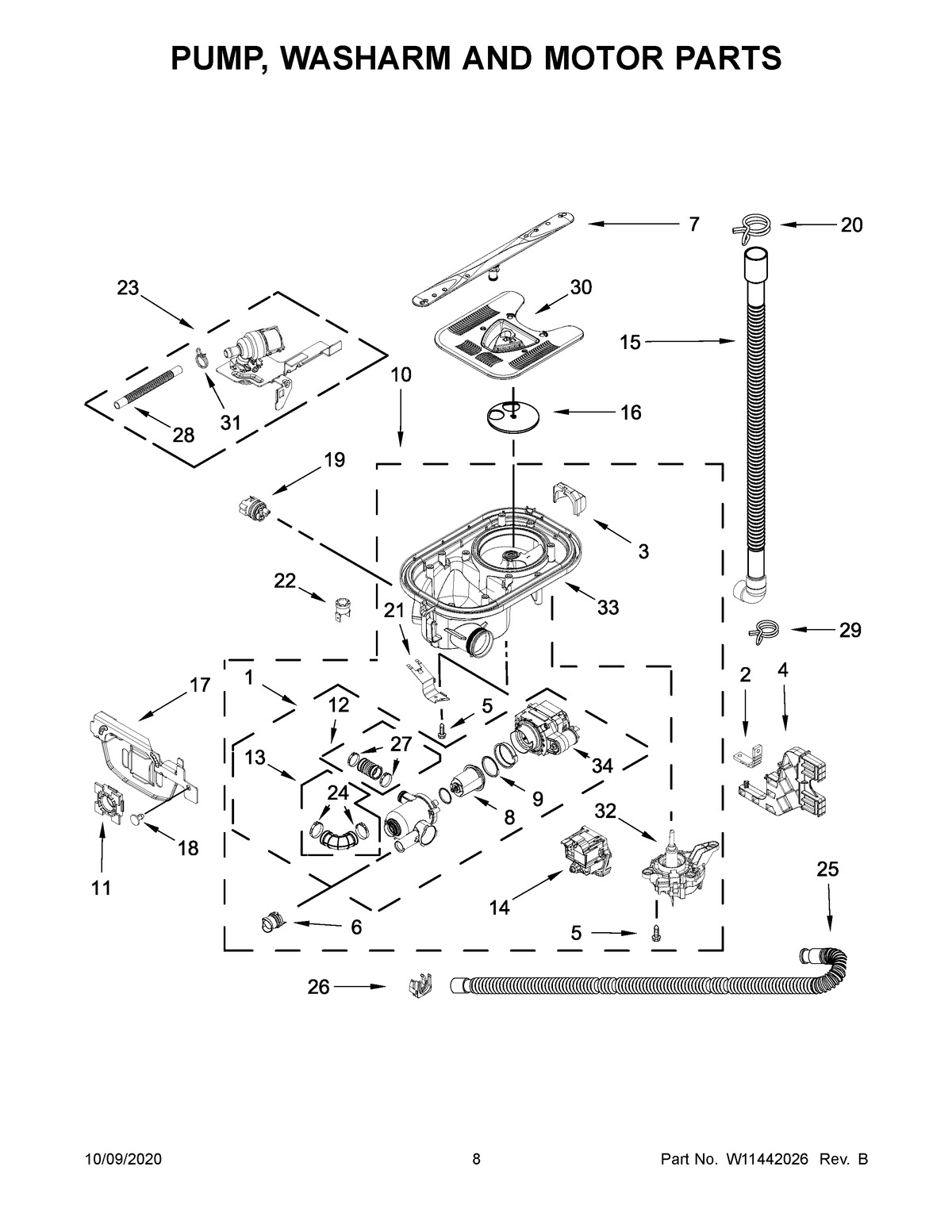

MDB8959SKB0 05 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	PUMP ASSEMBLY
2	ISOLATOR, FRONT MOTOR
3	DIFFUSER, INLET
4	HANGER, FRONT MOTOR
5	MAY 9741232
6	CHECK VALVE, DRAIN
7	WASH ARM ASSEMBLY
8	FILTER ASSEMBLY
9	RING, VOLUTE
10	MOTOR & SUMP ASSEMBLY
11	ISOLATOR, REAR MOTOR
12	HOSE, PRESSURE
13	HOSE, SUCTION
14	MOTOR, DRAIN
15	HOSE, DRAIN
16	DISC, DIVERTER
17	BRACKET, REAR MOTOR
18	FASTENER
19	INDICATOR, OPTICAL WASH
20	MAY 370445
21	BRACKET, THERMOSTAT
22	THERMOSTAT (INCLUDED WITH MAIN WIRING HARNESS)
23	FILL VALVE ASSEMBLY
24	CLAMP, HOSE
25	HOSE
26	CLIP, HOSE
27	CLAMP, HOSE
28	HOSE, INLET
29	CLAMP, HOSE
30	GRATE
31	MAY 371505
32	LINER (NOT A SERVICEABLE PART)
33	SUMP
34	CAPACITOR
