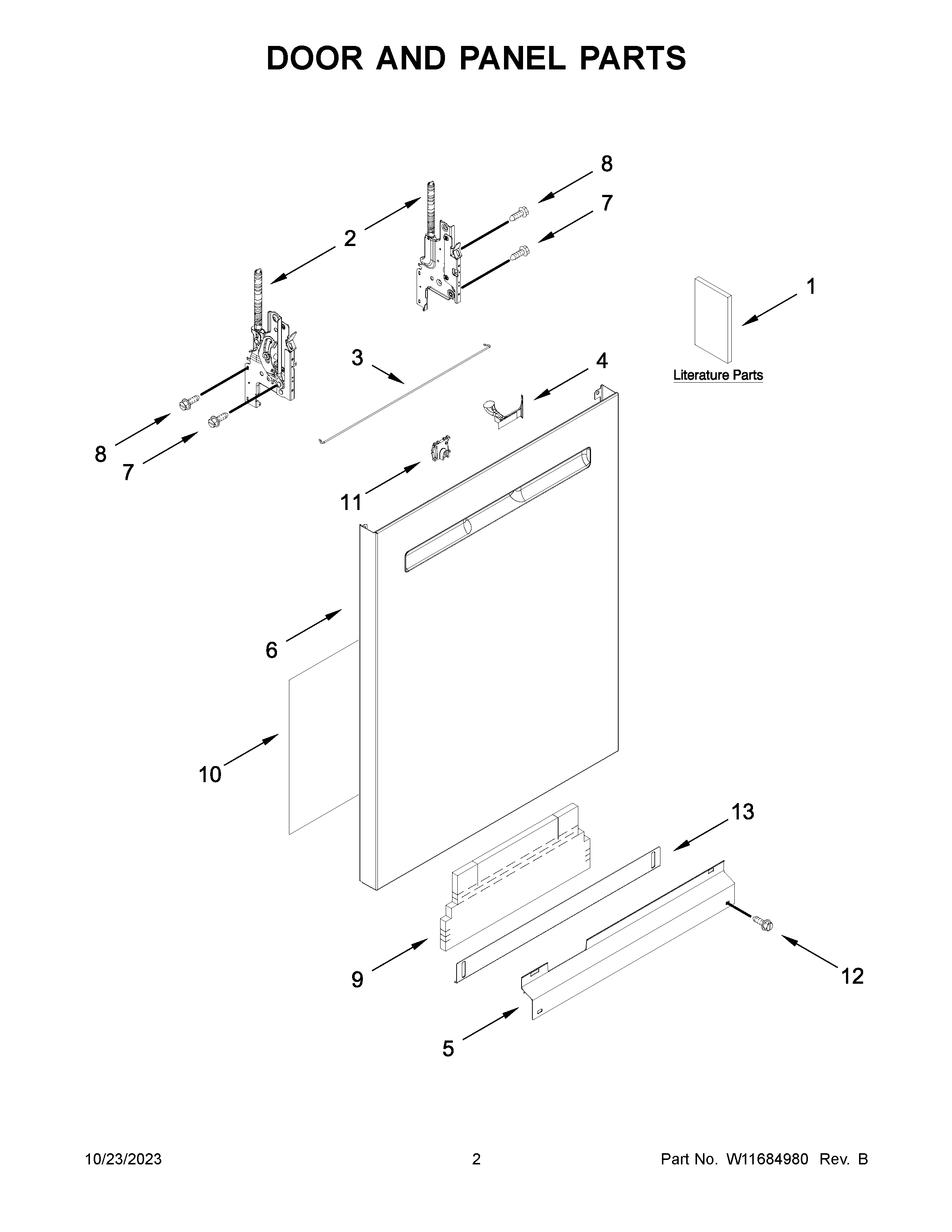

MDB8959SKB2 02 – DOOR AND PANEL PARTS

MDB8959SKB2 02 – DOOR AND PANEL PARTS

Written by

in

MDB8959SKB2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
5AW11110746 Whirlpool Panel
6AW11416777 Whirlpool Panel
6W11416463 Whirlpool Panel
6BW11416783 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W10919861 Whirlpool Insulation Pad
11W10692757 Whirlpool Dishwasher Nut Assembly
12ASCREW
12W11551775 Whirlpool Screw
13W11579528 Whirlpool Toe Panel
13AW11467726 Whirlpool Toe Panel
